| Prod Model: |
KET-DNB |
| Max. Torque (Nm): |
4992-180677 |
| Min. Torque (Nm): |
499-18068 |
| Square Drive (in): |
1-4 |
| Color: |
Customized |
| OEM: |
Yes |
| Name: |
Large Torque Square Drive Hydraulic Torque Wrench |
| Warranty: |
One Year |
| Delivery Time: |
7-15days |
| Hydraulic Power Units: |
Piston Pump |
| Working Pressure: |
700 Bar |
Product Description
Product Description

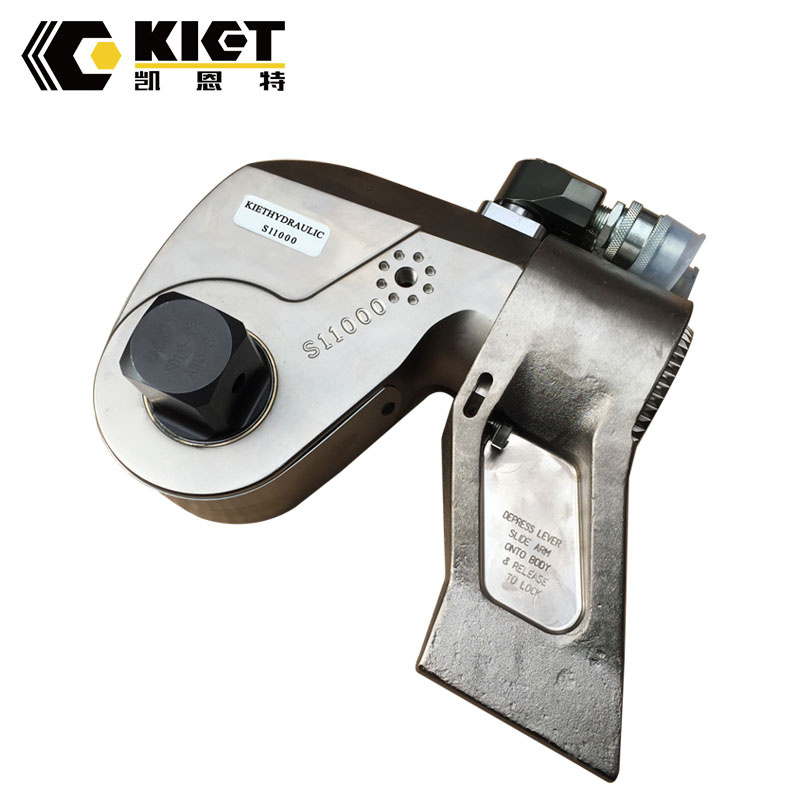

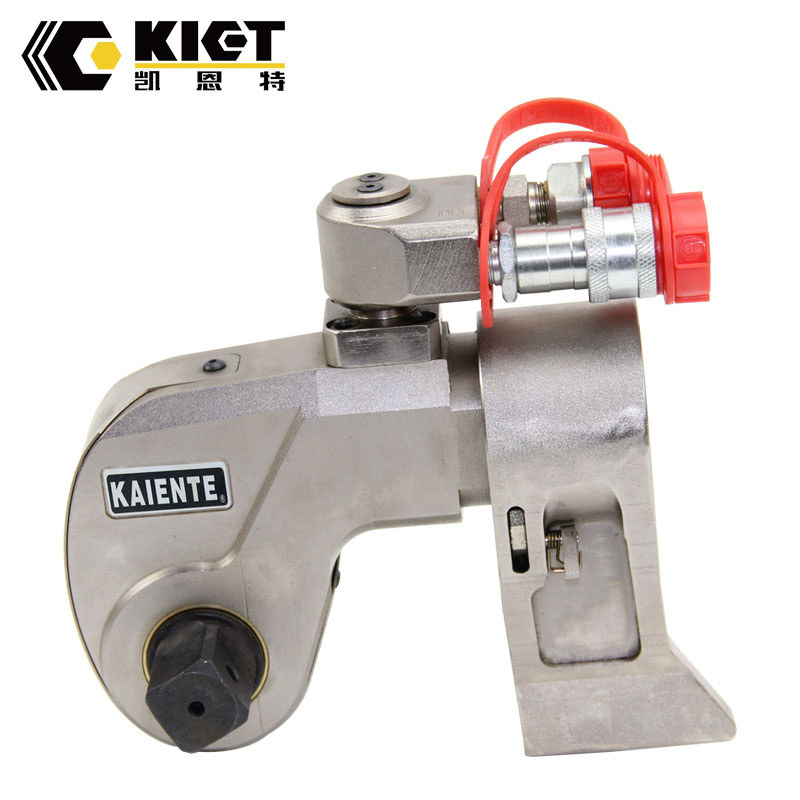

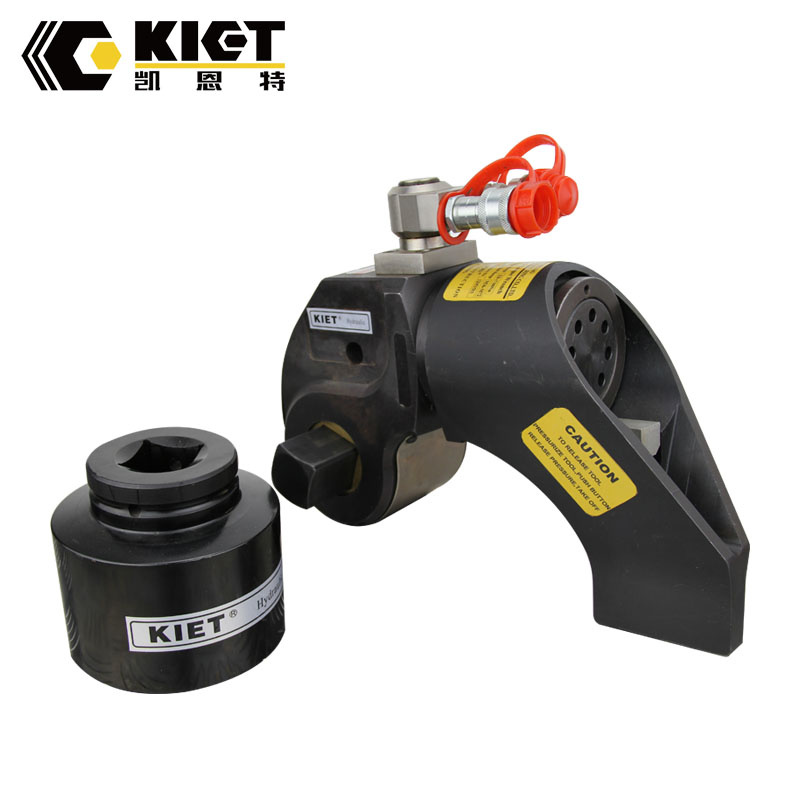

KET-DNB Series Machine Large Torque Square Drive Hydraulic Tool
Large Torque Square Drive Hydraulic Torque Wrench
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product Description:
1. direct push type square drive reversing, simple and quickly
2. High speed, double acting operation
3. High degree of rotation angle
4.360° quick coupling, no space limited
5. High repeatability, with accuracy ± 3%
6. Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7. Few moving parts means durability and low maintenance
8. Push button drive release; No tools needed to reverse square or allen key drives for tighening or loosening
Packaging & Shipping:

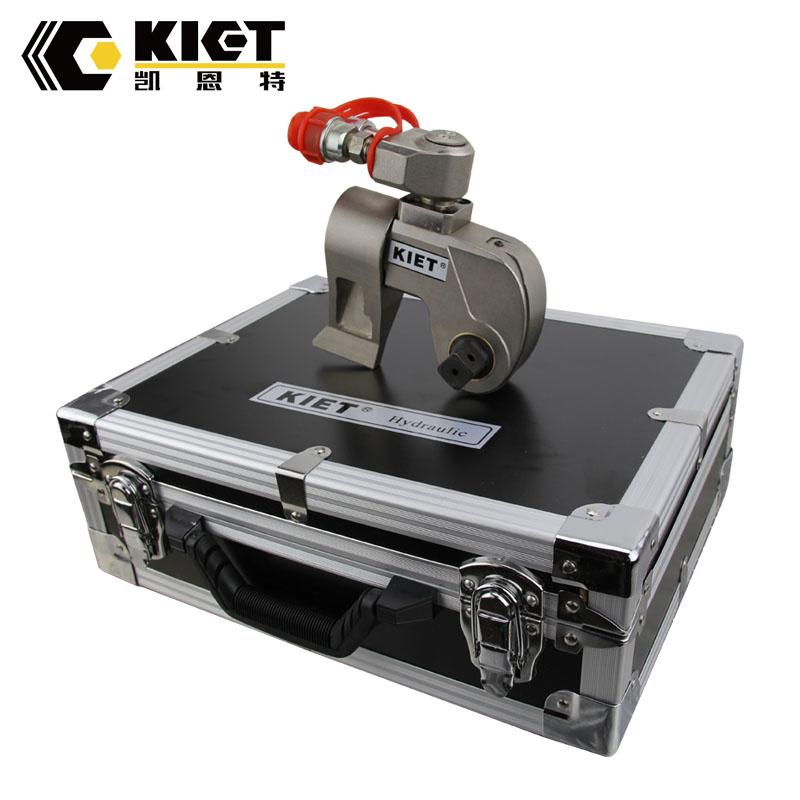

We provide Aluminum Alloy Lightweight Box, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.
Our Service:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Company Information:
Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
We are a manufacturer in tools, such as:
? Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
? Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
? Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
? Hydraulic pumps, manual and electric type (max up to 3000bar);
? Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
? Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
FAQ:
Q1: How can contact sales?
A1: Please call: +86-021-86186688 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
And deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
Shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
Invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.
More Information and questions please contact me as below:
Contact person:Aaron
Mobile number: +86 18052610078
Tel: +86-523-81569666
Web: http://www.chinakiet.com/EN/
Welcome to visit our company
| Model | Max. Torque (Nml | Min. Torque (Nm» | Square Drive (in) | L1 (mm) | L2 (mml | HI (mm) | H2 (mm) | H3 (mm> | R (mm, | Weight (kg) |
| KET-DNB-5 | 4992 | 499 | 1 | 211 | 289 | 204 | 91 | 50 | 35 | 7 |
| KET-DNB.10 | 11775 | 1178 | 1-1/2 | 256 | 355 | 251 | 125 | 69 | 45 | 14 |
| KET-DNB-20 | 19413 | 1941 | 2 | 274 | 389 | 285 | 141 | 78 | 54 | 19 |
| KET-DNB-30 | 38100 | 3810 | 2-1/2 | 329 | 473 | 332 | 174 | 96 | 70 | 37 |
| KET-DNB.50 | 57488 | 5749 | 2-1/2 | 370 | 542 | 382 | 179 | 101 | 80 | 53 |
| KET.DNB.110 | 103670 | 10367 | 3-1/4 | 430 | 624 | 430 | 227 | 124 | 94 | 91 |
| KET-DNB-120 | 120323 | 12032 | 3-1/2 | 447 | 655 | 453 | 240 | 132 | 102 | 122 |
| KET-DNB-180 | 180677 | 18068 | 4 | 505 | 758 | 513 | 270 | 150 | 124 | 175 |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
