| Prod Model: |
KET-DWG Series |
| Product Name: |
Ket-Dwg Series Electric Bending Machine |
| Bend Range: |
22-60mm, 75- 159mm |
| Power Unit: |
Hydraulic Pump, Electrtic Pump |
| Tube Thickness: |
4-10 mm |
| Motor Power: |
0.75 - 2.2 Kw |
| Pipe Diameter: |
1/4"-4" |
| Working Pressure: |
700bar |
| Mould: |
6-9 Sets |
| Tonnage: |
10-30 Ton |
| Weight: |
18-120kg |
Product Description
Ket-Dwg Series Split Type Hydraulic Pipe Bender for SellSpecifications:1. Split design for easy field operation
2. Elbow smooth wrinkle-free
3. Especially suitable for thick-walled steel pipe bending
Product Description:*Split design for easy field operation, elbow smooth wrinkle-free, especially suitable for thick-walled steel pipe bendingcontaining bender, manual pump stations, hydraulic hoses, pipe mold.
*Piston chrome, scratch and corrosion, paint surface impact resistance, corrosion resistance
*Hydraulic Pipe Bender, Manual Type
Parameter:
Model Number | Bend Ranger (mm) | Bend Radius (mm) | Thickness (mm) | Capacity (KN) | Motor Power (KW) |
| KET-DWG-60 | 22-60 | 4 X Radius | ≤ 4 |
| 0.75 |
| 2 pcs Die,2 pcsPin, Bend tires: 22 27 34 42 48 60 |
| KET-DWG-76 | 27-76 | 4 X Radius | ≤ 10 |
| 0.75 |
| 2 pcs Die,2 pcsPin, Bend tires:27 34 42 48 60 76 |
| KET-DWG-108 | 27-108 | 4 X Radius | ≤ 10 |
| 2.2 |
| 2 pcs Die,2 pcsPin, Bend tires: 27 42 48 60 76 89 108 |
| KET-DWG-159 | 76-159 | 4 X Radius | ≤ 10 |
| 2.2 |

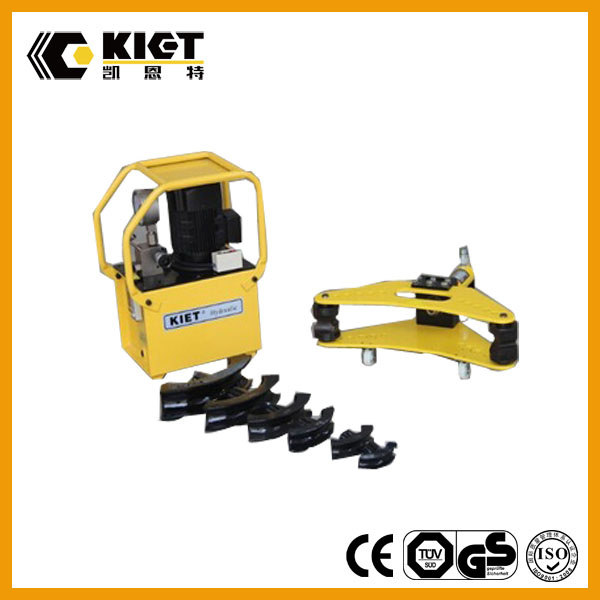

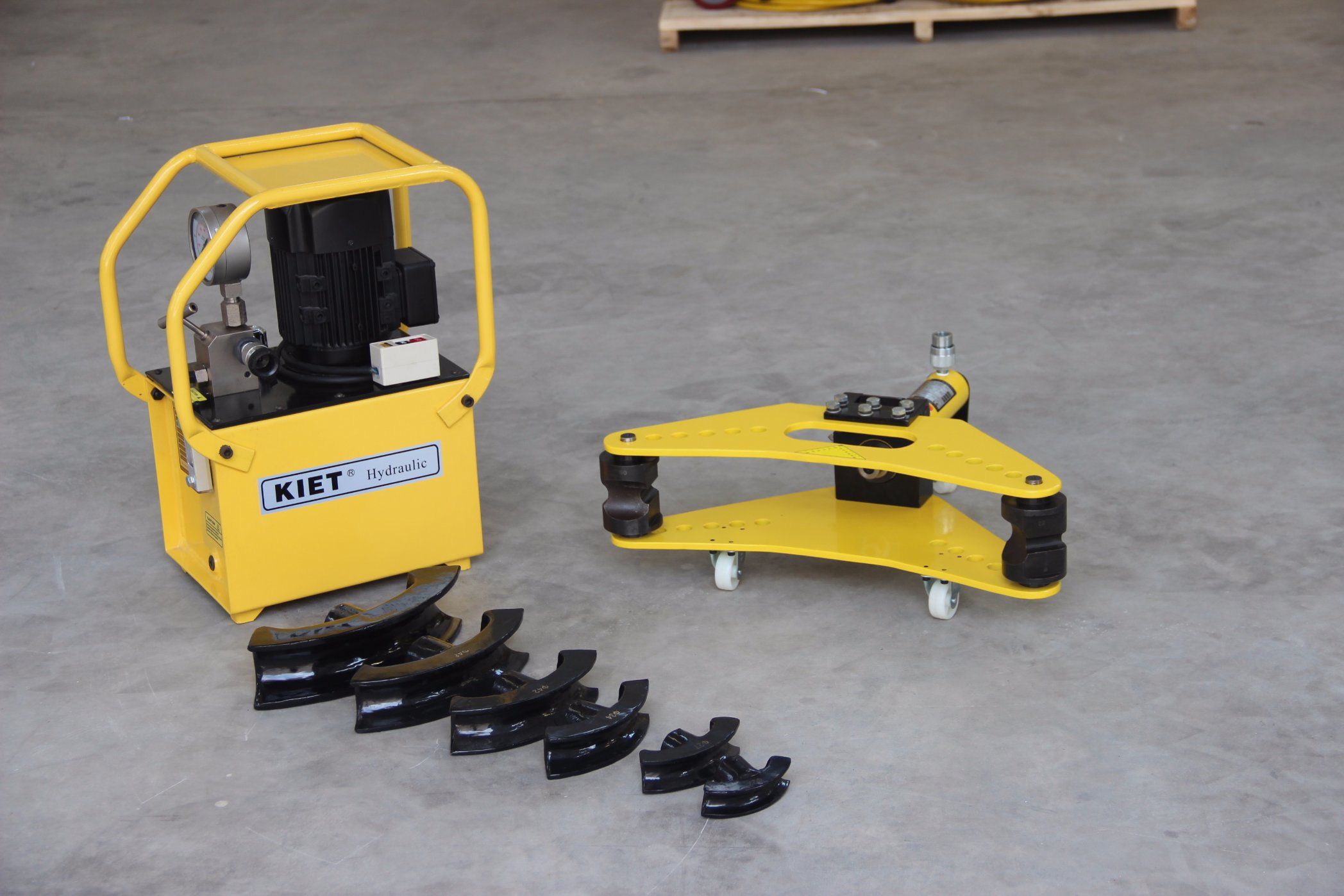

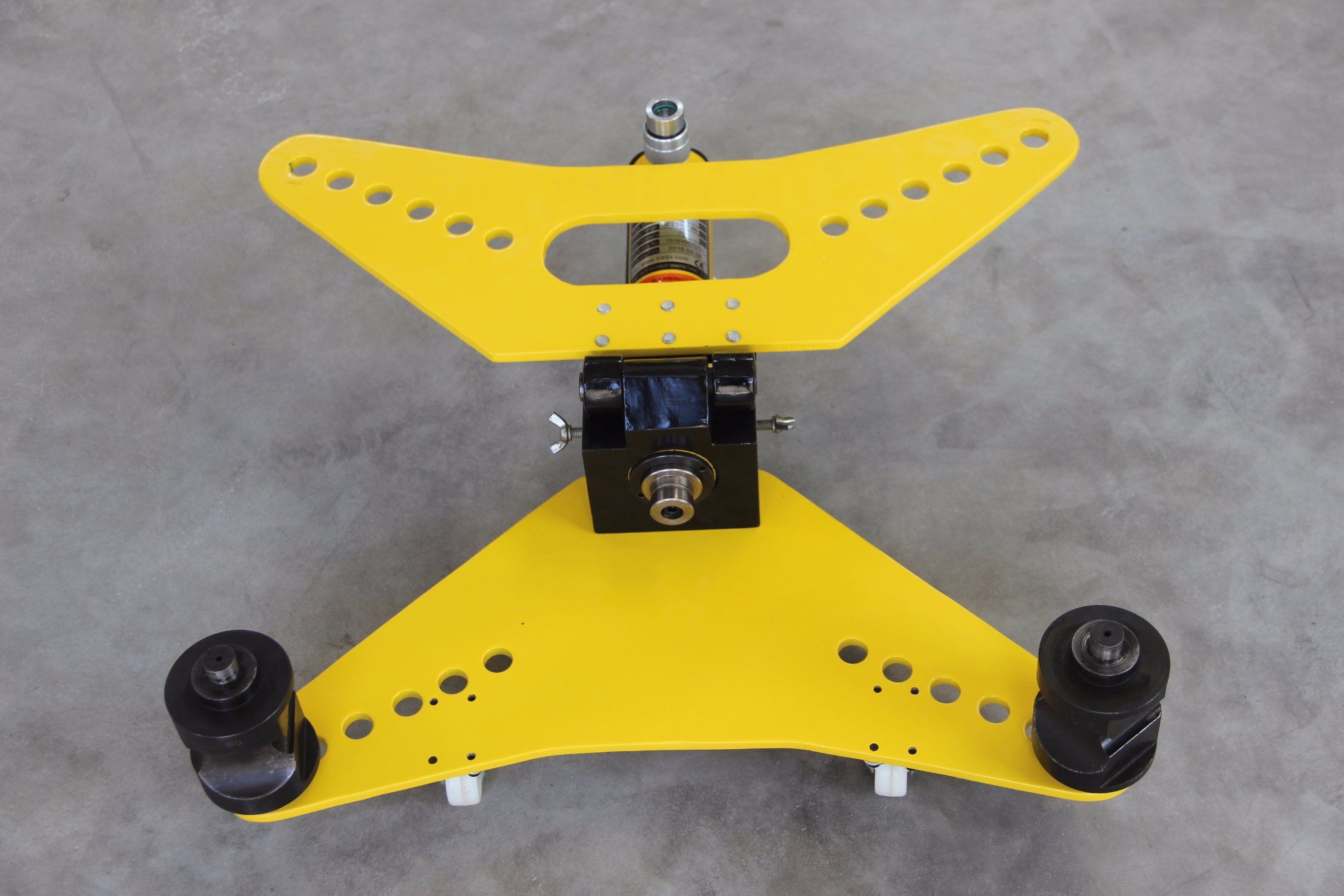

Photos:
