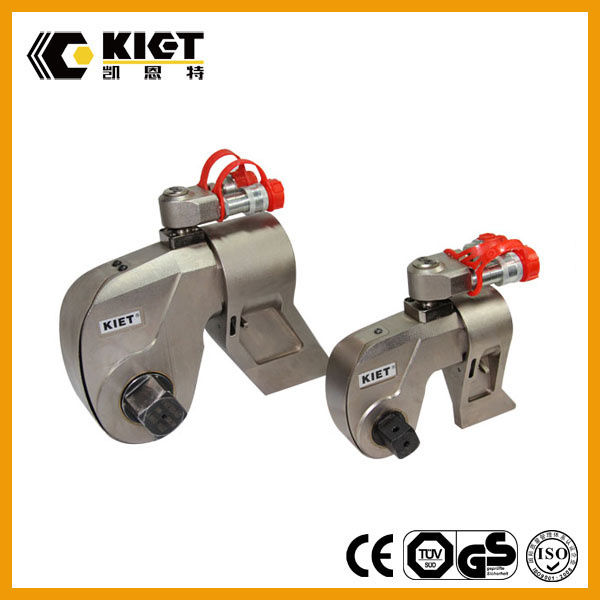

Kiet Hydraulic Steel Square Drive Torque Wrench with Socket

Prod Model:	S-1500-25000
Socket Size:	16~36mm
Square Drive:	3/4
Optional Socket Size:	24~55mm
Working Pressure:	70MPa
Max. Torque @70MPa:	1898~34014nm
Material:	Steel
Color:	Primary Colours
Payment:	T/T
Hydraulic Motor:	Piston Hydraulic Motor
Hydraulic Control Unit:	Check Valve

Product Description

Product Description

                              Kiet Hydraulic Steel Square Drive Torque Wrench with Socket

Jiangsu Canete Machinery Manufacturing Co.,Ltd

1. 360 degree plug-in, a plurality of position of the support reaction arm
2. The driving using the button is released, can be quickly switched fastening anddisassembly state, the cylinder and the power head
3. The shape of small, light weight, compact structure, operating radius is small,suitable for application occasions with small space
4.The fine tooth design to prevent locking ratchet teeth
5. It has the advantages of compact structure, high strength integral design to ensure         operating radius is very small
6. The lightweight, ergonomic design, convenient operation, even in the use ofspace constrained occasions is Convenient
7. The best strength to weight ratio and torque to weight ratio
8. The single operating nut angle, cylinder rapid return, high work efficiency
9. The all hydraulic wrench surface after nickel plating has good anticorrosion performance The minimum number of moving parts
10. It is simple, convenient maintenance, no need of special tool.
11. The constant torque output to wrench the whole reverse the process provides high    accuracy
12. The wrench single big rotation angle and quick return
13. The reaction in a straight line, reduce the internal torque, improve the accuracy of


Packaging & Shipping:

We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.

Our Service:

KIET provide one year guarantee  for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.

Brief introduction of Kiet:

Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

We are a manufacturer in Hydraulic tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


Model	Optional Socket Size		Square Drive(In)	Max Nm under 700bar	Socket size
	mm	inch			mm	inch
KT-S-1500	16-36	1 1/16-2	3/4"	1898 Nm    1400 ft.lbs	16-36	5/8-1 1/4
KT-S-3000	22-65	1 1/16-2 3/4	1	4339 Nm      3200 ft.lbs	17-32	5/8-1 3/4
KT-S-6000	27-56	1 5/8-3 1/8	1 1/2"	8144 Nm       6010 ft.lbs	17-32	1-2
KT-S-11000	36-72	2 3/16-4 1/8	1 1/2"	14914 Nm     11000 ft.lbs	30-46	1 3/8-2 3/4
KT-S-25000	42-95	2 9/16-5	2 1/2"	34079 Nm     2514 0 ft.lbs	36-85	1 5/8 -3 1/4
