| Prod Model: |
KET-DJTB |
| Name: |
PLC Multi-Point Alternation Lifting System |
| Control: |
Remote Control |
| Color: |
Costomized |
| Pressure: |
700 Bar |
| Lifting Type: |
2 |
| Operation Mode: |
Electric Motor |
| Warranty: |
One Year |
| OEM: |
Yes |
| Voltage: |
380V |
| Motor Power(Kw): |
5.5 |
| Structure: |
Axial Plunger Pump |
| Cylinder Number: |
Single Cylinder |
| Drive Mode: |
Hydraulic Driven Reciprocating Pump |
| Pump Shaft Position: |
Vertical |
| Type: |
Radial |
| Power: |
Hydraulic |
Product Description
Product Description
Kiet PLC Multi-Point Alternation Lifting Hydraulic Control System
Through accumulated experience for many years in the field of hydraulic synchronization technology, from the point of view of safety and construction period of the construction site, on the basis of the ordinary frequency conversion control system, our company has successfully developed the high intelligent PLC alternation control system. The system has multi-point conventional synchronous jacking control function, multi-point bit alternation synchronous jacking control function, multi-point space three-dimensional adjustment control function, multi-point and other proportional slope lifting control function.

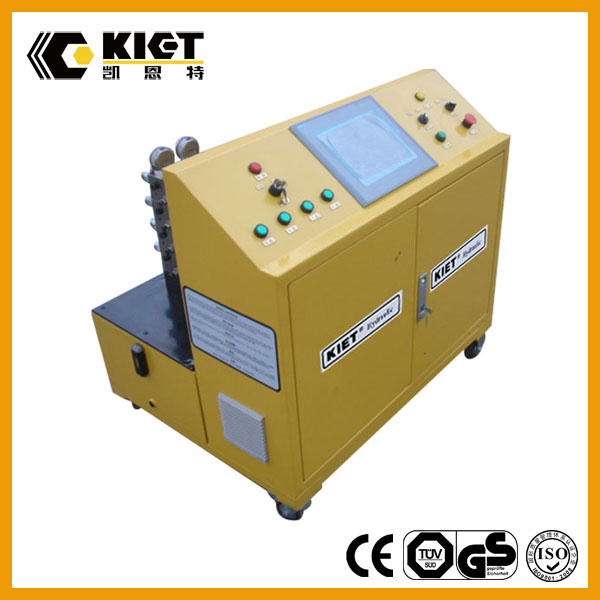

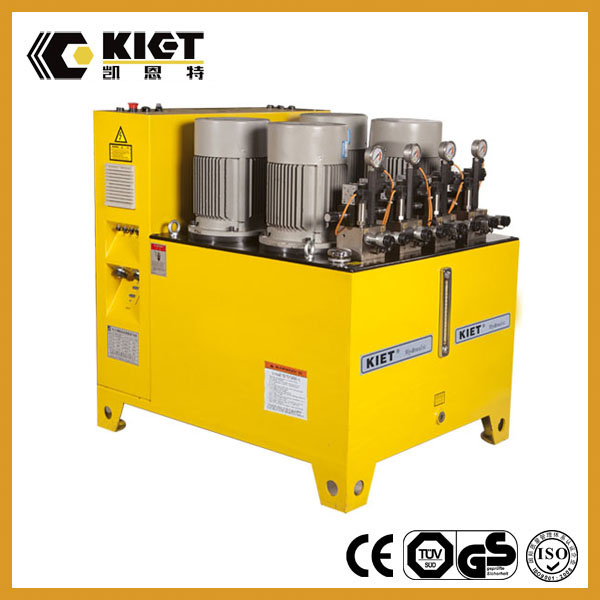

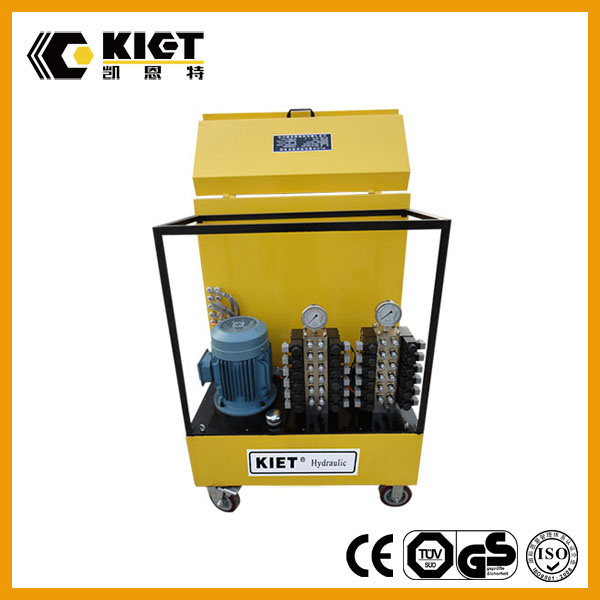

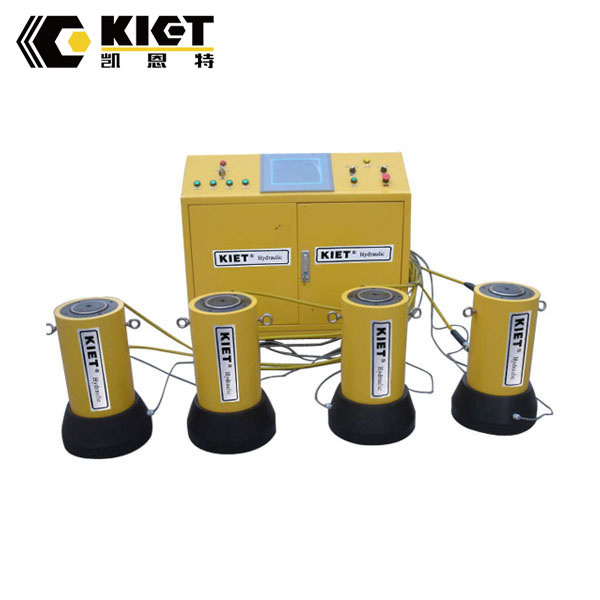

Pictures
Technical Parameters
Power Supply: AC380V/50Hz ( 3 Phase).
Control supply: DC24V.
System pressure: high pressure 70MPa, low pressure 20MPa. System flow: high pressure 4L / Min, low pressure 7.9L / Min. Motor power: 5.5KW * 2, 3KW * 2.
Display accuracy: 1%.
Control accuracy:±0.3mm.
Control Mode: Frequency conversion.
Operating Interface: Human-computer interface.
Alarm device: Alarm lamp.
Pressure sensor: Input DC24V, Rang 0-70Mpa, Output 4-20mA.
Stroke sensor: Input DC24V, Rang 0-1000mm, Push-pull output (A, B phase).
| Model | Points | Control Accuracy (mm) | Motor power (KW) | Voltage (AC/V) | System Pressure (Mpa) | High Pressure Flow(L/min) | Low Pressure Flow(L/min) |
| KET-DJTB-2 | 2 | ≤±0.3 | 5.5 | 380 | 70 | 4 | 7.9 |
Our Service:
KIET provide one year guarantee for all the hydraulic tools. We promise if there is any dysfunction of the hydraulic tools during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Packaging & Shipping:
We provide wooden packing for each Lifting Hydraulic Control System, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.
Company Information:
Jiangsu Canete Machinery Manufacturing Co., Ltd.Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
