| Prod Model: |
1MXTA-35MXTA |
| Torque Range: |
183-1837nm |
| Driving Square: |
3/4 |
| Working Pressure: |
70MPa |
| Color: |
Silver |
| Material: |
Titanium Alloy |
| Weight: |
2~43kg |
| Hydraulic Actuator: |
Hydraulic Cylinder Piston |
| Hydraulic Control Unit: |
Check Valve |
| Delivery Time: |
7-15days |
| Hydraulic Fluid: |
Synthetic Hydraulic Oil |
Product Description
Product Description

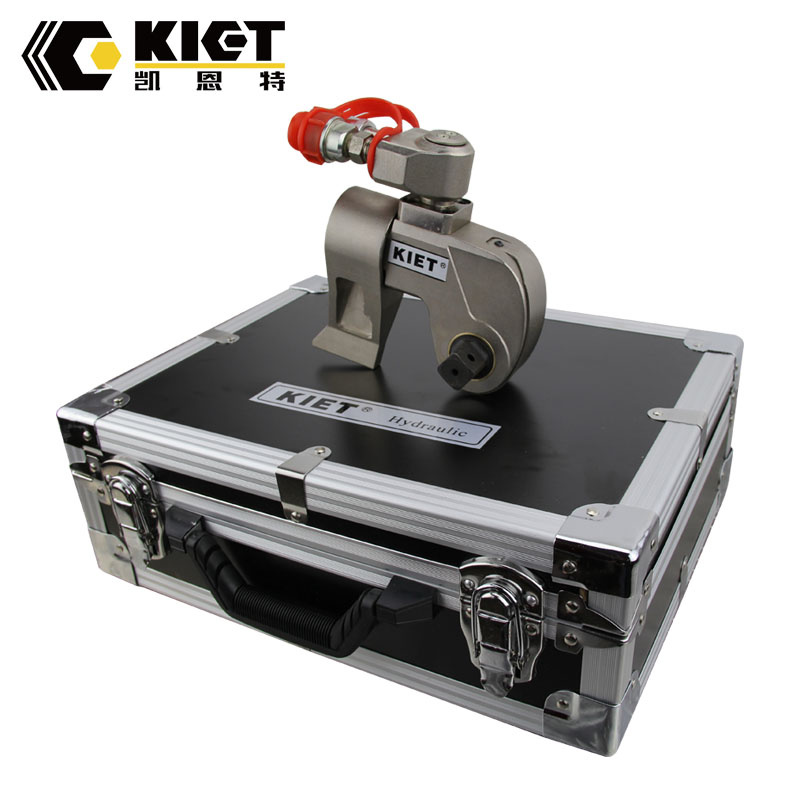

Kiet Square Drive Hydraulic Torque Wrench for Machine
Product Features:
1.Planted integrated body design, more sturdy and durables.
2.Rotary-return mechanism design, never-jam mechanism.
3.Hands-free operation, making the use more safety.
4.Slim nose radius and 360°× 180° swivel hose coonection allow easier positioning in confined space.
5.High repeatability, with accuracy ±3%.
6.360° reaction arm, makes the wrench get better supporting.
7.Standard working pressure: 70MPa.
Field Application:
1.Assembly of wind turbine hub.
2.Bolt tightening of high pressure pipe flange in steel plant.
3.Bolt disassembly of turbine in thermal power plant.
Packaging & Shipping:
We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
Our Service:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Brief introduction of Kiet:
Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Parameters:
| Model | Driving Square
(in) | Torque Range
(Nm) | Weight
(T) |
| KET-1MXTA | 3/4 | 183-1837 | 2 |
| KET-3MXTA | 1 | 451-4512 | 4.4 |
| KET-5MXTA | 1-1/2 | 752-7528 | 7.5 |
| KET-8MXTA | 1-1/2 | 1078-10780 | 9 |
| KET-10MXTA | 1-1/2 | 1551-15516 | 13 |
| KET-20MXTA | 1-1/2 | 2666-26664 | 23 |
| KET-25MXTA | 1-1/2 | 3472-34725 | 31 |
| KET-35MXTA | 1-1/2 | 4866-48666 | 43 |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
