| Hole Dia 130mm: |
Depth 30m |
| Hole Dia 65mm: |
Depth 40m |
| Pneumatic Pressure(MPa): |
0.5~1.2 |
| Top-Head Speed(R/Min): |
35 |
| Top-Head Torque(N.M): |
1027 |
| Max Pull Force(N): |
24000 |
| Max Feed Force(N): |
22000 |
| Max Stroke(mm): |
1200 |
| Angle Range: |
90 |
| Power Unit(Electric Motor): |
4 Kw |
Product Description
2. Technical Specification:
| drilling capacity | hole dia 65mm,depth 40m |
| hole dia 130mm,depth 30m |
| pneumatic pressure(Mpa) | 0.5~1.2 |
| top-head speed(r/min) | 35 |
| top-head torque(N.m) | 1027 |
| max pull force(N) | 24000 |
| max feed force(N) | 22000 |
| max stroke(mm) | 1200 |
| angle range | 90 |
| overal dimension of drill body(L*W*H)mm/weight(kg) | 2000*805*646/295 |
| dimension of operation desk(L*W*H)mm/weight(kg) | 636*430*700/25 |
| Power unit(electric motor) | model | Y112M-4 |
| power(kw) | 4 |
| speed(r/min) | 1440 |
3. Application and Feature:

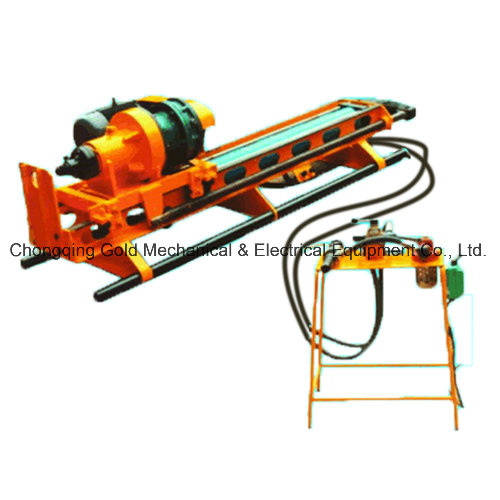

MGQ-30 hydraulic anchoring drilling rig is mainly used in treating the disaster of landslide,rockslide so on,also used in rock anchoring,anchoring bar,strengthening retainingwll,supporting in deep foundation pit,mini-pile hole drilling,hydrography well drilling and high pressure jet-grouting for hydroelectric powerstation,communication,energy and capital construction.
