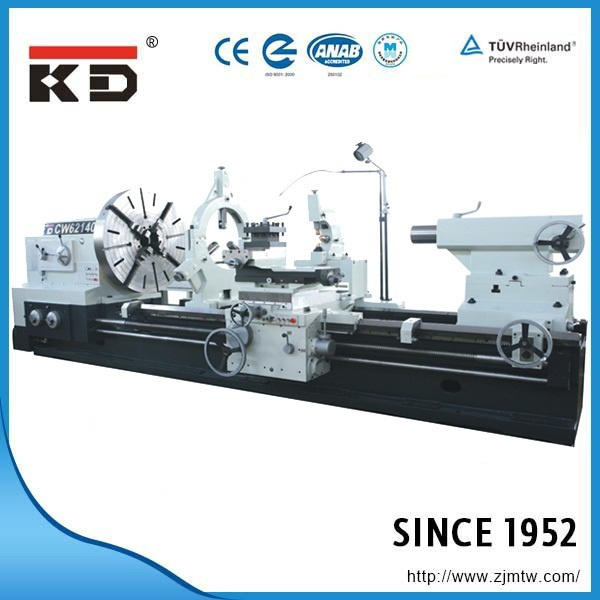

Large Size Big Bore Conventional Lathe Machine (CW-61140C)

Name: Large Size Big Bore Conventional Lathe Machine (CW-61140C)
Brand: tool-buy.com
SKU: 755896505
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 30000-50000SET
Trade Terms:	FOB,CIF
Min Order:	1SET
Pay Type:	T/T

Contact Supplier

Zhejiang Kaida Machine Tool Co., Ltd.

Showroom Product Company Profile

Prod Model:	CW-61140C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	130mm
Max Swing Over Bed:	1000mm-1400mm
Bed Width:	755mm
Motor:	22kw
Spindle Speed:	2.5-250r/Min
Maximum Turned Length:	11.85
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Manual
Setting Mode:	Floor-type
Precision:	Normal Precision
Processing Accessory:	Chuck Center
Tool Holder:	4 Way Tool Post

Product Description

PRODUCT FEATURES:
The surface of the bedways is supersonic frequency handened.
The spindle system is high in rigitidy and accuracy.
Rapid feed structure is available on Apron.
Clutch in headstock makes the lathe start.

Standard accessories:
ø 1000 4jaw chuck
Centers M. T. No 6
Wrenches
Morse reduction Metric 80/M. T. NO. 6
Morse reduction Metric 140/M. T. NO. 6
Operation manual

Extra accessories
ø 1250 4jaw chuck
Follow rest
Steady rest

ITEMS	CW61100C/ CW62100C	CW61125C / CW62125C		CW61140C/ CW62140C
Max. swing over bed	Ø 1000 mm	Ø 1250 mm		Ø 1400v
Max. swing over carriage	Ø 600 mm	Ø 865 mm		Ø 1015 mm
*Over gap	Ø 1380 mm	Ø 1750 mm		Ø 1900 mm
Width of bed	755mm
*Effective length of gap	590mm
Max. length of work piece(two centers)	1.5/2/3/4/5/6/8/10/12 m
Max. turning length	1.35/1.85/2.85/3.85/4.85/5.85/7.85/9.85/11.85
Max. Weight of work piece(between centers)	5000Kg
Spindle nose	A2-15
Spindle bore	Ø 130 mm
Cone hole diameter and taper of spindle hole	Metric Φ 140 1: 20
Number of speeds	24(Normal)12(Reverse)
Spindle speed scope	2.5~250r/min
Pitch of longitudinal ball screw/diameter	12mm/ Ø 70mm
Number of cross feeds	97
Feed range of tool post for per rev. of spindle(Longitudinal)	0.1~12mm/r
Feed range of tool post for per rev. of spindle(Cross)	0.05~6mm/r
Feed range of tool post for per rev. of spindle(middle tool post)	0.025~3mm/r
Rapid feed for Axis Z	3740mm/ minute
Rapid feed for Axis X	1870mm/ minute
Rapid feed for Axis middle tool post	935mm/ minute
Thread cutting for Metric pitch threads(range/no. )	1~120mm/45
Thread cutting for Whit-worth pitch threads(range/no. )	30~1/4 TPI/42
Thread cutting for Module threads(range/no. )	0.5~60mm/46
Thread cutting for D. P. threads(range/no. )	1/2~60 DP/48
Vertical distance from spindle center to installing basis	41 mm		51 mm
Size of tool shank	40× 40mm		50× 50mm
Max. travel of cross slide	720mm
Swing angle of tool post	± 90°
Max. travel of middle tool post	400 mm
Max. travel of top slide	200 mm
Tailstock taper of bore	Metric 80
Tailstock sleeve travel	300mm
Tailstock sleeve dia.	Ø 160mm
Power of main motor	22 KW
Rapid feed motor power	1.5 KW
Power of cooling pump	0.25 KW
3m Overall dimensions(L× W× H)	6000× 1860× 1700 mm	6000× 1860× 1825 mm		6000× 1860× 1900 mm
Net weight(3m)	11200 Kg	12000 Kg		12500 Kg
Note: The items with " *" are only for 62 series. For each additional machine length of 1m, there will be additional net weight of 1100kg

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
