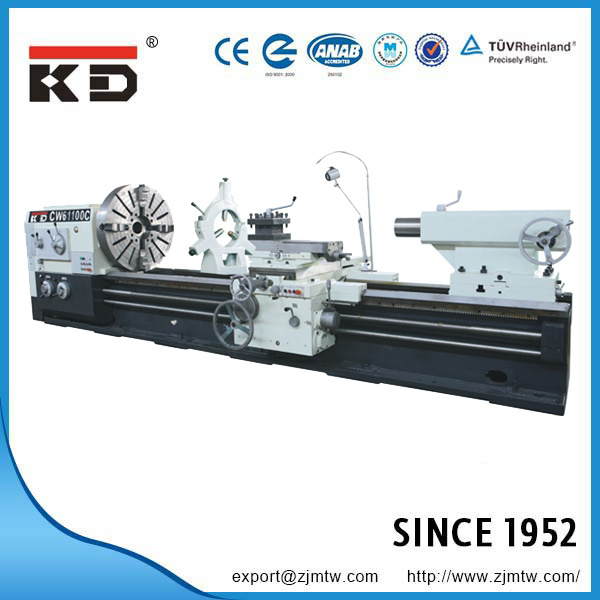

| Price: | US $ 20000-100000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T |
| Prod Model: | CW62100C/5000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bed Width: | 755mm |
| Spindle Bore: | 130mm |
| Max Swing Over Bed: | 1000mm |
| 4-Jaw Chuck Size: | 1000mm |
| Motor Power: | 22kw |
| Max. Length: | 5000mm |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Setting Mode: | Floor-type |
| Precision: | Normal Precision |
ITEMS | CW61100C/ CW62100C | CW61125C /CW62125C | CW61140C/ CW62140C | |
Max. swing over bed | Ø1000 mm | Ø1250 mm | Ø1400v | |
Max. swing over carriage | Ø600 mm | Ø 865 mm | Ø1015 mm | |
*Over gap | Ø1380 mm | Ø 1750 mm | Ø 1900 mm | |
Width of bed | 755mm | |||
*Effective length of gap | 590mm | |||
Max. length of work piece(two centers) | 1.5/2/3/4/5/6/8/10/12 m | |||
Max. turning length | 1.35/1.85/2.85/3.85/4.85/5.85/7.85/9.85/11.85 | |||
Max. Weight of work piece(between centers) | 5000Kg | |||
Spindle nose | A2-15 | |||
Spindle bore | Ø 130 mm | |||
Cone hole diameter and taper of spindle hole | Metric Φ140 1:20 | |||
Number of speeds | 24(Normal)12(Reverse) | |||
Spindle speed scope | 2.5~250r/min | |||
Pitch of longitudinal ball screw/diameter | 12mm/ Ø70mm | |||
Number of cross feeds | 97 | |||
Feed range of tool post for per rev. of spindle(Longitudinal) | 0.1~12mm/r | |||
Feed range of tool post for per rev. of spindle(Cross) | 0.05~6mm/r | |||
Feed range of tool post for per rev. of spindle(middle tool post) | 0.025~3mm/r | |||
Rapid feed for Axis Z | 3740mm/minute | |||
Rapid feed for Axis X | 1870mm/minute | |||
Rapid feed for Axis middle tool post | 935mm/minute | |||
Thread cutting for Metric pitch threads(range/no.) | 1~120mm/45 | |||
Thread cutting for Whit-worth pitch threads(range/no.) | 30~1/4 TPI/42 | |||
Thread cutting for Module threads(range/no.) | 0.5~60mm/46 | |||
Thread cutting for D.P. threads(range/no.) | 1/2~60 DP/48 | |||
Vertical distance from spindle center to installing basis | 41 mm | 51 mm | ||
Size of tool shank | 40×40mm | 50×50mm | ||
Max. travel of cross slide | 720 | |||
Swing angle of tool post | ±90° | |||
Max. travel of middle tool post | 400 mm | |||
Max. travel of top slide | 200 mm | |||
Tailstock taper of bore | Metric 80 | |||
Tailstock sleeve travel | 300mm | |||
Tailstock sleeve dia. | Ø 160mm | |||
Power of main motor | 22 KW | |||
Rapid feed motor power | 1.5 KW | |||
Power of cooling pump | 0.25 KW | |||
3m Overall dimensions(L×W×H) | 6000×1860×1700 mm | 6000×1860×1825 mm | 6000×1860×1900 mm | |
Net weight(3m) | 11200 Kg | 12000 Kg | 12500 Kg | |
Note : The items with "*" are only for 62 series. For each additional machine length of 1m, there will be additional net weight of 1100kg | ||||
