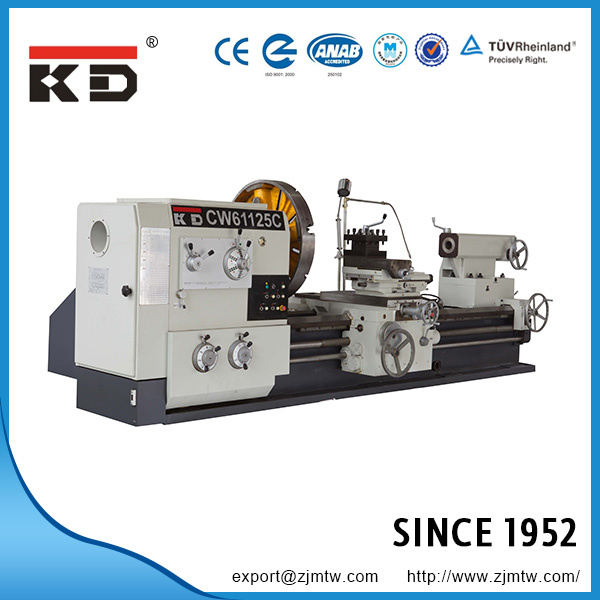

Prod Model: |
CW62140C/3000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Bed Width: |
755mm |
Spindle Bore: |
130mm |
Max Swing Over Bed: |
1400mm |
4-Jaw Chuck Size: |
1000mm |
Motor Power: |
22kw |
Max. Length: |
3000mm |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Setting Mode: |
Floor-type |
Precision: |
Normal Precision |
Product Description
SPECIFICATIONS:
ITEMS | CW61100C/ CW62100C | CW61125C /CW62125C | CW61140C/ CW62140C |
Max. swing over bed | Ø1000 mm | Ø1250 mm | Ø1400v |
Max. swing over carriage | Ø600 mm | Ø 865 mm | Ø1015 mm |
*Over gap | Ø1380 mm | Ø 1750 mm | Ø 1900 mm |
Width of bed | 755mm |
*Effective length of gap | 590mm |
Max. length of work piece(two centers) | 1.5/2/3/4/5/6/8/10/12 m |
Max. turning length | 1.35/1.85/2.85/3.85/4.85/5.85/7.85/9.85/11.85 |
Max. Weight of work piece(between centers) | 5000Kg |
Spindle nose | A2-15 |
Spindle bore | Ø 130 mm |
Cone hole diameter and taper of spindle hole | Metric Φ140 1:20 |
Number of speeds | 24(Normal)12(Reverse) |
Spindle speed scope | 2.5~250r/min |
Pitch of longitudinal ball screw/diameter | 12mm/ Ø70mm |
Number of cross feeds | 97 |
Feed range of tool post for per rev. of spindle(Longitudinal) | 0.1~12mm/r |
Feed range of tool post for per rev. of spindle(Cross) | 0.05~6mm/r |
Feed range of tool post for per rev. of spindle(middle tool post) | 0.025~3mm/r |
Rapid feed for Axis Z | 3740mm/minute |
Rapid feed for Axis X | 1870mm/minute |
Rapid feed for Axis middle tool post | 935mm/minute |
Thread cutting for Metric pitch threads(range/no.) | 1~120mm/45 |
Thread cutting for Whit-worth pitch threads(range/no.) | 30~1/4 TPI/42 |
Thread cutting for Module threads(range/no.) | 0.5~60mm/46 |
Thread cutting for D.P. threads(range/no.) | 1/2~60 DP/48 |
Vertical distance from spindle center to installing basis | 41 mm | 51 mm |
Size of tool shank | 40×40mm | 50×50mm |
Max. travel of cross slide | 720 |
Swing angle of tool post | ±90° |
Max. travel of middle tool post | 400 mm |
Max. travel of top slide | 200 mm |
Tailstock taper of bore | Metric 80 |
Tailstock sleeve travel | 300mm |
Tailstock sleeve dia. | Ø 160mm |
Power of main motor | 22 KW |
Rapid feed motor power | 1.5 KW |
Power of cooling pump | 0.25 KW |
3m Overall dimensions(L×W×H) | 6000×1860×1700 mm | 6000×1860×1825 mm | 6000×1860×1900 mm |
Net weight(3m) | 11200 Kg | 12000 Kg | 12500 Kg |
Note : The items with "*" are only for 62 series. For each additional machine length of 1m, there will be additional net weight of 1100kg |
PRODUCT FEATURES:
The surface of the bedways is supersonic frequency handened.
The spindle system is high in rigitidy and accuracy.
Rapid feed structure is available on Apron.
Clutch in headstock makes the lathe start.
Standard accessories:
Ø 1000 4jaw chuck
Centers M.T.No 6
Wrenches
Morse reduction Metric 80/M.T.NO.6
Morse reduction Metric 140/M.T.NO.6
Operation manual
Extra accessories
Ø 1250 4jaw chuck
Follow rest
Steady rest
