| Prod Model: |
KET-DNB |
| Product Name: |
Large Torque Square Driven Hydraulic Torque Wrench |
| Material: |
Aerospace Material, Aluminum and Titanium |
| Max. Torque: |
4992nm-180677nm |
| Min. Torque: |
499nm-180668nm |
| Weight: |
7kg-175kg |
| Certificate: |
ISO |
| Stock: |
Yes |
| Terms Of Payment: |
T/T |
| Warranty: |
1 Year |
Product Description

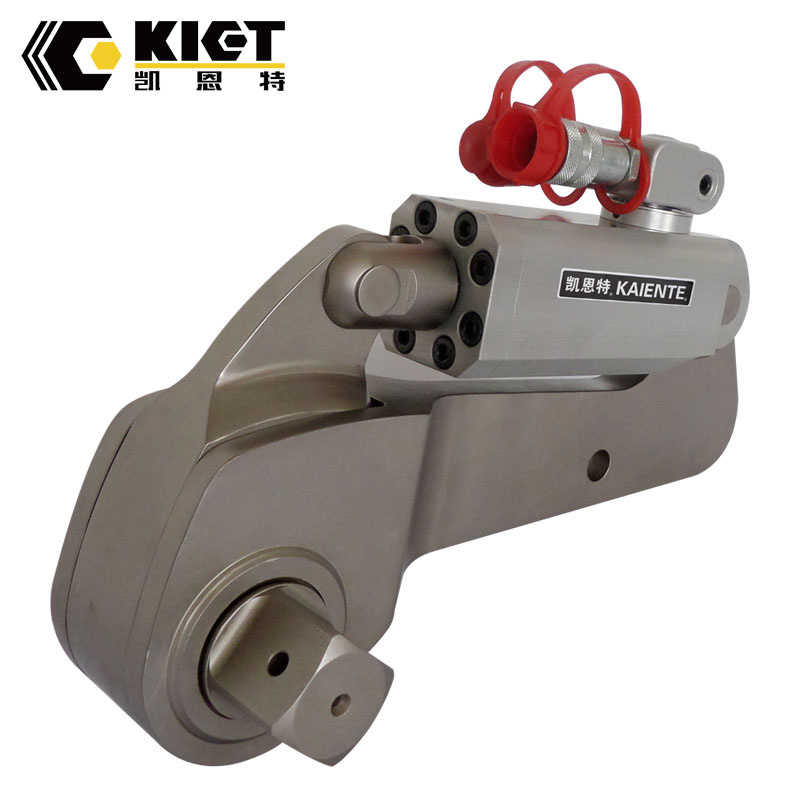

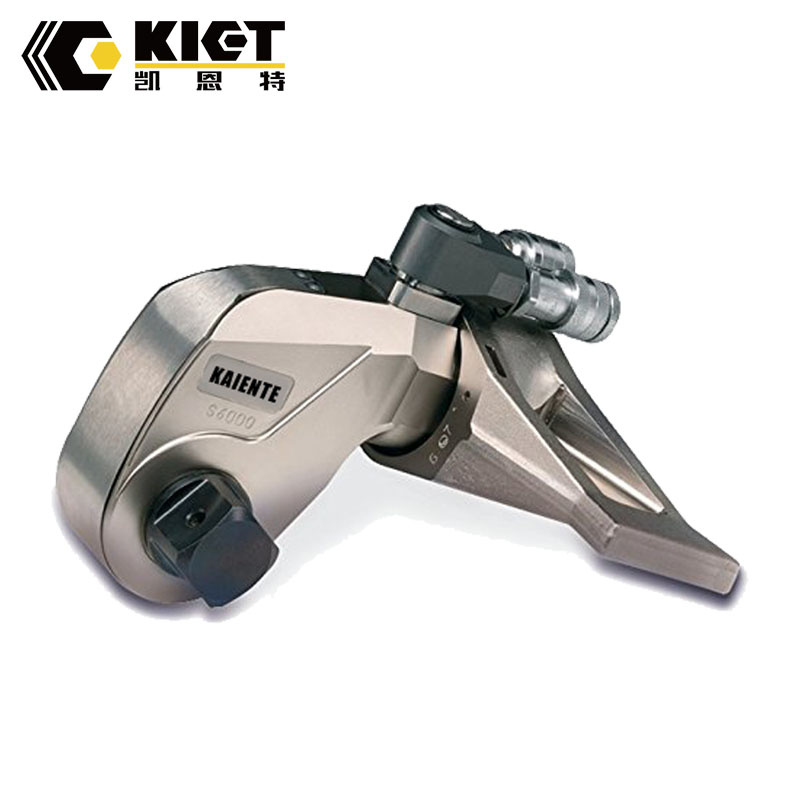

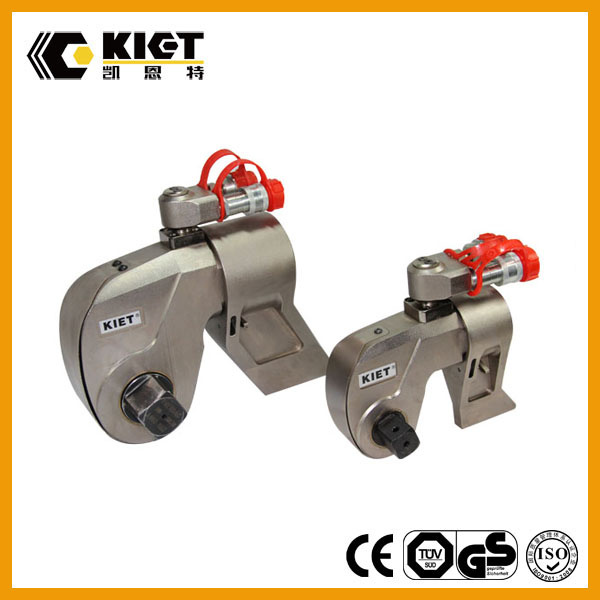

Large Torque Square Drive Hydraulic Torque Wrench with Aerospace Material
Product DescriptionHigh torque hydraulic wrench with high technology aerospace material, aluminum and titanium alloy and special alloy steel.
360° quick coupling, no space limited.
Direct push type square drive reversing, simple and quickly.
Precision ratchet, the accuracy is as high as ±3%.
Can be equipped with large size and long sockets to adapt to different requirements of work condition.
Ultra large torque design, up to 180677Nm, greater torque can be customized.
Standard working pressure: 70MPa.
Packaging & Shipping;
We provide Aluminum Alloy Lightweight Box, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.
Our Service:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.Company Information
Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
We are a manufacturer in tools, such as:
? Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
? Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
? Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
? Hydraulic pumps, manual and electric type (max up to 3000bar);
? Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
? Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.FAQ:
Q1: How can contact sales?
A1: Please call: +86-021-86186688 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
And deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
Shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce. For more information about the products please contact me as below:
Elena Tan
Tel: 86-523-81569666
Mob: +86 18052606778
Web: www.kaientehydraulic.com Welcome to visit our company
| Model | Max. Torque (Nml | Min. Torque (Nm» | Square Drive (in) | L1 (mm) | L2 (mml | HI (mm) | H2 (mm) | H3 (mm> | R (mm, | Weight (kg) |
| KET-DNB-5 | 4992 | 499 | 1 | 211 | 289 | 204 | 91 | 50 | 35 | 7 |
| KET-DNB.10 | 11775 | 1178 | 1-1/2 | 256 | 355 | 251 | 125 | 69 | 45 | 14 |
| KET-DNB-20 | 19413 | 1941 | 2 | 274 | 389 | 285 | 141 | 78 | 54 | 19 |
| KET-DNB-30 | 38100 | 3810 | 2-1/2 | 329 | 473 | 332 | 174 | 96 | 70 | 37 |
| KET-DNB.50 | 57488 | 5749 | 2-1/2 | 370 | 542 | 382 | 179 | 101 | 80 | 53 |
| KET.DNB.110 | 103670 | 10367 | 3-1/4 | 430 | 624 | 430 | 227 | 124 | 94 | 91 |
| KET-DNB-120 | 120323 | 12032 | 3-1/2 | 447 | 655 | 453 | 240 | 132 | 102 | 122 |
| KET-DNB-180 | 180677 | 18068 | 4 | 505 | 758 | 513 | 270 | 150 | 124 | 175 |
