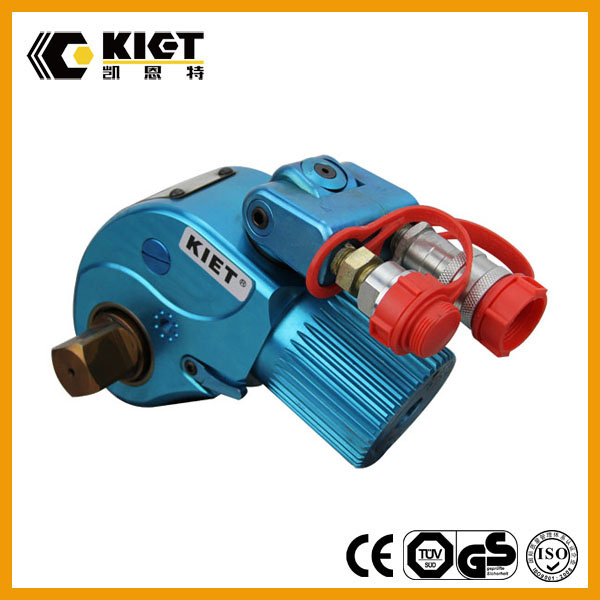

Large Torque Square Drive Hydraulic Torque Wrench with Socket Set

Prod Model:	DNB-5-180
Max. Torque:	4992~180667nm
Min. Torque:	499~18068nm
Square Drive:	1~4inch
Weight:	7~175kg
Material:	Aluminum Titanium Alloy
Working Pressure:	70MPa
Color:	Customer Required
Warranty:	One Year
OEM:	Yes
Working Mode:	Electric

Product Description

Product Description

                          Large Torque Square Drive Hydraulic Torque Wrench with Socket Set

Product Features:
1.High torque hydraulic wrench with high technology aerospace material, aluminum and titanium alloy and special alloy steel.
2.360° quick coupling, no space limited.
3.Direct push type square drive reversing, simple and quickly.
4.Precision ratchet, the accuracy is as high as ±3%.
5.Can be equipped with large size and long sockets to adapt to different requirements of work conditions.
6.Ultra lalrge torque design, up to 180677Nm, greater Torque can be customized.
7.standard working pressure:70MPa.

select the correct torque wrench:
A principle should be determined before selecting torque wrench, loosening torque equals about 1.5~2 times of tighting torque.

Field Application:
1. Bolt tightening of pipeline flange in West-East natural gas transmission project.

2.Bolt tightening of oilfield equipment.

Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.


We are a manufacturer in tools, such as:
1. Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
2. Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
3. Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
4. Hydraulic pumps, manual and electric type (max up to 3000bar);
5. Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6. Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

FAQ:
Q1: How long does it take to get the product If I place an order?
A1: If products stock available, after confirmation of your payment or advance payment, we will pack

And deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.

Q2: How to make payment?
A2: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma Invoice with our banking details.

Q3: Manufacturing time?
A3: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.

Technical Parameters:

Model	Max.Torque (Nm)	Min.Torque (Nm)	Square Drive (inch)	Weight (kg)
KET-DNB-5	4992	499	1	7
KET-DNB-10	11775	1178	1- 1/2	14
KET-DNB-20	19413	1941	2	19
KET-DNB-30	38100	3810	2- 1/2	37
KET-DNB-50	57488	5479	2- 1/2	53
KET-DNB-110	103670	10367	3- 1/4	91
KET-DNB-120	120323	12032	3- 1/2	122
KET-DNB-180	180677	18068	4	175
