| Prod Model: |
SY-ACSB-1000(Asphalt Cutter Saw Blade) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
300 - 3500 |
| Hole(mm): |
25.4/50/60 |
| Seg Size(mm): |
40X3.2X10 - 40X5.5X10 |
| Teeth No. (PCS): |
21- 50 |
| Core Type: |
Silent or Normal Asphalt Cutter Saw Blade |
| Segment Shape: |
Flat Shape, M Shape, Conical Shape |
| Delivery Detail: |
7 - 15 Days |
| Advantage: |
Quality and Price |
| Usage Way: |
Asphalt Cutter Saw Blade:Dry or Wet Cutting |
| Weliding Way: |
Laser Welding Asphalt Cutter Saw Blade |
| Graininess: |
Success Formula for Asphalt Concrete Cutting |
| Thickness: |
Depend on Diameter |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
350mm |
| Specification: |
Asphalt Cutter Saw Blade |
| Customized: |
Non-Customized |
Product Description

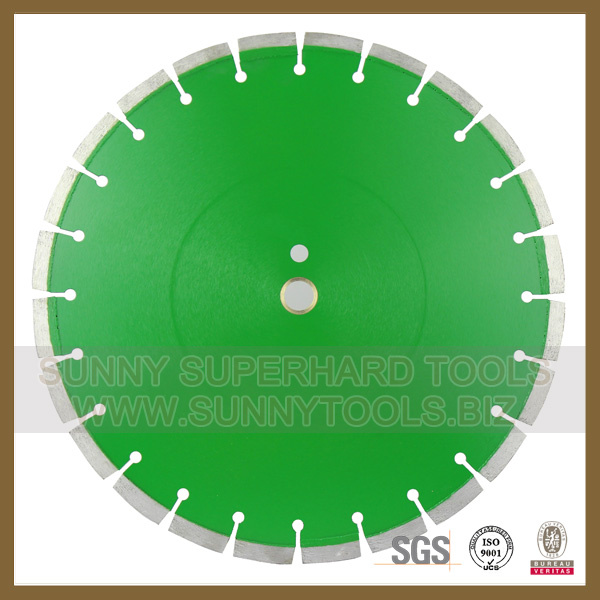

Laser Diamond Asphalt Cutter Saw Blade
1. Adopt laser welding techniques which bring fast and safety cutting...
2. Used for dry cut Asphalt, Reinforced Concrete, Concrete and Firebrick etc.
3. It can be widely applied.
Advantage:
Easy to operation
Sharp and fast cutting
Suitable for dry and wet cutting
Characteristics:
1. Fast cutting and Long life.
2. Strictly raw material source and production quality control assure your stable quality
3. Welding method: Laser welding
The above specifications and photos is only for Reference, other or special specification can be ordered by customers.
Technical data requested
The technical data that needs to be provided in order to identify the most suitable disc is:
Δ Disc diameter
Δ Bore
Δ Narrow or wide slots
Δ Core type(normal or silent)
Δ Type of material to be cut
Any Question or for more information, please kindly contact us!
Thank you for viewing our website!
[2013080806]
[2013080906]
| DIA.OF BLADE(mm) | HOLE(mm) | Seg size(mm) | TEETH NO.(pcs) |
| 300 |
25.4
50
60 | 40x3.2x10 | 21 |
| 350 | 40x3.2x10 | 24 |
| 400 | 40x3.6x10 | 28 |
| 450 | 40x3.8x10 | 32 |
| 500 | 40x4.0x10 | 36 |
| 600 | 40x4.5x10 | 42 |
| 750 | 40x5.0x10 | 46 |
| 800 | 40x5.5x10 | 50 |
| Other Specifications Are Available Upon Request |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
