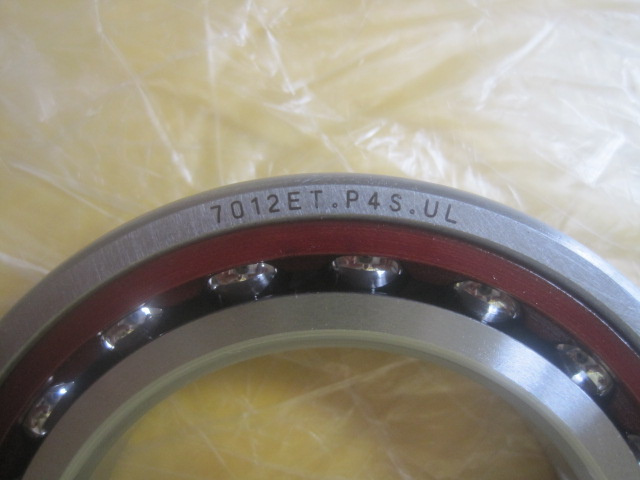

Prod Model: |
7012ET. P4S. UL |
Inner: |
60mm |
Outer: |
95mm |
Thickness: |
18mm |
Weight: |
0.45kg |
Rolling Body: |
Ball Bearings |
The Number Of Rows: |
Single |
Outer Dimension: |
Small (',28-55mm) |
Material: |
Bearing Steel |
Load Direction: |
Radial Bearing |
Separated: |
Unseparated |
Product Description
Welcome to choose KORTON INDUSTRIAL LIMITED.
NO 1. our adwantages:
1. 14 years bearing products manufacturing and 4 years exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.
4. Sample available

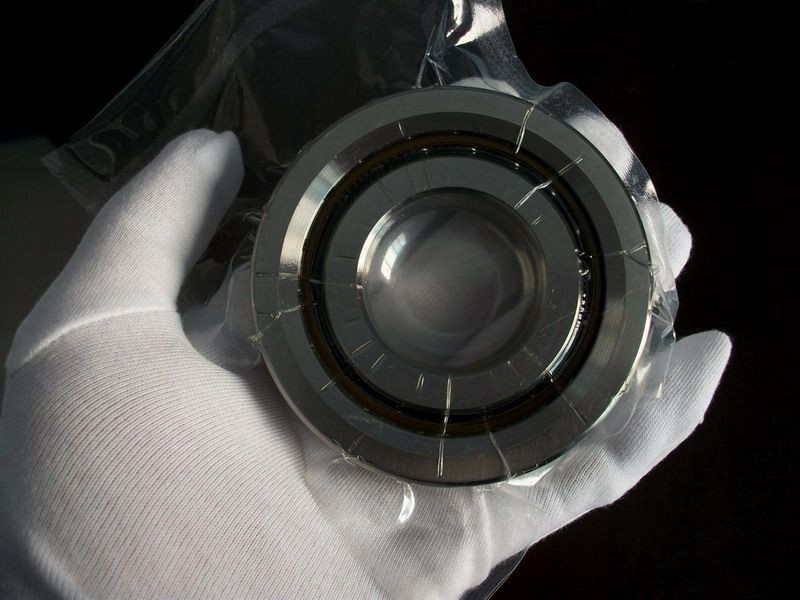

NO 2. Description: Angular Contact Ball Bearing
Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.
Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.
Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.
- Back-to-bacd arrangement (DB)
- Face to face arrangement (DF)
- Tandem arrangement (DT)
- Stamping steel cage (J)
- Stamping brass cage (Y)
- Nylon cage (TVP)
- High hardness fiber holder (TPA)
- One brass cage (MP)
NO 3. OEM all brand bearing
1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS
2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33
3. cylindrical roller bearing N,NU,NJ,NN,NUP,E,ECP,ECM,ECJ
4. taper roller bearing 30200,30300,32200,32300,31300,32000
5. Aligning ball bearing 1200,1300,2200,2300,
6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN
7. thrust ball bearing 51100,51200,51300,51400,E,M
8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C
9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP
10.Wheel hub bearing /ceramic bearing/plastic bearing/lazy susan bearing
NO 4. Angular Contact Ball Bearing Specification:
Seals Types | 2RS,OPEN |
Vibration Level | Z1V1,Z2V2,Z3V3 |
Clearance | C2,C0,C3,C4,C5 |
Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
MOQ | 1Set at least |
Delivery Time | 15-45 days after contract |
Payment Terms | TT/PAPAL/WESTERN UNION |
Pavkage | Tube package+outer carton+pallets; Single box+outer carton+pallets; Tube pavkge+middle box+outer carton+pallets; According to your requirement |
NO 5. Angular contact ball bearing Models and Size:
| | | (r/min) | | | | |
| Principal dimensions | | | Speed ratings | | Basic load ratings | | (kg) |
Bearing NO. | d | D | B | | | (kN) | (kN) | Mass |
| | | | Grease | Oil | Dynamic | Static | |
7000AC | 10 | 26 | 8 | 19000 | 28000 | 4.75 | 2.12 | 0.018 |
7000C | 10 | 26 | 8 | 19000 | 28000 | 4.92 | 2.25 | 0.018 |
7001AC | 12 | 28 | 8 | 18000 | 26000 | 5.2 | 2.55 | 0.02 |
7001C | 12 | 28 | 8 | 18000 | 26000 | 5.42 | 2.65 | 0.02 |
7002AC | 15 | 32 | 9 | 17000 | 24000 | 5.95 | 3.25 | 0.028 |
7002C | 15 | 32 | 9 | 17000 | 24000 | 6.25 | 3.42 | 0.028 |
7003AC | 17 | 35 | 10 | 16000 | 22000 | 6.3 | 3.68 | 0.036 |
7003C | 17 | 35 | 10 | 16000 | 22000 | 6.6 | 3.85 | 0.036 |
7004AC | 20 | 42 | 12 | 14000 | 19000 | 10 | 5.78 | 0.064 |
7004C | 20 | 42 | 12 | 14000 | 19000 | 10.5 | 6.08 | 0.064 |
7005AC | 25 | 47 | 12 | 12000 | 17000 | 11.2 | 7.08 | 0.074 |
7005C | 25 | 47 | 12 | 12000 | 17000 | 11.5 | 7.45 | 0.074 |
7006AC | 30 | 55 | 13 | 9500 | 14000 | 14.5 | 9.85 | 0.11 |
7006C | 30 | 55 | 13 | 9500 | 14000 | 15.2 | 10.2 | 0.11 |
7007AC | 35 | 62 | 14 | 8500 | 12000 | 18.5 | 13.5 | 0.15 |
7008AC | 40 | 68 | 15 | 15000 | 21000 | 16 | 12.9 | 0.21 |
7009C | 45 | 75 | 16 | 14000 | 19000 | 19.87 | 16.36 | 0.24 |
7009AC | 45 | 75 | 16 | 14000 | 19000 | 19.87 | 16.36 | 0.24 |
7010C | 50 | 80 | 16 | 13000 | 17000 | 21 | 19 | 0.26 |
7010AC | 50 | 80 | 16 | 13000 | 17000 | 21 | 19 | 0.26 |
7011C | 55 | 90 | 18 | 12000 | 15000 | 26.1 | 22.6 | 0.36 |
7011AC | 55 | 90 | 18 | 12000 | 15000 | 26.1 | 22.6 | 0.36 |
7012C | 60 | 95 | 18 | 11000 | 14000 | 32.5 | 27 | 0.45 |
7012AC | 60 | 95 | 18 | 11000 | 14000 | 32.5 | 27 | 0.45 |
7013C | 65 | 100 | 18 | 9900 | 13000 | 35.2 | 30 | 0.5 |
7013AC | 65 | 100 | 18 | 9900 | 13000 | 35.2 | 30 | 0.5 |
7014C | 70 | 110 | 20 | 9200 | 12000 | 41.1 | 37.3 | 0.59 |
7014AC | 70 | 110 | 20 | 9200 | 12000 | 41.1 | 37.3 | 0.59 |
7015C | 75 | 115 | 20 | 8600 | 11000 | 42.5 | 40.7 | 0.69 |
7015AC | 75 | 115 | 20 | 8600 | 11000 | 42.5 | 40.7 | 0.69 |
| | | | (r/min) | | | | |
| Principal dimensions | | | Speed ratings | | Basic load ratings | | (kg) |
Bearing NO. | d | D | B | | | (kN) | (kN) | Mass |
| | | | Grease | Oil | Dynamic | Static | |
7016C | 80 | 125 | 22 | 8000 | 11000 | 53.4 | 50.6 | 0.93 |
7016AC | 80 | 125 | 22 | 8000 | 11000 | 53.4 | 50.6 | 0.93 |
7017C | 85 | 130 | 22 | 7600 | 10000 | 54.6 | 53.7 | 0.95 |
7017AC | 85 | 130 | 22 | 7600 | 10000 | 54.6 | 53.7 | 0.95 |
7018C | 90 | 140 | 24 | 7100 | 9500 | 68.6 | 65.4 | 0.96 |
7018AC | 90 | 140 | 24 | 7100 | 9500 | 68.6 | 65.4 | 0.96 |
7019C | 95 | 145 | 24 | 6800 | 9000 | 73.5 | 73 | 1.17 |
7019AC | 95 | 145 | 24 | 6800 | 9000 | 73.5 | 73 | 1.17 |
7020C | 100 | 150 | 24 | 6400 | 8600 | 75.5 | 77 | 1.25 |
7020AC | 100 | 150 | 24 | 6400 | 8600 | 75.5 | 77 | 1.25 |
7021C | 105 | 160 | 26 | 6100 | 8100 | 88 | 89.5 | 1.53 |
7021AC | 105 | 160 | 26 | 6100 | 8100 | 88 | 89.5 | 1.53 |
7022C | 110 | 170 | 28 | 5800 | 7700 | 101 | 101 | 1.91 |
7022AC | 110 | 170 | 28 | 5800 | 7700 | 101 | 101 | 1.91 |
7024C | 120 | 180 | 28 | 5300 | 7100 | 103 | 108 | 2.04 |
7024AC | 120 | 180 | 28 | 5300 | 7100 | 103 | 108 | 2.04 |
7026C | 130 | 200 | 33 | 4900 | 6500 | 129 | 137 | 3.73 |
7026AC | 130 | 200 | 33 | 4900 | 6500 | 129 | 137 | 3.73 |
7028C | 140 | 210 | 33 | 4500 | 6000 | 132 | 145 | 3.96 |
7028AC | 140 | 210 | 33 | 4500 | 6000 | 132 | 145 | 3.96 |
7030C | 150 | 225 | 35 | 4200 | 5600 | 151 | 168 | 4.82 |
7030AC | 150 | 225 | 35 | 4200 | 5600 | 151 | 168 | 4.82 |
7200AC | 10 | 30 | 9 | 18000 | 26000 | 5.58 | 2.82 | 0.03 |
7200C | 10 | 30 | 9 | 18000 | 26000 | 5.82 | 2.95 | 0.03 |
7201AC | 12 | 32 | 10 | 17000 | 24000 | 7.1 | 3.35 | 0.035 |
7201C | 12 | 32 | 10 | 17000 | 24000 | 7.35 | 3.52 | 0.035 |
7202AC | 15 | 35 | 11 | 16000 | 22000 | 8.35 | 4.4 | 0.043 |
7202C | 15 | 35 | 11 | 16000 | 22000 | 8.68 | 4.62 | 0.043 |
7203AC | 17 | 40 | 12 | 15000 | 20000 | 10.5 | 5.65 | 0.062 |
7203C | 17 | 40 | 12 | 15000 | 20000 | 10.8 | 5.95 | 0.062 |
| | | | (r/min) | | | | |
| Principal dimensions | | | Speed ratings | | Basic load ratings | | (kg) |
Bearing NO. | d | D | B | | | (kN) | (kN) | Mass |
| | | | Grease | Oil | Dynamic | Static | |
7204C | 20 | 47 | 14 | 25000 | 34000 | 15 | 8.6 | 0.1 |
7204AC | 20 | 47 | 14 | 25000 | 34000 | 15 | 8.6 | 0.1 |
7204B | 20 | 47 | 14 | 25000 | 34000 | 13.31 | 7.65 | 0.12 |
7205C | 25 | 52 | 15 | 21000 | 28000 | 16.2 | 10.3 | 0.13 |
7205AC | 25 | 52 | 15 | 21000 | 28000 | 16.2 | 10.3 | 0.13 |
7205B | 25 | 52 | 15 | 21000 | 28000 | 14.03 | 8.63 | 0.14 |
7206C | 30 | 62 | 16 | 18000 | 24000 | 16.94 | 12.14 | 0.2 |
7210C | 50 | 90 | 20 | 12000 | 15000 | 32.91 | 26.83 | 0.45 |
7210AC | 50 | 90 | 20 | 12000 | 15000 | 32.91 | 26.83 | 0.45 |
7211AC | 55 | 100 | 21 | 11000 | 14000 | 40.71 | 33.96 | 0.6 |
7212AC | 60 | 110 | 22 | 9700 | 13000 | 46.9 | 40.53 | 0.81 |
7213AC | 65 | 120 | 23 | 9000 | 12000 | 53.67 | 46.22 | 1.01 |
7214AC | 70 | 125 | 24 | 8300 | 11000 | 56.04 | 49.52 | 1.08 |
7215AC | 75 | 130 | 25 | 7800 | 10000 | 60.91 | 54.34 | 1.68 |
7216AC | 80 | 140 | 26 | 7300 | 9700 | 68.81 | 63.35 | 1.48 |
7217AC | 85 | 150 | 28 | 6900 | 9100 | 77.5 | 72.6 | 1.88 |
7218AC | 90 | 160 | 30 | 6500 | 8600 | 89.91 | 82.6 | 2.26 |
7219AC | 95 | 170 | 32 | 6100 | 8100 | 96.5 | 88.8 | 2.78 |
7220AC | 100 | 180 | 34 | 5800 | 7700 | 111.2 | 96.8 | 3.32 |
7221AC | 105 | 190 | 36 | 5500 | 7300 | 119.2 | 105.6 | 3.95 |
7222AC | 110 | 200 | 38 | 5200 | 6900 | 129.6 | 118.4 | 4.65 |
7224AC | 120 | 215 | 40 | 4800 | 6400 | 139.2 | 132.8 | 5.49 |
7226AC | 130 | 230 | 40 | 4400 | 5800 | 156.8 | 156.8 | 6.21 |
7228AC | 140 | 250 | 42 | 4000 | 5300 | 174.4 | 187.2 | 7.76 |
7230AC | 150 | 270 | 45 | 3700 | 5000 | 248 | 280 | 9.75 |
7232AC | 160 | 290 | 48 | 2400 | 2600 | 230 | 263 | 12.1 |
7234AC | 170 | 310 | 52 | 2400 | 2400 | 272 | 331 | 15.1 |
7236AC | 180 | 320 | 52 | 2200 | 2400 | 303 | 390 | 18.1 |
7238AC | 190 | 340 | 55 | 2000 | 2200 | 303 | 390 | 18.8 |
7240AC | 200 | 360 | 59 | 1800 | 2000 | 324 | 423 | 22.4 |
Bearing No. | Dimensions(mm) | ( KN) | Weight |
New Model | ZZ | 2RS | d | D | B | Cr | Cor | Mass(kg) |
3200A | 3200zz | 32002RS | 10 | 30 | 14.3 | 7 | 3.8 | 0.049 |
3201A | 3201zz | 32012RS | 12 | 32 | 15 9 | 9 2 | 5 1 | 0.057 |
3202A | 3202zz | 32022RS | 15 | 35 | 15.9 | 10 | 6.1 | 0.064 |
3203A | 3203zz | 32032RS | 17 | 40 | 17.5 | 12 8 | 7 9 | 0.096 |
3204A | 3204zz | 32042RS | 20 | 47 | 20.6 | 19 | 12.1 | 0.153 |
3205A | 3205zz | 32052RS | 25 | 52 | 20.6 | 20.6 | 14 3 | 0.175 |
3206A | 3206zz | 32062RS | 30 | 62 | 23.8 | 28.6 | 20.4 | 0.286 |
3207A | 3207zz | 32072RS | 35 | 72 | 27 | 38 | 27.8 | 0.436 |
3208A | 3208zz | 32082RS | 40 | 80 | 30.2 | 42.5 | 32.5 | 0.59 |
3209A | 3209zz | 32092RS | 45 | 85 | 30.2 | 48 0 | 37 | 0.64 |
3210A | 3210u | 32102RS | 50 | 90 | 30.2 | 51 | 42 | 0.689 |
3211A | 3211zz | 32112RS | 55 | 100 | 33.3 | 63 0 | 53 | 0.986 |
3212A | 3212zz | 32122RS | 60 | 110 | 36.5 | 71.5 | 58.5 | 1.270 |
3213A | 3213zz | 32132RS | 65 | 120 | 38 1 | 83.5 | 72.5 | 1.570 |
3214A | 3214zz | 32142RS | 70 | 125 | 39.7 | 87.5 | 79.5 | 1.800 |
3215A | 3215zz | 32152RS | 75 | 130 | 41.3 | 90 | 80.5 | 1.900 |
3216A | 3216zz | 32162RS | 80 | 140 | 44.4 | 106 | 95.5 | 2.39 |
3217A | 3217zz | 32172RS | 85 | 150 | 49.2 | 112 | 106 | 3.06 |
3218A | 3218zz | 32182RS | 90 | 160 | 52.4 | 140 | 129 | 3.73 |
3219A | 3219zz | 32192RS | 95 | 170 | 55 6 | 163 | 184 | 5.100 |
3220A | 3220zz | 32202RS | 100 | 180 | 60.3 | 210 | 240 | 6.14 |
3300A | 3300zz | 33002RS | 10 | 35 | 19 | 9.2 | 5.1 | 0.092 |
3301A | 3301zz | 33012RS | 12 | 37 | 19 | 10 | 6.1 | 0.109 |
3302A | 3302zz | 33022RS | 15 | 42 | 19 | 12 8 | 7.9 | 0.132 |
3303A | 3303zz | 33032RS | 17 | 47 | 22.2 | 20.4 | 12.1 | 0.181 |
3304A | 3304zz | 33042RS | 20 | 52 | 22 2 | 20.6 | 127 | 227 |
3305A | 3305zz | 33052RS | 25 | 62 | 25.4 | 30.5 | 20.5 | 0.362 |
3306A | 3306zz | 33062RS | 30 | 72 | 302 | 39.5 | 27.5 | 0.553 |
3307A | 3307zz | 33072RS | 35 | 80 | 34.9 | 49.5 | 35 | 0.766 |
3308A | 3308zz | 33082RS | 40 | 90 | 36.5 | 60 5 | 44 | 1.01 |
3309A | 3309zz | 33092RS | 45 | 100 | 39.7 | 72.5 | 54 | 1.34 |
3310A | 3310zz | 33102RS | 50 | 110 | 44.4 | 85.5 | 64.5 | 1.81 |
3311A | 3311zz | 33112RS | 55 | 120 | 49.2 | 106 | 82 | 2.32 |
3312A | 3312zz | 33122RS | 60 | 130 | 54 | 122 | 95.5 | 3.05 |
3313A | 3313zz | 33132RS | 65 | 140 | 58.7 | 138 | 109 | 3,960 |
3314A | 3314zz | 33142RS | 70 | 150 | 63.5 | 155 | 125 | 4.74 |
3315A | 3315zz | 33152RS | 75 | 160 | 68.3 | 168 | 141 | 5.65 |
3316A | 3316zz | 33162RS | 80 | 170 | 68.3 | 175 | 151 | 7.21 |
3317A | 3317zz | 33172RS | 85 | 180 | 73 | 196 | 240 | 8.3 |
3318A | 3318zz | 33182RS | 90 | 190 | 73 | 225 | 266 | 9.01 |

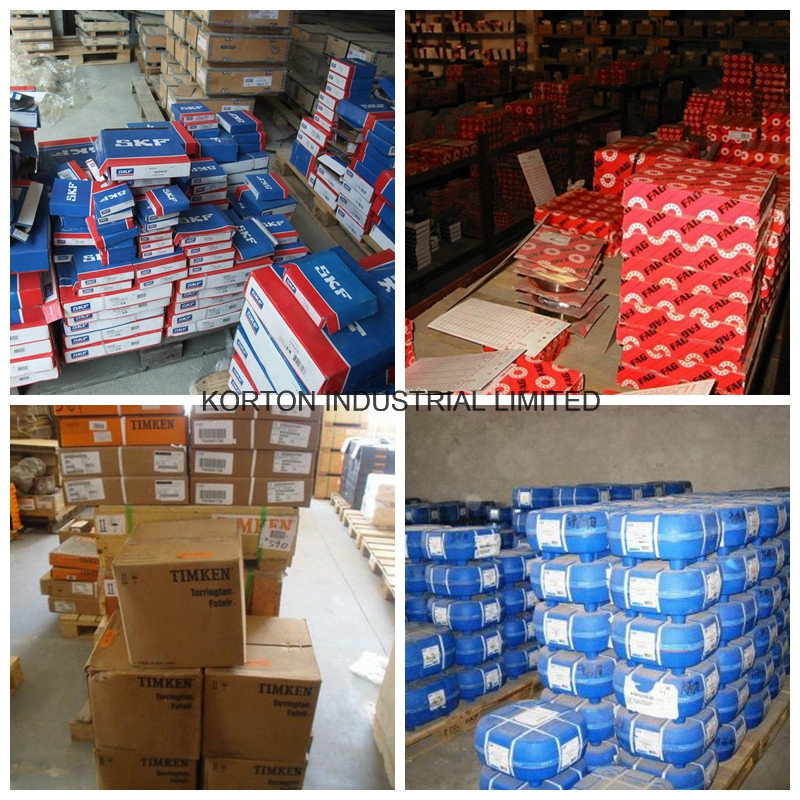

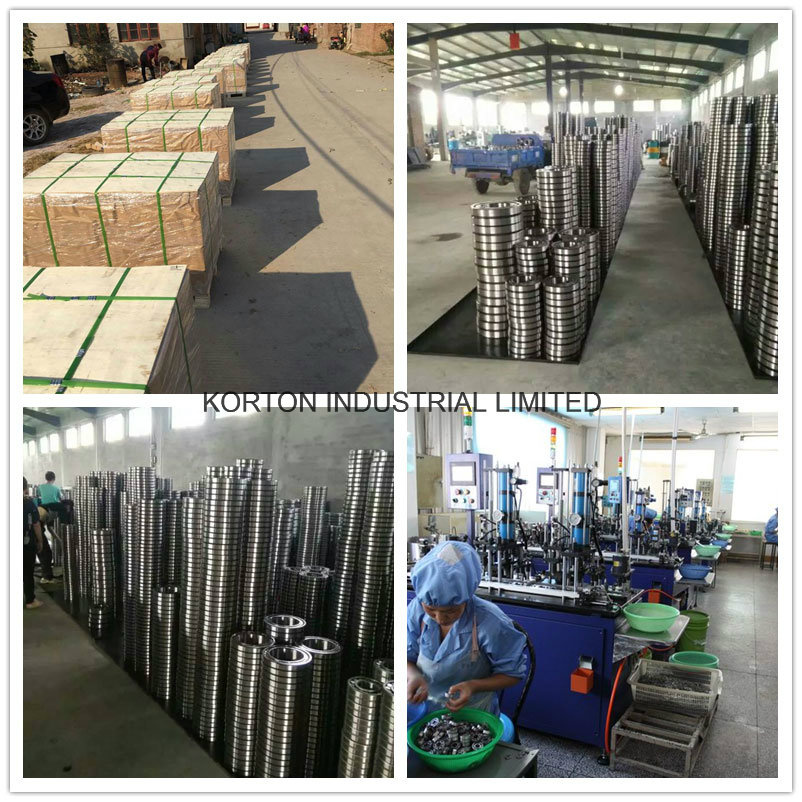

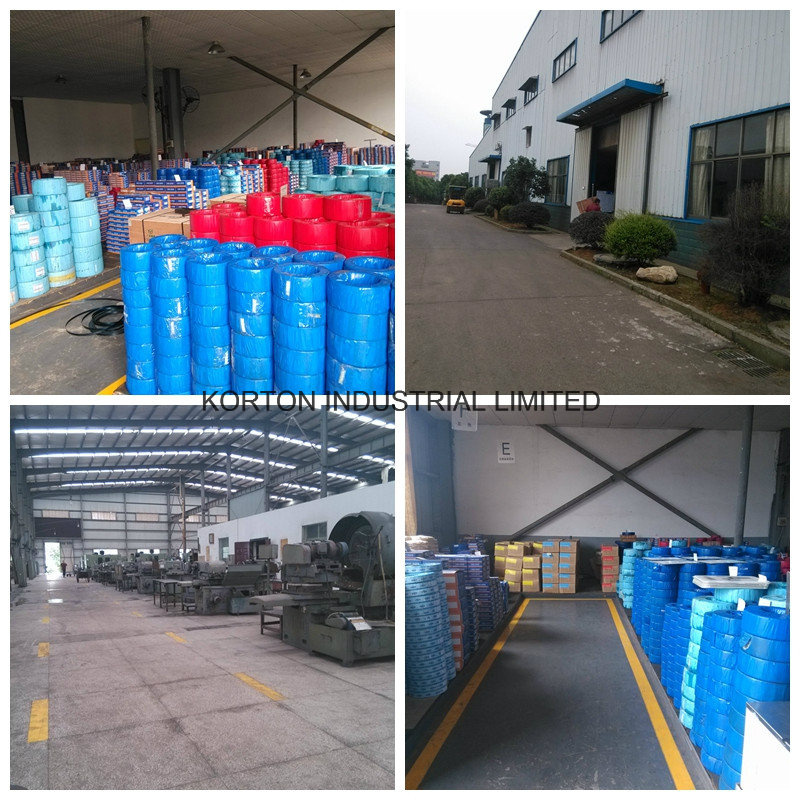

NO 6. Our Bearing Factory:NO 8. Our Bearing Warehouse:NO 9. Our Bearing Packaging Box:.
Why Choose Us:
l Jinan TIANYUAN bearing company has 14 years manufacture experience and is one of the biggest adjustment center in north of China.
l We have large stock of original brand and our own brand bearing.
l Sample is available.
l We can accept OEM service.
l Jinan Tianyuan Bearing Co., Ltd. Was founded in March 2008. We were principally engaged in the research, development and manufacture of bearings in the early stage. Now we are mainly engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.
SFNB bearing company was founded in March 2008. We are not only principally engaged in the research, development and manufacture of bearings but also engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.
Main product:
1, Deep groove ball bearings
2, Ceramic ball bearings
3, Angular contact ball bearings
4, Self-aligning ball bearings
5, Thrust ball bearings
6, Linear bearings
7, Needle bearings
8, Pillow block bearings
9, Rod end bearings
10, Cylindrical roller bearings
11, Spherical roller bearings
12, spherical Thrust roller bearings
13, Taper roller bearings
14, Slewing bearings
15, sliding bearings
16, Excavator bearings
17, Blender bearings
18, Other bearings
In addition, our company can customize according to customers' needs of various types of products.
Our bearings have been widely used in various industries, such as
1) Mining, mineral processing, and cement
2) Motors and generators
3) Wind
4) Industrial pumps
5) Industrial transmission
6) Industrial fans
7) Aerospace
8) Buildings
9) Two rounds of cars
10) Skidding of the wheel
11) Food and drink
12) Plastic and rubber
13) Railway
14) Line drive control
15) Compressors
16) Printing equipment
17) Pulp and paper
18) Bicycle
In order to meet the needs of the masses of customers and improve the market competitiveness of our company, we can provide OEM service according to our customers' needs. We have gained ISO9001 certificate, CE certificate, GOST certificate and SGS certificate. Our target is to carry out the strategic investment along with the development of market and need of new products. With our strategic, excellent products, top technology and outstanding service, we sincerely expect cooperation with more customers and friends for a better future.
