| Prod Model: |
1.5.1.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
6 Inch |
| Manufacturing Arts: |
Welding |
| Saw Blade External Diameter: |
150mm |
| Kind: |
Diamond Laser Saw Blade |
| Usage: |
Asphalt Cutting |
Product Description

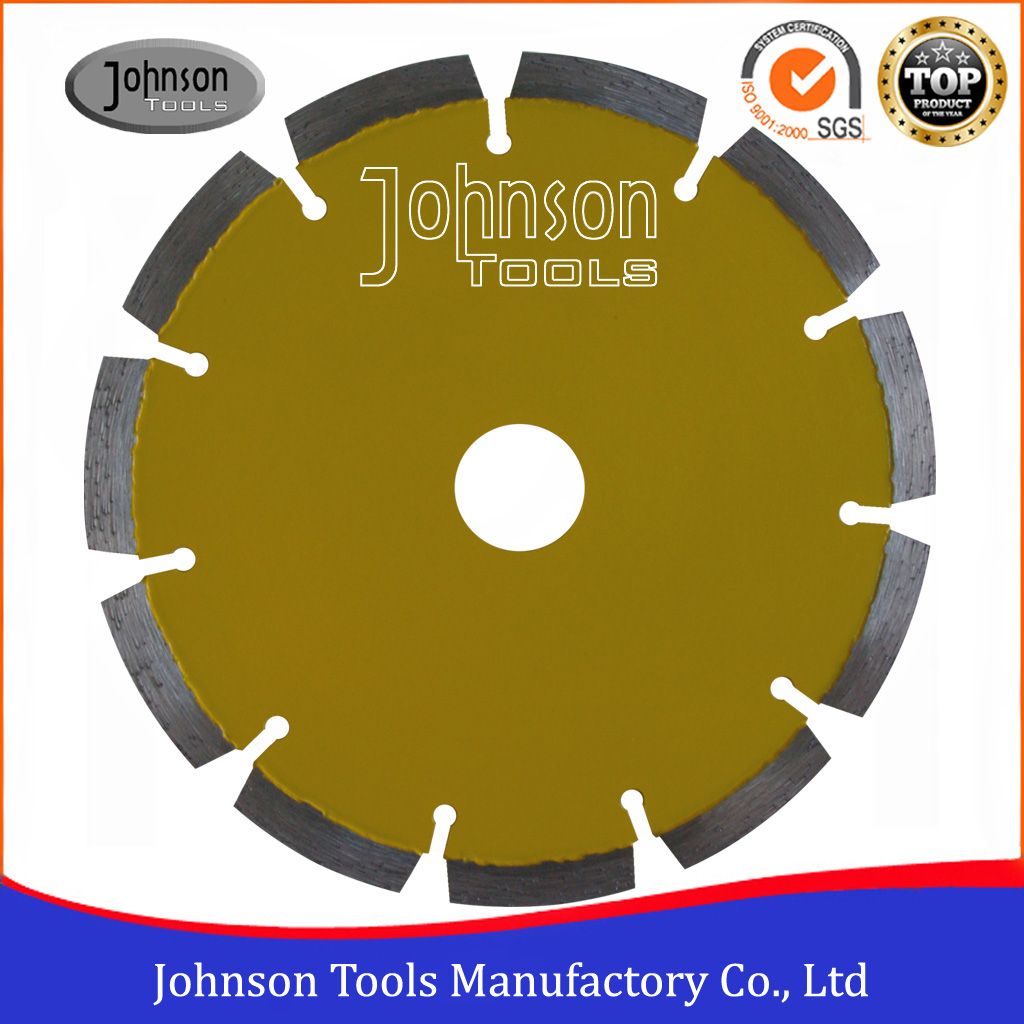

Laser welded saw blade: 150mm asphalt cutting blade
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of Laser welded saw blade: 150mm asphalt cutting blade
150mm laser welded saw blade is a cutting tool that is widely used in asphalt cutting,Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
2. Feature of Laser welded saw blade: 150mm asphalt cutting blade
1) Undercut Protection segments provide longer lifetime when cutting Abrasive Materials.
2) Fits to Petrol Cutters, Bench & Floor Saw Machines.
3) Different Cutting slot have different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
4) Dry or wet cutting asphalt
5) Well exported to Taiwan, Hongkong, Thailand, Poland, Australia, Singapore, USA etc.
3. Specification of Laser welded saw blade: 150mm asphalt cutting blade
Diameter:150mm
Segment thickness:2.2mm
Segment height:7/10mm
Inner hole:25.4mm,60mm or others
| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 6" | 150 | 34 | 2.2 | 7/10 | 11 |
Other size asphalt saw blade we could do as following
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 10/12/15 | 8 |
| 4.5" | 115 | 31 | 2.2 | 10/12/15 | 9 |
| 5" | 125 | 31 | 2.2 | 10/12/15 | 10 |
| 6" | 150 | 34 | 2.2 | 10/12/15 | 11 |
| 7" | 180 | 34 | 2.4 | 10/12/15 | 14 |
| 8" | 200 | 40 | 2.4 | 10/12/15 | 13 |
| 9" | 230 | 37 | 2.6 | 10/12/15 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
4. Packing and Shipping of Laser welded saw blade: 150mm asphalt cutting blade
75pcs 150mm laser welded asphalt saw blades are packed in one carton, gross weight per plywood is limited within 15kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
