Le1500s Single 15 Inch Full Range Compact Stage Monitor Speaker

Le1500s Single 15 Inch Full Range Compact Stage Monitor Speaker
Price: US $ 100-250/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: LE1500S
Lf Driver: 1 X 15 Inch
Hf Driver: 1 X 3 Inch
Power Rate: 600 Watts
Peak Power: 2400 Watts
Noise: <95dB
Hi-Fi: Not Hi-Fi
Operation Mode: Knob Control
Speaker System: Optional Combination
Speaker Material: Wood
Application: Commercial
Certification: RoHS
Monitor: VFD Screen
THD: <0.03%
Activity: Active or Passive

Product Description

LE1500S Single 15 Inch Full Range Compact Stage Monitor Speaker

Overview

LE1500S is a compact , high performance stage monitor combining high output and controlled dispersion with discreet, contemporary design . Differential dispersion technology increases the area over which a constant SPL and consistent frequency response is maintained at ear height , enabling the artist to move around more freely .








Key Features

1. Single 15" ultra-long excursion high power
2. Optimised constant directivity differential dispersion HF horn
3. Contemporary design multi-laminate birch plywood cabinet
4. 8 ohm nominal impedance
5. RMS 600W pro subwoofer speaker
6. special design for DISCO system

Description

    1>. 15" Sound System Speaker
    2>. Compact High-efficiency Neodymium Speaker System
    3>. Nightclub Disco Audio Speaker


Specifications


Frequency Response (±3 dB)

56Hz-18kHz ± 3dB

Sensitivity (1w/1m)

FR: 98dB LF: 99dB HF: 106dB

Long-term SPL

FR: 125dB LF: 126dB HF: 125dB

Maximum SPL

FR: 131dB  LF: 132dB  HF: 131dB

Nominal Impedance

FR/LF: 8 ohms HF: 16 ohms

Power rated

FR/LF: 600W HF: 80W

Peak Power handling

FR/LF: 2400W HF: 320W peak

Nominal Dispersion

60º - 100º horizontal (differential dispersion) 60º vertical

Dimensions (H x W x D)

(W) 710mm x (H) 385mm x (D) 582mm

Enclosure Material

18mm plywood

Surface Finished

Grey

Grille

1.5mm black perforated steel

 Net weight

36kg / 39 kg powered version

Low Frequency Driver

1×15 inch Neodymium woofer

High Frequency Driver

1×3 inch Neodymium compression driver

Input Connectors

Neutrik NL4 X 4

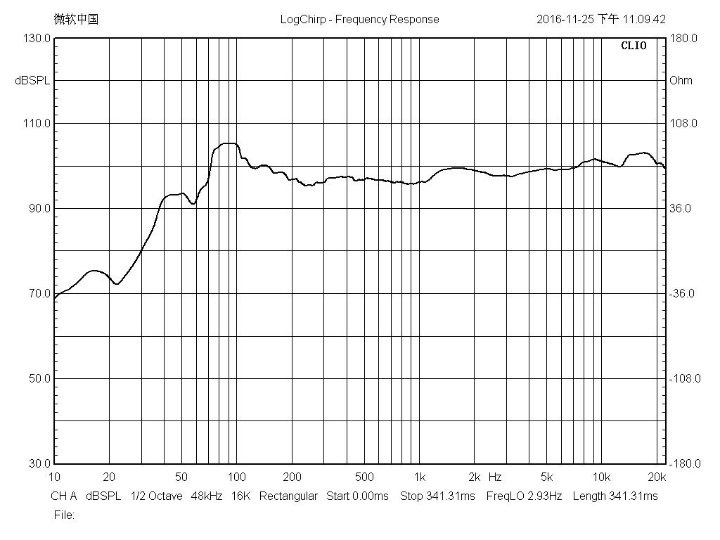

Frequency response












Company Home Page: https://www.china-sanway.com/
Facebook Home Page: https://www.facebook.com/SanwayProfessionalAudioAndPowerAmplifierFactory/
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.

With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.

Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.

Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.

Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.

We always keep and follow the principle to do business:

The same product, we win by the quality;

The same quality, we win by the price,

The same price, we win by the service.

We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.

Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
