| Prod Model: |
LE1500S |
| Lf Driver: |
1 X 15 Inch |
| Hf Driver: |
1 X 3 Inch |
| Power Rate: |
600 Watts |
| Peak Power: |
2400 Watts |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Knob Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
| Monitor: |
VFD Screen |
| THD: |
<0.03% |
| Activity: |
Active or Passive |
Product Description
Overview

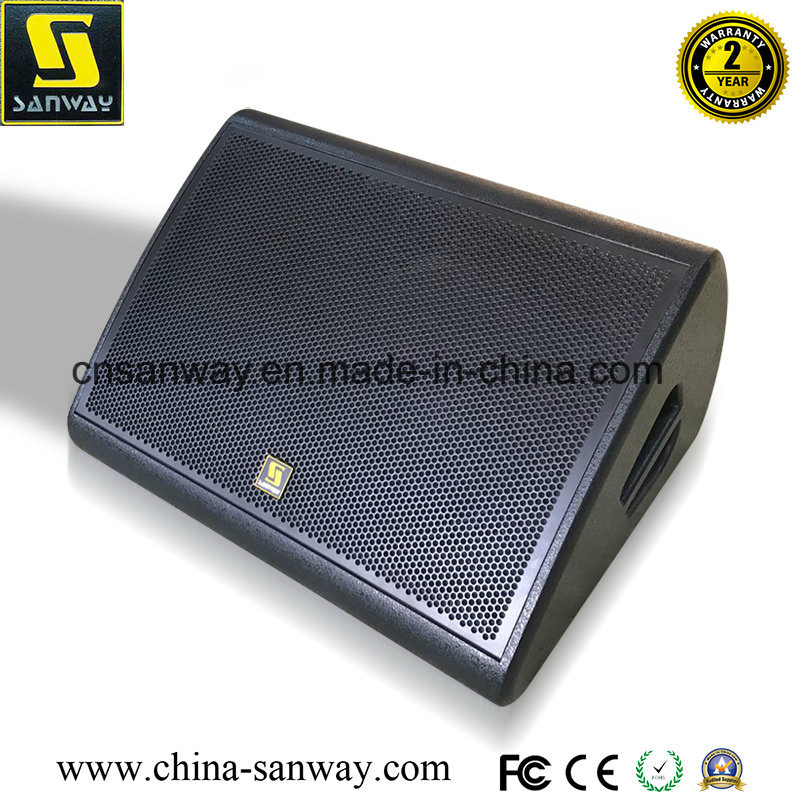

LE1500S is a compact , high performance stage monitor combining high output and controlled dispersion with discreet, contemporary design . Differential dispersion technology increases the area over which a constant SPL and consistent frequency response is maintained at ear height , enabling the artist to move around more freely .
Key Features
1. Single 15" ultra-long excursion high power
2. Optimised constant directivity differential dispersion HF horn
3. Contemporary design multi-laminate birch plywood cabinet
4. 8 ohm nominal impedance
5. RMS 600W pro subwoofer speaker
6. special design for DISCO system
Description
1>. 15" Sound System Speaker
2>. Compact High-efficiency Neodymium Speaker System
3>. Nightclub Disco Audio Speaker
Specifications
Frequency Response (±3 dB) | 56Hz-18kHz ± 3dB |
Sensitivity (1w/1m) | FR: 98dB LF: 99dB HF: 106dB |
Long-term SPL | FR: 125dB LF: 126dB HF: 125dB |
Maximum SPL | FR: 131dB LF: 132dB HF: 131dB |
Nominal Impedance | FR/LF: 8 ohms HF: 16 ohms |
Power rated | FR/LF: 600W HF: 80W |
Peak Power handling | FR/LF: 2400W HF: 320W peak |
Nominal Dispersion | 60º - 100º horizontal (differential dispersion) 60º vertical |
Dimensions (H x W x D) | (W) 710mm x (H) 385mm x (D) 582mm |
Enclosure Material | 18mm plywood |
Surface Finished | Grey |
Grille | 1.5mm black perforated steel |
Net weight | 36kg / 39 kg powered version |
Low Frequency Driver | 1×15 inch Neodymium woofer |
High Frequency Driver | 1×3 inch Neodymium compression driver |
Input Connectors | Neutrik NL4 X 4 |

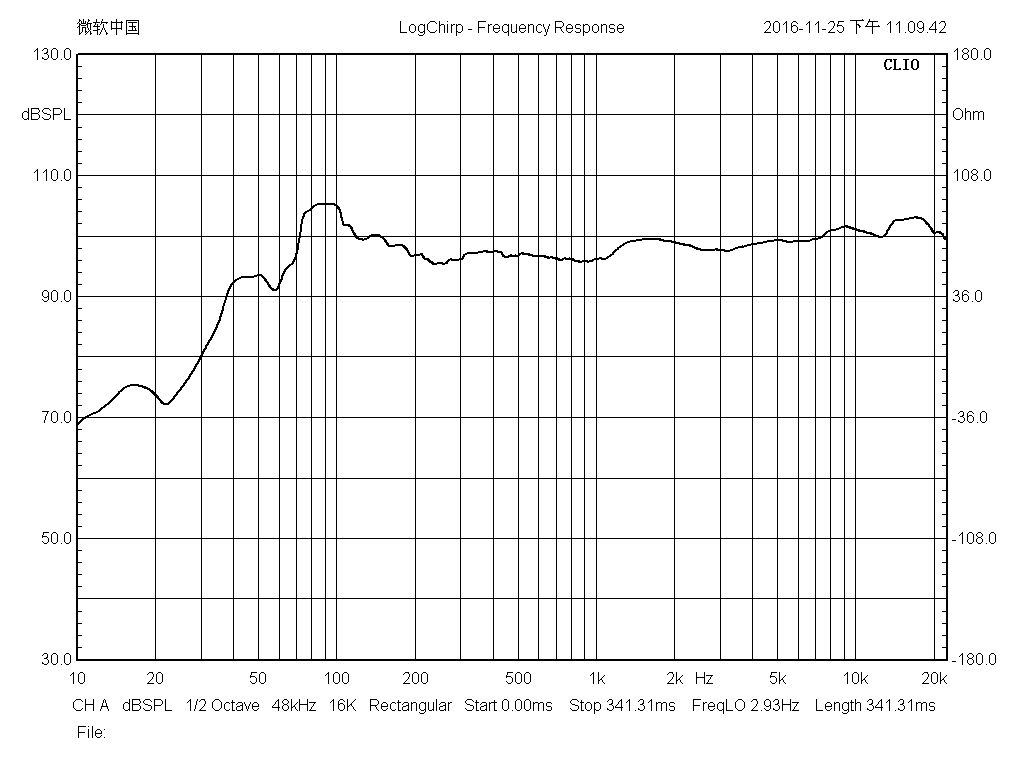

Frequency response
