| Prod Model: |
3MZ135D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Machine Tool and Production Line for Ball Bearing |
| Original: |
Luoyang |
| Outer Diameter: |
50-100 |
| Inner Bore: |
10-50 |
| Width: |
8-27 |
| Power: |
47kw |
| Weight: |
15t |
| Processing Range: |
6201-6209 |
| Processing Accuracy: |
P5 |
Product Description
Leading manufacture of machine tool for whole bearing production line
General information of machine tool and other grinding machine for bearing production line:

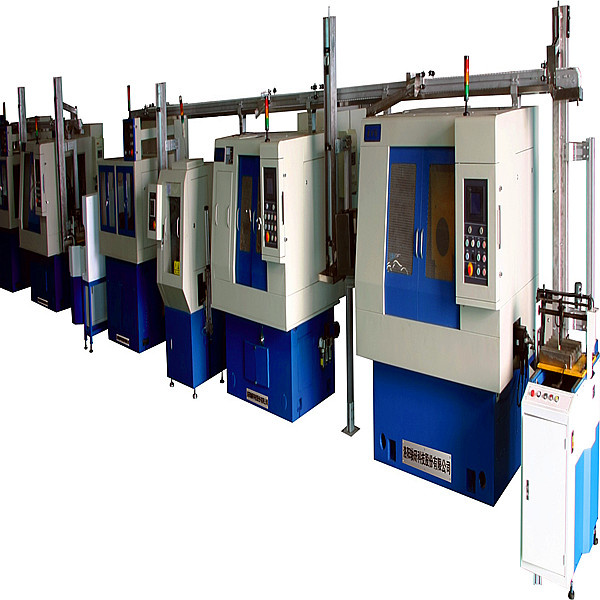

I. Full automatic line for small sized ball bearing
Main features of full automatic line for small sized ball bearing:
- Implemented with CNC equipment in production line, the feed slide is driven by AC servo motor&ball screw, the display is DIGITAL plasma touch screen, and equipped with constant power adaptive control system.
- Use MARPOSS in-process sizing gauge.
- The data of the sizing machine mounted outside is feedback to the machine feeding system to automatically control the size.
- High rigidity & high power electric spindle is used with oil-air lubrication.
- Enable CBN grinding & superfinishing.
- Enable auto in-process dynamic balancing.
- Having tele-monitoring, tele-diagnosis & communication function.
- Auto avoiding collision & guaranteeing the quality of the bearing.
- The apparent of the whole auto line is beautiful colorful & delightful, the auto line is also easily to operate and change.
Technical parameter of full automatic line for small sized ball bearing
:
- Processing range: 6201-6209
- Processing accuracy: P5 class, accuracy reserve ratio is over 80%.
- Total power: 60KW.
Main machine list
| Name | Model | Quantity | Processing range(mm) | Power (kw) | Space required(m) | Weight (t) |
| Full automatic grinding machine for ball bearing internal groove | 3MZ135D | 1 | Outer diameter:
D=φ50-100
Inner bore:
D=φ10-50
Width: B=8-27
| 47 | Inner ring
Production line:11700*2400
Outer ring
Production line:7000*2400
| 15
|
| Full automatic internal grinding machine | 3MZ205D | 1 |
| Full automatic grinder for bearing outer groove | 3MZ1410D | 1 |
| Full automatic groove superfinishing machine for ball bearing inner ring | 3MZ315D | 1 |
| Full automatic groove superfinishing machine for ball bearing outer ring | 3MZ3210D | 1 |
| Post process measuring machine for ball bearing internal groove | RJZK135D | 1 |
| Post process measuring machine for ball bearing outer groove | RJZK147D | 1 |
| Post process measuring machine for ball bearing inner diameter | RJZK205D | 1 |

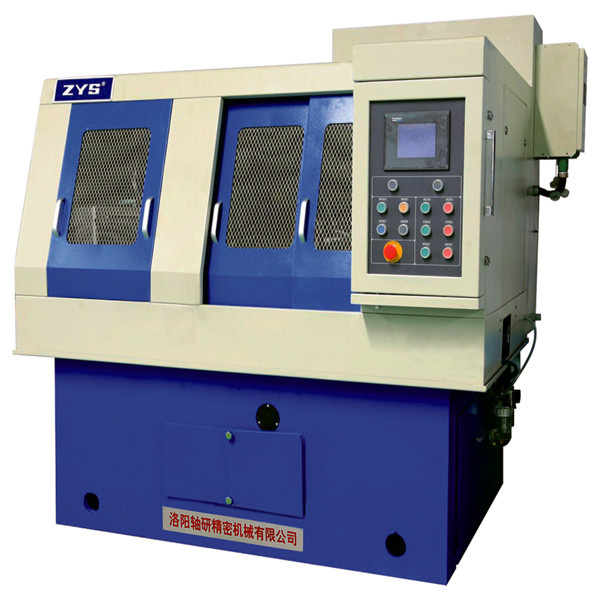

II. Full automatic grinding machine/machine tool for ball bearing internal groove
Main features of full automatic internal grinding machine- Equipped with MITSUBISHI PLC control system from JAPAN, dynamic display the grinding using plasma touch screen.
- Feeding system is driven by AC servo motor and ball screw, can realize high precision faster approach and high sensitive slower feeding. The minimal resolution is 0.25 μm.
- The speed of the oscillation machanism is regulated through AC frequency converter.
- Equipped with MARPOSS in-process sizing gauge.
- The wheelhead and the work feeding system are equipped with high precision and preloaded cross roller guideway to ensure rigidity and long service life.
- The speed of the work spindle is regulated through frequency converter.
- Enclosed machine guard has beautiful apprearance and safe function.

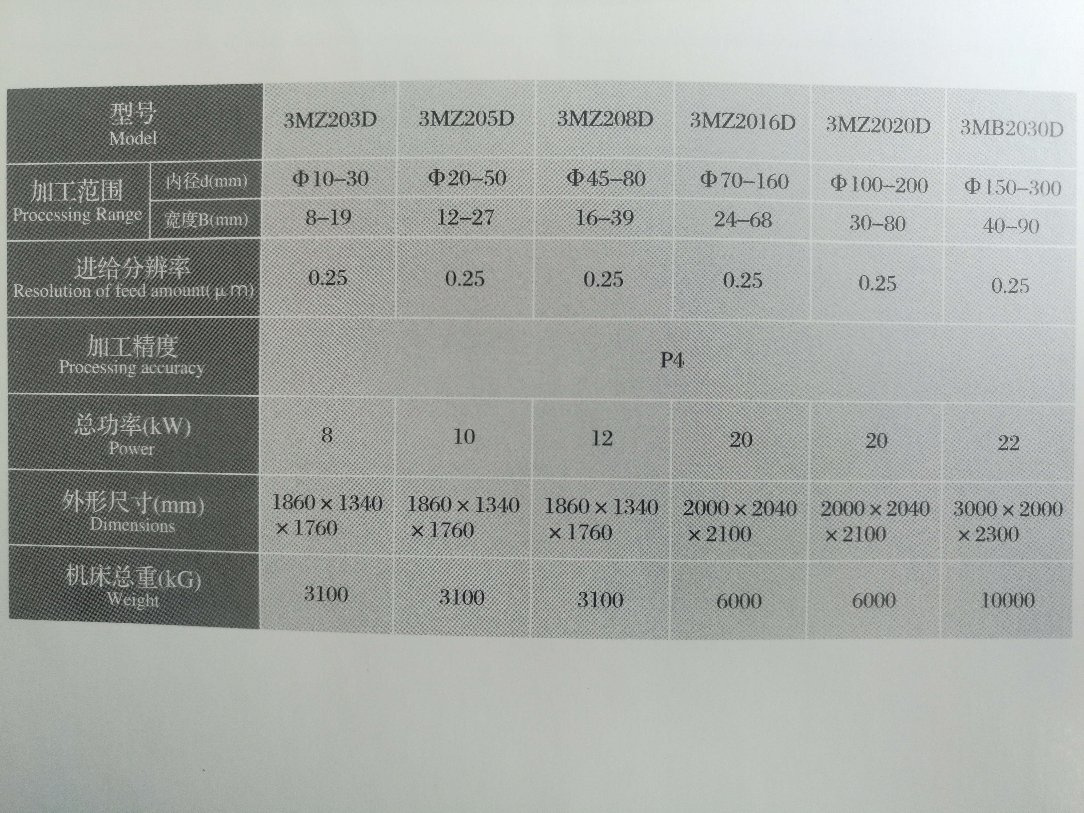

Model list of full automatic internal grinding machine

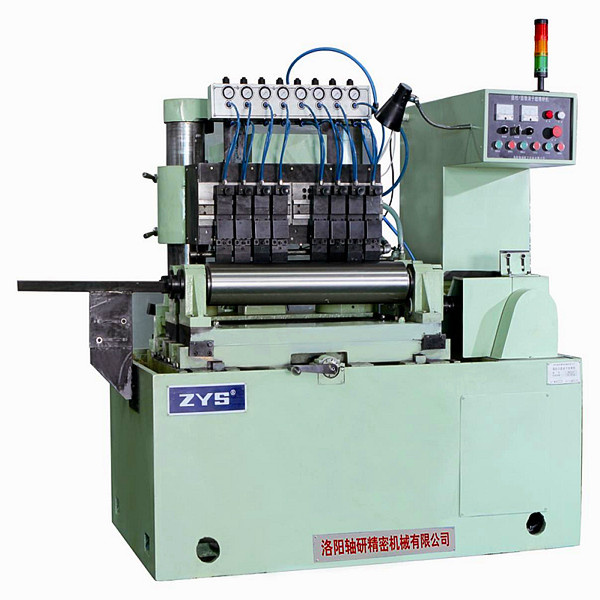

III. The superfinishing machine
Main features of the superfinishing machine
This series of superfinishing in the way of centerless through-feed machine the surface, including the needle roller, cylindrical roller, taper roller, bearing ring, oil-needle, piston, spool etc.
After grinding process, the superfinishing process can improve the surface quality and the geometrical precision; the machines have high efficiency, precision and reliability, etc. It is widely used in the industry of bearing, car, motorcycle, pin valve oil pump and hydraulic parts, especially suited for superfinishing the crown of taper roller and cylindrical roller.

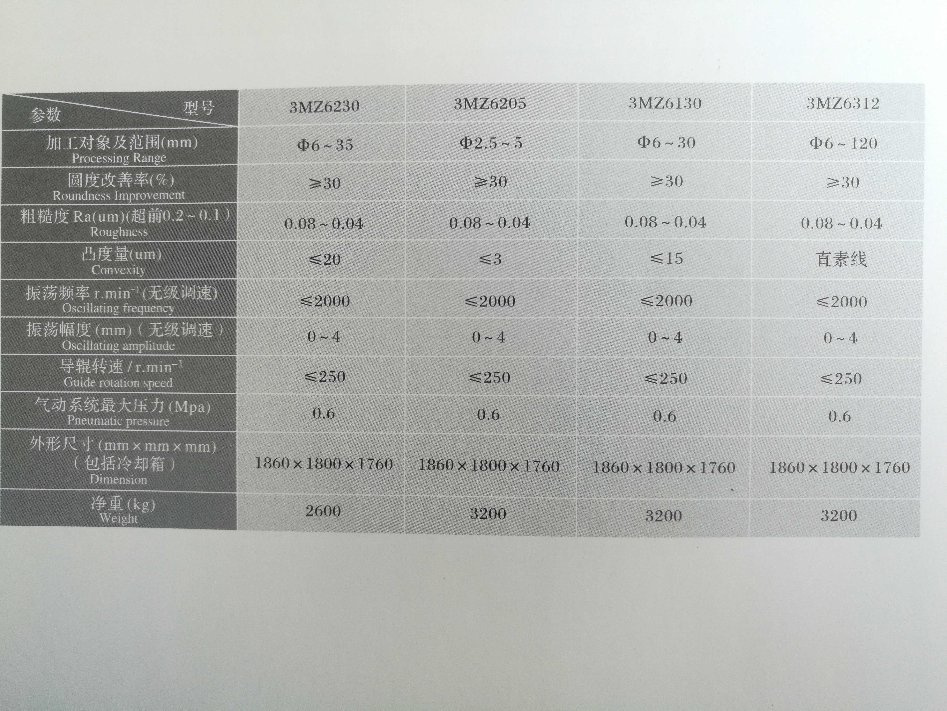

Through special designing and processing of guide roller, we can acheive several types of rollers, such as arc full crown type, logarithmic type. Model list of superfinishing machine
OTHER HOT SALE PRODUCTS |
| High precision angular contact ball bearing Precision spindle bearing |
| Hybrid ceramic bearing Slewing bearing |
| Cylindrical roller bearing Needle roller bearing |
| Taper roller bearing Precision lathe bearing |
| Bearing measuring instrument YRT rotary table bearing |
| High-frequency spindles Dental drill bearing |
| Bearing ball Bearing making machine |
| etc. |
| Material: GCr15,9Cr18,G20CrMo or others |
| Certificate: GB/T19001-2000(ISO9001:2000), GJB/Z9001A-2001, GJB9001A-2001 |
ZYS Core values: Integrity, rigor, innovation, mutual benefit.
ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.
ZYS Advantage
ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments,but also has strong strength of manufacturing,inspecting and testing the high-precision and high-reliability bearings and relevant spare parts.In the meantime,it always keeps a leading position in bearing basic theory,lubrication technology,design,material,test,information criterion and other aspects.
Glory
Top 200 most promising companies of China in Forbes
Top 500 in China Machinery Industry
Excellent Enterprise with China Well-know Trademark
High-performance Bearings Laboratory
State Quality Supervision and Testing Center for Bearing
ISO/TC4 China Secretariat
The Research Center for High-speed Precision Bearing Engineering in Machinery Industry
......
We would like to and ready to do business with any company from all over the world.If any of ZYS products interests you or if you have interests in ZYS company,please don't hesitate to contact with us,we would like to give you ZYS best quality service any day any time !
Contact us
Address: No.1 Jilin Road, Luoyang City, Henan, Province, China.
Zip Code:471039
Website: www.zysbearing.com/www. zys-bearing.com
Luoyang Bearing Science & Technology Co., Ltd. Is a high-tech enterprise, which focuses on the research and development of "high-tech, precise, cutting-edge, specialized and special" bearing products, which are applied to the mainframes of national economic construction in various fields and national defense construction.
The company was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. Was established in 2001. Having completed strategic restructuring, it became a science and technology listed company which was regulated as a whole. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.
The company has achieved 864 scientific payoffs in total, among which there are 31 national awards including National Invention Award and National Science and Technology Progress Awards, as well as 219 provincial and ministerial science and technology achievement awards. The company has built a series of standard systems for spindle unit products in machine tool industry and for national military bearing. The standards of military bearings for aviation, spaceflight, navigation, nuclear industry and other military uses have also been formulated. We have the authorized patents 499 items. These scientific payoffs and high-tech products stimulate technology progress in China bearing industry, promoting extensive application in bearing industry, national defense and national economic construction.
The company has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. The "high-tech, precise, cutting-edge, specialized and special" bearing products have been widely applied to aviation, spaceflight, navigation, machine tool, wind turbine generator, metallurgy, petroleum, chemical, medical treatment, rail transport, automobile, textile, and other fields.
