| Prod Model: |
YT-28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yt28 |
| Weight: |
26kgs |
| Length: |
661mm |
| Working Pressure: |
0.4-0.63MPa |
| Type: |
Mini Drill |
| Drill Brand: |
China Coal |
Product Description
Application of Light Weight Portable Hand Held Yt-28 Pneumatic Air Leg Rock DrillThe Light Weight Portable Hand Held Yt-28 Pneumatic Air Leg Rock Drills are mainly used in construction sites, various type of mines, water conservancy construction and national defense construction areas for mining operations.
Feature of Light Weight Portable Hand Held Yt-28 Pneumatic Air Leg Rock Drill
The Light Weight Portable Hand Held Yt-28 Pneumatic Air Leg Rock Drills apply in hard rock on the rock operation. It has strong adaptability to the working conditions. The product is energy efficiency, its components has long life and durable. The machine can be generally used with the same type, it can greatly reduce the customer loss for spare part replacement.
Parameter of Light Weight Portable Hand Held Yt-28 Pneumatic Air Leg Rock Drill| Weight | 26kgs |
| Lengh | 661mm |
| Cylinder diameter | 80mm |
| Plunger diameter | 60mm |
| Working pressure | 0.4-0.63Mpa |
| Impact frenquency | ≥37Hz |
| Air consumption | ≤81L/S |
| air pipe diameter | 25mm |
| water pipe diameter | 13mm |
| Drill bit diameter | 34-42mm |
| Drill rod size | 22×108±1mm |
| FT160BD small air leg | |
| Air leg length | 1400mm |
| Stroke | 965mm |
| Cylinder inner diameter | 65mm |
| Weight | 14.4kgs |
| FT160BC long air leg | |
| Air leg length | 1800mm |
| Stroke | 1365mm |
| Cylinder inner diameter | 65mm |
| Weight | 169kgs |

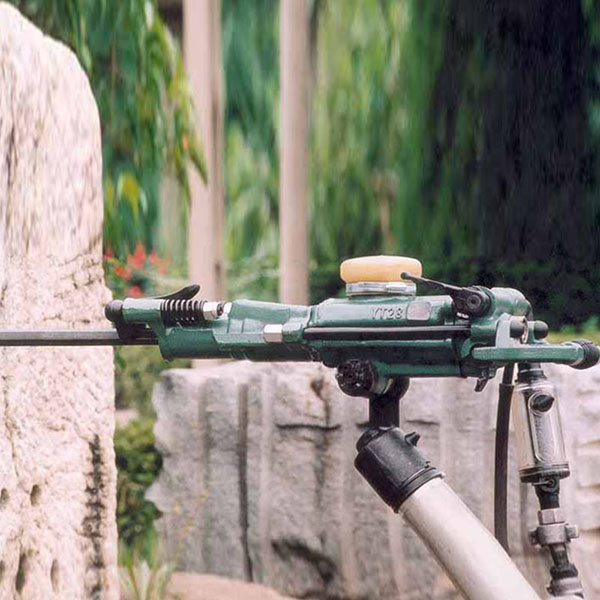

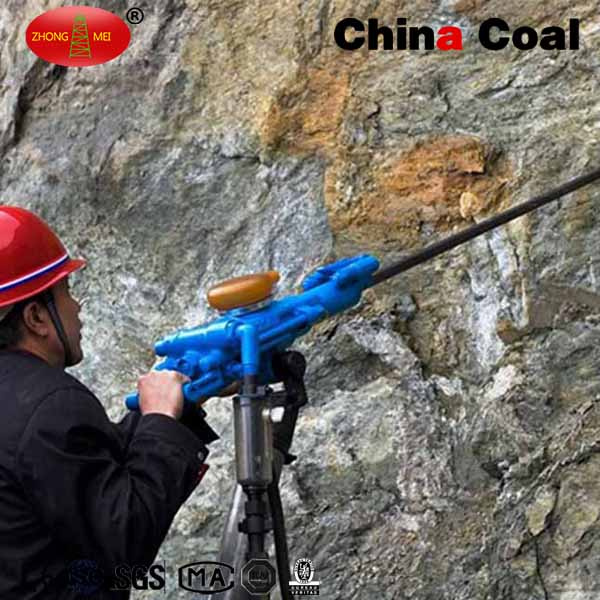

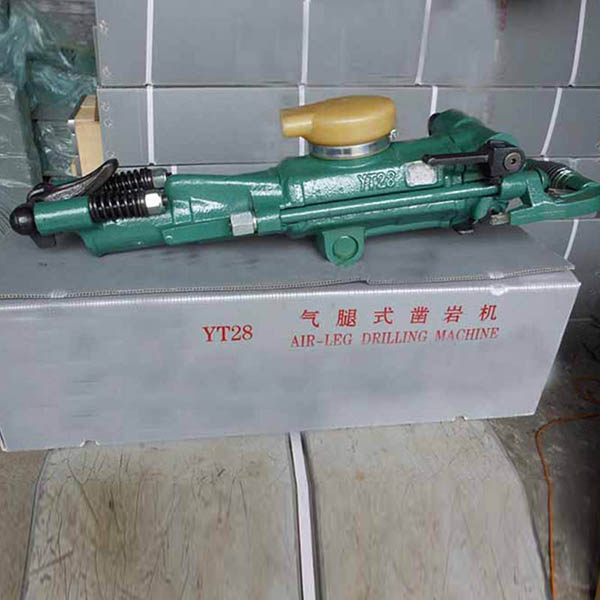

Photos Of Light Weight Portable Hand Held Yt-28 Pneumatic Air Leg Rock Drill
