| Prod Model: |
KET-P Series |
| Working Pressure: |
700bar |
| Outlet: |
1/4 NPT or 3/8NPT |
| Capacity: |
350-2200ml |
| Weight: |
1.9-11.8kg |
| Certification: |
Ce, ISO9001:2008 |
| Delivery Time: |
3-10 Days After Receive Payment |
| OEM: |
Yes |
| Color: |
Customized |
| Product Name: |
Lightweight and Steel Hydraulic Hand Pump |
| Warranty: |
One Year |
| Structure: |
Piston Pump |
| Power: |
Hydraulic |
| Application: |
Oil Transfer Pump |
| Material: |
Steel or Engineering Plastic |
| Assembly: |
- |
| Type: |
Hydraulic Electric Pump |
| Media: |
Hydraulic Pump |
| Performance: |
Hydraulic Hand Pump |
| Theory: |
- |
Product Description
Lightweight and Steel Hydraulic Hand Pump
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product Description for Hand Operate Hydraulic Pump :
? Two-speed operation for reduced operator fatigue
? 4-way valving on the P-84 for operation of double-acting cylinders
? External load release valve on remaining models for
single-acting cylinder operation
? Internal pressure relief valve for overload protection
? Large oil capacity to power a wide range of cylinders or tools
4-Way Control Valve:
P-84 feature a manual 4-way control valve,
designed for use with one double-acting or two single-acting cylinders. For system set-up information
Parameter for P Series Hydraulic Hand Pump :
Model Number | Pump Type | Usable Oil Capacity(ml) | Pressure(bar) | Oil Displacement per stroke(ml) | Max handle effort(kg) | Working Pressure(bar) |
| 1st stage | 2nd stage | 1st stage | 2nd stage |
| KET-P-142 | two-speed | 350 | 13.8 | 700 | 32 | 1.6 | 2.2 | 700 |
| KET-P-392 | two-speed | 901 | 13.0 | 700 | 32 | 1.6 | 4.0 | 700 |
| KET-P-80 | two-speed | 2200 | 25 | 700 | 16.22 | 2.46 | 10.9 | 700 |
| KET-P-84 | Two-Speed | 2200 | 34 | 700 | 16.39 | 2.46 | 11.8 | 700 |
| KET-P462 | Two-speed | 7423 | 14 | 700 | 126.20 | 4.75 | 49 | 700 |
| KET-P464 | Two-speed | 7423 | 14 | 700 | 126.20 | 4.75 | 49 | 700 |
Photos:

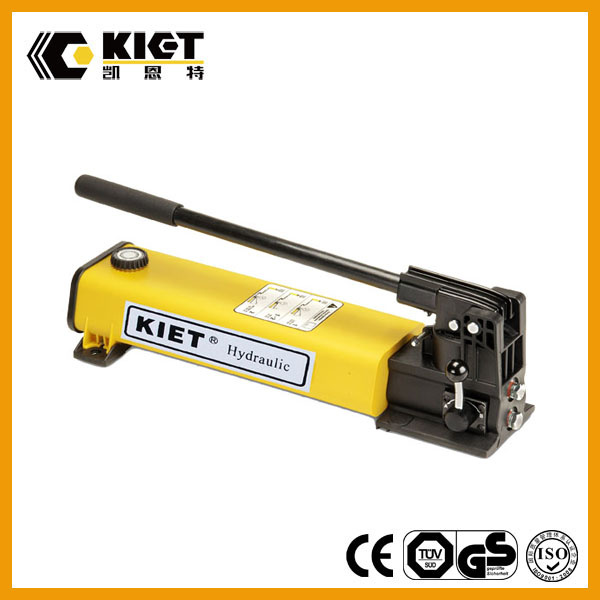

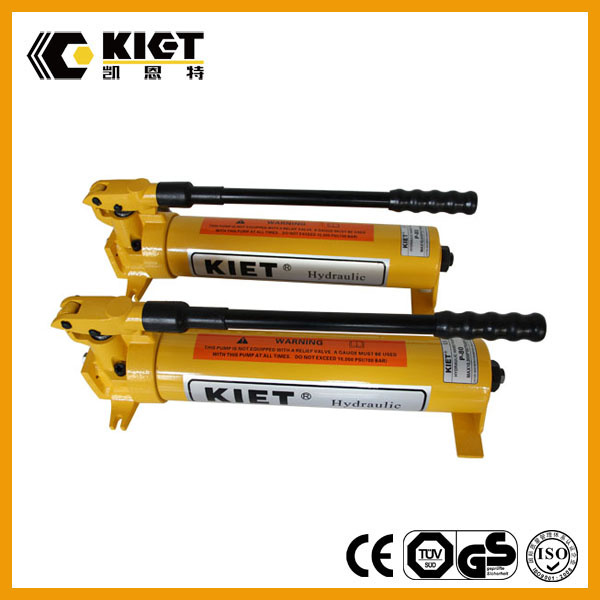

P142 and P392

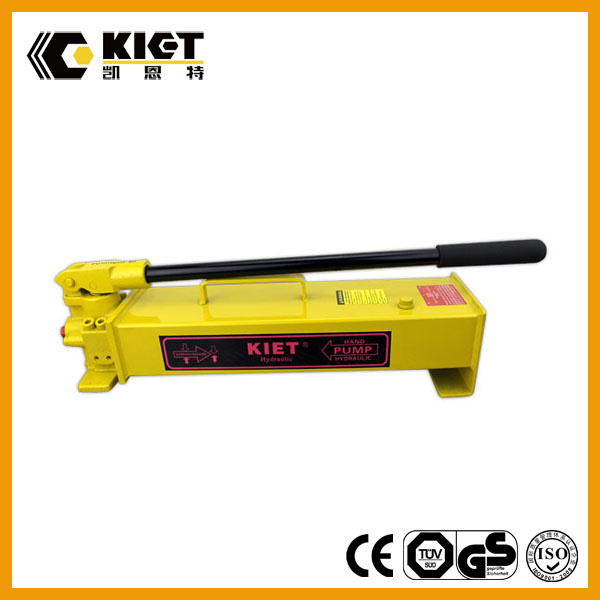

P80
P84

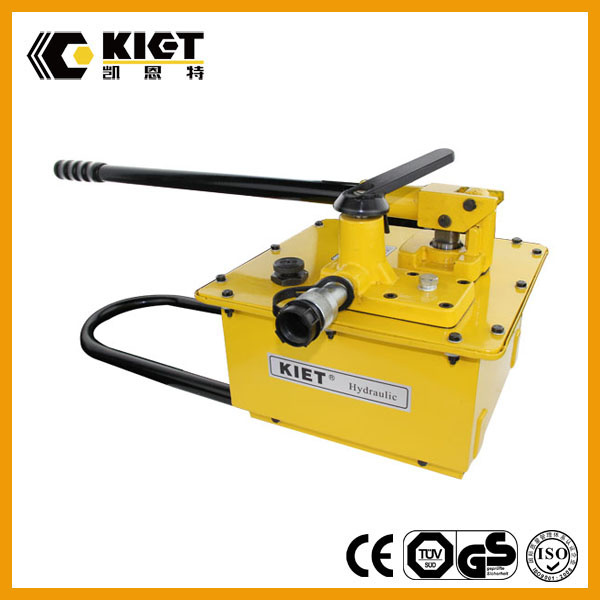

P462 and P464
Brife Information of KIET:
Jiangsu Canete Machinery Manufacturing Co.,Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pmps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Certificates:
CE, ISO9001:2008
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Packaging & Shipping:
We Provide Standard wooden box for export , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
Our Service:
KIET provide one year guarantee for all the hydraulic Pump. We promise if there is any Problems of the hydraulic pump during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
More Information and questions please contact me as below:
Contact :Ms. Helen Tong(sales director)
Mobile number: +86 18121376369
Tel:+86-21-68565866
Web: http://www.chinakiet.com/EN/
Welcome to visit our factory !
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
