| Prod Model: |
LA312 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
Dual 12inch, Three-Way Line Array Speaker |
| Frequency Range: |
40Hz -- 20kHz |
| Horizontal Coverage Angle: |
90 |
| Vertical Coverage Angle: |
10 |
| Certification: |
RoHS |
| Application: |
Commercial |
| THD: |
<0.03% |
| Noise: |
<95dB |
Product Description

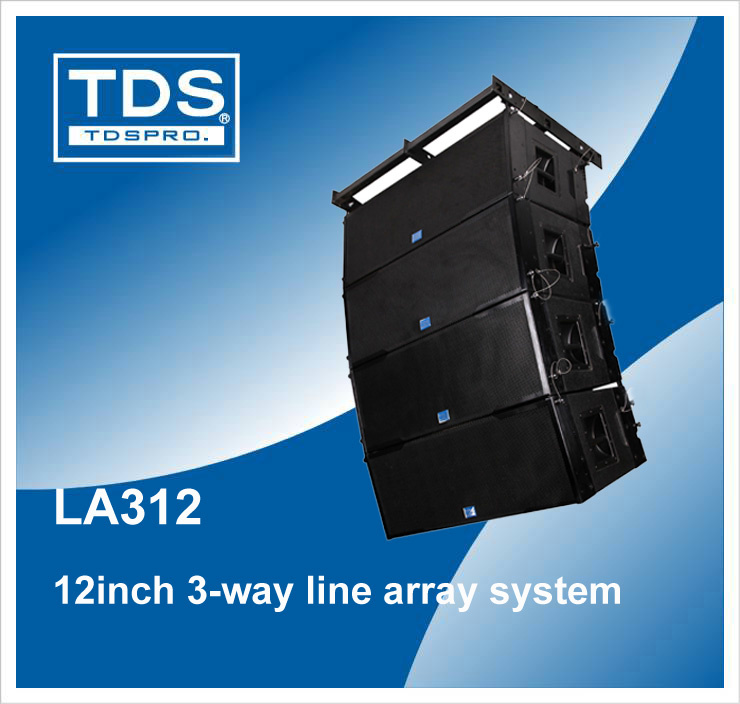

Line Array Speaker LA312
The LA312--dual 12'' line array is designed to deliver high quality sound reinforcement of full-range frequencies for live music and a variety of applications. The system both suitable for mobile performance and also fix installation such as stadium, gymnasium, theatre,church, hall etc.
Features
Dual12inch three-way line array speaker.
Three units neodymium compression driver with 44mm voice coil.
High efficiency 6.5inch neodymium MF transducer.
Fast installation rigging system.
More choices for vertical coverage angle.
Applications

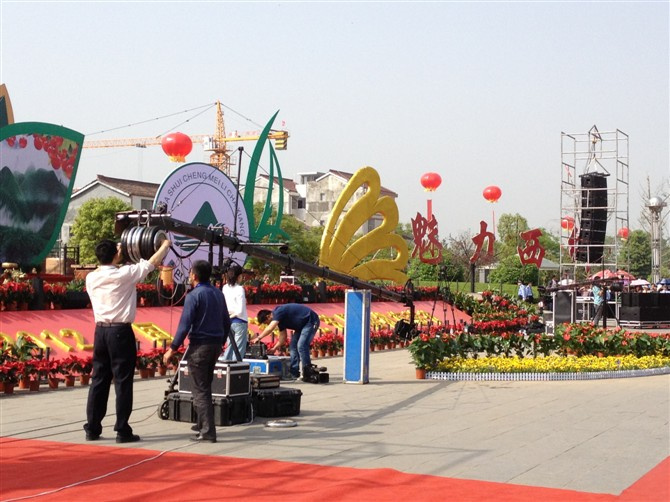

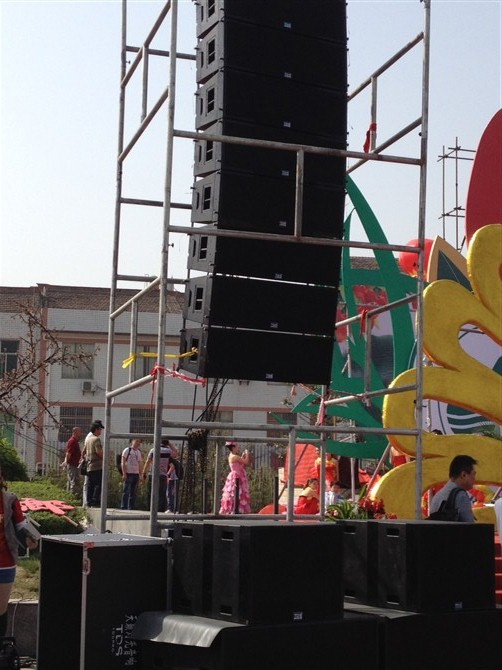

Large scale indoor & outdoor performance

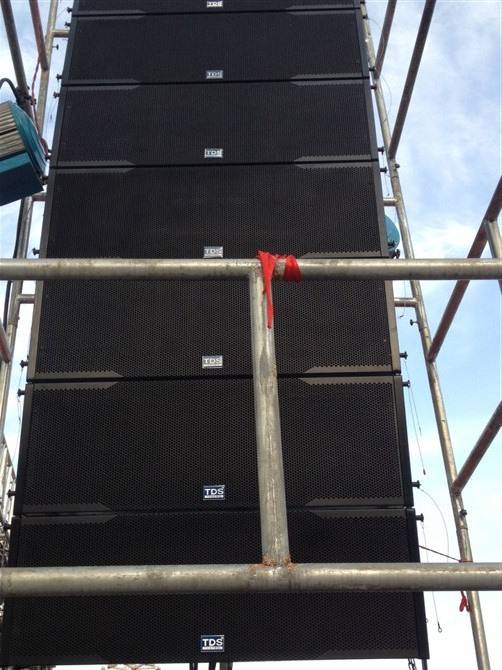

Fixed installation in stadium, theatre etc.
Large scale mobile performance.
TECHNICAL SPECIFICATION
|
|
Frequency Range (-10dB) |
40Hz -- 20KHz |
|
Frequency Response(±3dB) |
60Hz -- 18KHz |
|
Horizontal Coverage Angle (-6dB) |
90° |
|
Vertical Coverage Angle(-6dB) |
10° |
|
System Input Power Rating |
LF: 800W Continuou. 1600W Peak. |
|
MF: 300W Continuou. 600W Peak. |
|
HF: 180W Continuou. 360W Peak. |
|
Maxium Peak Output |
139 dB |
|
Recommended Amplification |
LF 1200W into 8 ohm. |
|
MF 800W into 8 ohm. |
|
HF 600W into 8 ohm. |
PHYSICAL DATA
|
|
Dimensions ( W x H x D ) |
1120 x 390 x 500 mm |
|
Net Weight |
56 kg |
|
Connectors |
2 x NL8MP Neutrik Speakon Connectors |
|
Cabinet Material |
18mm Birch Plywood |
