| Prod Model: |
W8LC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
12inch, Three-Way Line Array System |
| Frequency Range: |
60Hz -- 18kHz |
| Horizontal Coverage Angle: |
90 |
| Vertical Coverage Angle: |
7.5 |
| Noise: |
<95dB |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.03% |
Product Description

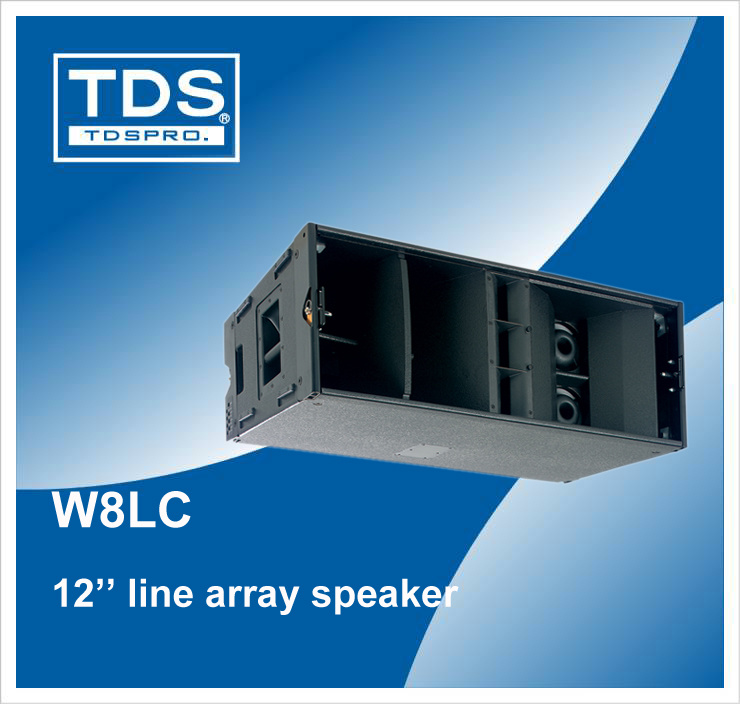

Three-way Line Array System Speaker W8LC
Features
High power maximum SPL 129 dB continuous, 135dB peak.
Compact, high performance three-way line array enclosure.
Superior bass impact all horn design.
Wide bandwidth 60Hz-18kHz± 3 dB (single unit).
True 90° (-6dB) horizontal MID and HF pattern control.
Very smooth off axis response useable out to 120° (10dB).
Fast, integral rigging system with variable splay angles.
Common grid may be used for flying or ground stacking.
Loudspeaker management preset files for a wide variety of configurations.
Applications
Medium/large scale touring, theatre, stadia, club.
Compatible with WL218, SRX728.
TECHNICAL SPECIFICATION
|
| Frequency Range(-10dB) | 40Hz -- 20KHz |
| Frequency Response(± 3dB) | 60Hz -- 18KHz |
| Horizontal Coverage Angle(-6dB) | 90° |
| Vertical Coverage Angle(-6dB) | 7.5° |
| System Input Power Rating | LF: 400W Continuous. 800W Peak |
| MF: 200W Continuous. 400W Peak |
| HF: 100W Continuous. 200W Peak |
| Maximum Peak Output | LF: 129dB Continuous. 139dB Peak |
| MF: 129dB Continuous. 139dB Peak |
| HF: 129dB Continuoud. 139dB Peak. |
| Recommended Amplification | LF: 800W into 8 ohms |
| MF: 600W into 8 ohms |
| HF: 300W into 8 ohms |
PHYSICAL DATA |
| Dimensions (W x H x D) | 1000 x 367 x 550mm |
| Weight (net) | 52 kg |
| Connectors | 2 x NL8MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.

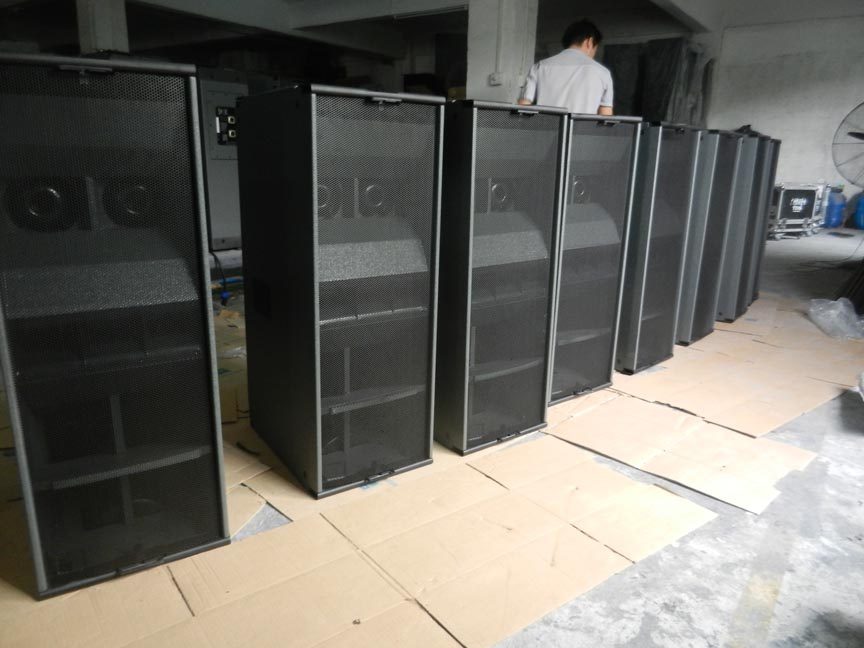

From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
