Lock Nut Hydraulic Lifting Cylinder for Machines
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
KET-CLL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cylinder Capacity: |
50 (496)--1000 (10260)Kn |
| Stroke: |
50-300mm |
| Cylinder Effective Area: |
70, 9-1466, 4 Cm2 |
| Oil Capacity: |
355-43980 Cm3 |
| Collapsed Height (a): |
164-745mm |
| Extended Height (B): |
214-1045mm |
| Outside Diameter (D): |
125-560mm |
| Weight: |
15-1430kg |
| Material: |
Steel |
| Structure: |
Plunger Cylinder |
| Power: |
Hydraulic |
| Standard: |
Standard |
| Pressure Direction: |
Single-acting Cylinder |
| Usage: |
Construction |
Product Description

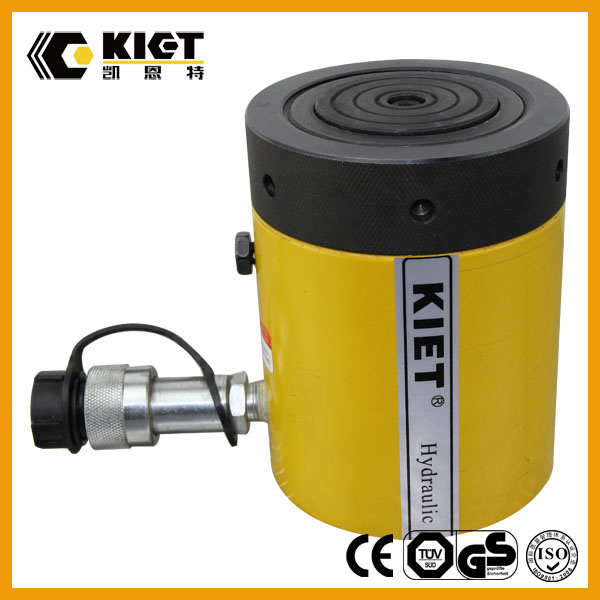

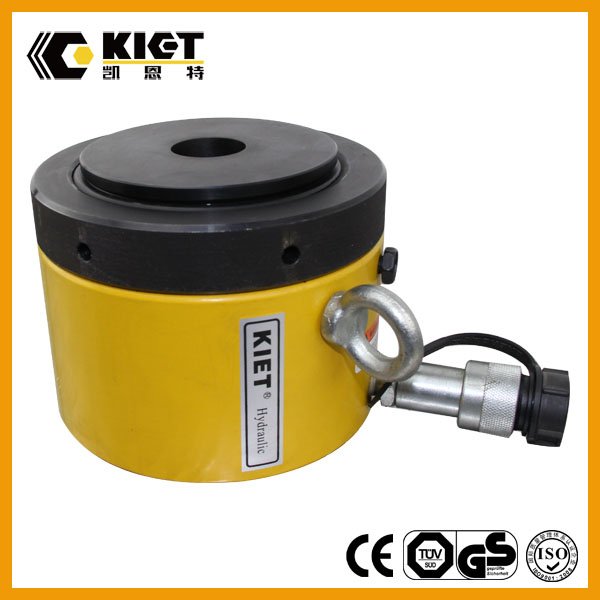

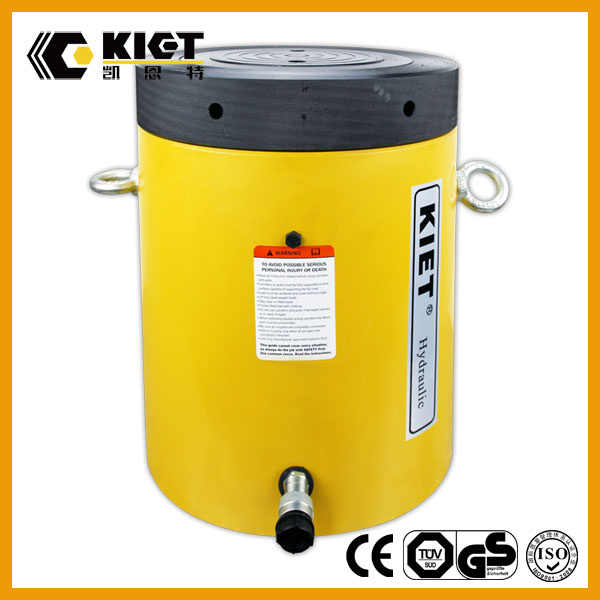

Lock Nut Hydraulic Lifting Cylinder for Machines KIET safety lock nut cylinders for mechanical load holding for up to 1,000 tons
Baked enamel outside finish and plated pistons provide superior corrosion resistance
Overflow port functions as a stroke limiter
Interchangeable, hardened grooved saddles are standard
CR-400 coupler and dust cap included on all cylinder models
Single-acting load return
Parameter| Model Number | Cylinder
Capacity | Stroke | Cylinder
Effective Area | Oil
Capacity | Collapsed
Height
(A) | Extended
Height
(B) | Outside
Diameter
(D) | Weight |
| | ton (kN) | mm | cm2 | cm3 | mm | mm | mm | kg |
| KET-CLL-502 | 50
(496) | 50 | 70,9 | 355 | 164 | 214 | 125 | 15 |
| KET-CLL-504 | | 100 | 70,9 | 709 | 214 | 314 | 125 | 20 |
| KET-CLL-506 | | 150 | 70,9 | 1064 | 264 | 414 | 125 | 25 |
| KET-CLL-508 | | 200 | 70,9 | 1418 | 314 | 514 | 125 | 30 |
| KET-CLL-5010 | | 250 | 70,9 | 1773 | 364 | 614 | 125 | 35 |
| KET-CLL-5012 | | 300 | 70,9 | 2127 | 414 | 714 | 125 | 40 |
| KET-CLL-1002 | 100
(929) | 50 | 132,7 | 664 | 187 | 237 | 165 | 30 |
| KET-CLL-1004 | | 100 | 132,7 | 1327 | 237 | 337 | 165 | 39 |
| KET-CLL-1006 | | 150 | 132,.7 | 1991 | 287 | 437 | 165 | 48 |
| KET-CLL-1008 | | 200 | 132,7 | 2654 | 337 | 537 | 165 | 56 |
| KET-CLL-10010 | | 250 | 132,7 | 3318 | 387 | 637 | 165 | 64 |
| KET-CLL-10012 | | 300 | 132,7 | 3981 | 437 | 737 | 165 | 73 |
| KET-CLL-1502 | 150
(1390) | 50 | 198.6 | 993 | 209 | 259 | 205 | 53 |
| KET-CLL-1504 | | 100 | 198,6 | 1986 | 259 | 359 | 205 | 66 |
| KET-CLL-1506 | | 150 | 198,6 | 2979 | 309 | 459 | 205 | 78 |
| KET-CLL-1508 | | 200 | 198,6 | 3972 | 359 | 559 | 205 | 92 |
| KET-CLL-15010 | | 250 | 198,6 | 4965 | 409 | 659 | 205 | 104 |
| KET-CLL-15012 | | 300 | 198,6 | 5958 | 459 | 759 | 205 | 117 |
| KET-CLL-2002 | 200
(1859) | 50 | 265,6 | 1330 | 243 | 293 | 235 | 83 |
| KET-CLL-2006 | | 150 | 265,6 | 3989 | 343 | 493 | 235 | 117 |
| KET-CLL-20012 | | 300 | 265,6 | 7995 | 493 | 793 | 235 | 170 |
| KET-CLL-2502 | 250
(2562) | 50 | 366,1 | 1832 | 249 | 299 | 275 | 116 |
| KET-CLL-2506 | | 150 | 366,1 | 5496 | 349 | 499 | 275 | 162 |
| KET-CLL-25012 | | 250 | 366,1 | 10995 | 449 | 799 | 275 | 234 |
| KET-CLL-3002 | 300
(3193) | 50 | 456,2 | 2281 | 295 | 345 | 310 | 173 |
| KET-CLL-3006 | | 150 | 456,2 | 6843 | 395 | 545 | 310 | 233 |
| KET-CLL-30012 | | 300 | 456,2 | 13740 | 545 | 845 | 310 | 323 |
| KET-CLL-4002 | 400
(3919) | 50 | 559,9 | 2800 | 335 | 385 | 350 | 250 |
| KET-CLL-4006 | | 150 | 559,9 | 8399 | 435 | 585 | 350 | 327 |
| KET-CLL-40012 | | 300 | 559,9 | 16800 | 585 | 885 | 350 | 441 |
| KET-CLL-5002 | 500
(5118) | 50 | 731,1 | 3656 | 375 | 425 | 400 | 367 |
| KET-CLL-5006 | | 150 | 731,1 | 10959 | 475 | 625 | 400 | 466 |
| KET-CLL-50012 | | 300 | 731,1 | 21930 | 625 | 925 | 400 | 617 |
| KET-CLL-6002 | 600
(5983) | 50 | 854,8 | 4277 | 395 | 445 | 430 | 446 |
| KET-CLL-6006 | | 150 | 854,8 | 12830 | 495 | 645 | 430 | 562 |
| KET-CLL-60012 | | 300 | 854,8 | 25650 | 645 | 945 | 430 | 737 |
| KET-CLL-8002 | 800
(8238) | 50 | 1176,9 | 5882 | 455 | 505 | 505 | 709 |
| KET-CLL-8006 | | 150 | 1176,9 | 17645 | 555 | 705 | 505 | 870 |
| KET-CLL-80012 | | 300 | 1176,9 | 35370 | 705 | 1005 | 505 | 1110 |
| KET-CLL-10002 | 1000
(10260) | 50 | 1466,4 | 7329 | 495 | 545 | 560 | 949 |
| KET-CLL-10006 | | 150 | 1466,4 | 21986 | 595 | 745 | 560 | 1141 |
| KET-CLL-100012 | | 300 | 1466,4 | 43980 | 745 | 1045 | 560 | 1430 |
Company Information

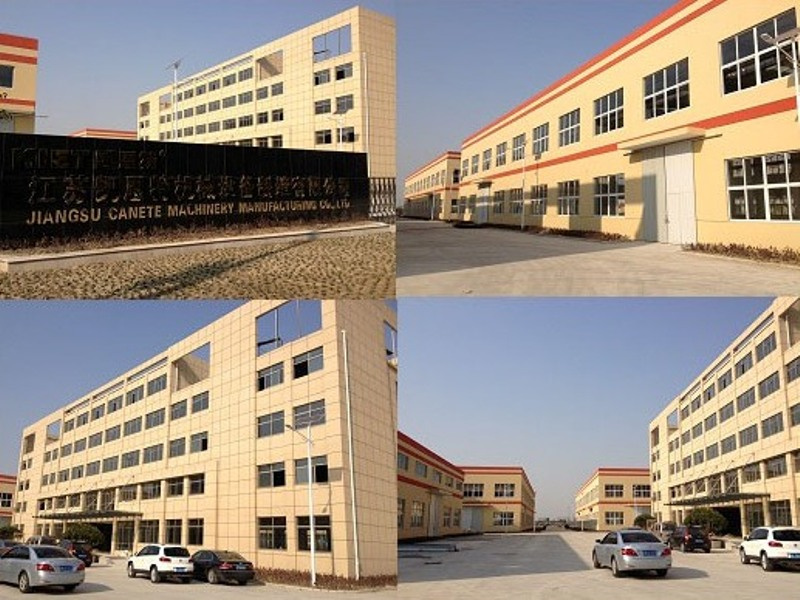

Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our service
KIET provide one year guarantee for all the hydraulic cylinder. We promise if there is any disfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded within 24 hours.
Contact Information:
Contact Person: Handy Han
Mobile: +86 1800-5263-911
Office: +86-523-81569666
Fax: 86-523-86186999/86183388
Website:www.kaientehydraulic.com
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
