Low Power Consumption Y41 200t Hydraulic Punch Press Machine
| Price: |
US $ 1300-69999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Y41 |
| Name: |
Hydraulic Punch Press Machine |
| PLC: |
Omron |
| Motor: |
Siemens Beide |
| Function: |
Metal Processing |
| CNC Feeding System: |
Available |
| Material: |
Aluminum, Ss, Ms, etc |
| Application: |
Metal Forming |
| Color: |
Optional |
| Hydraulic Valve: |
Rexroth |
Product Description

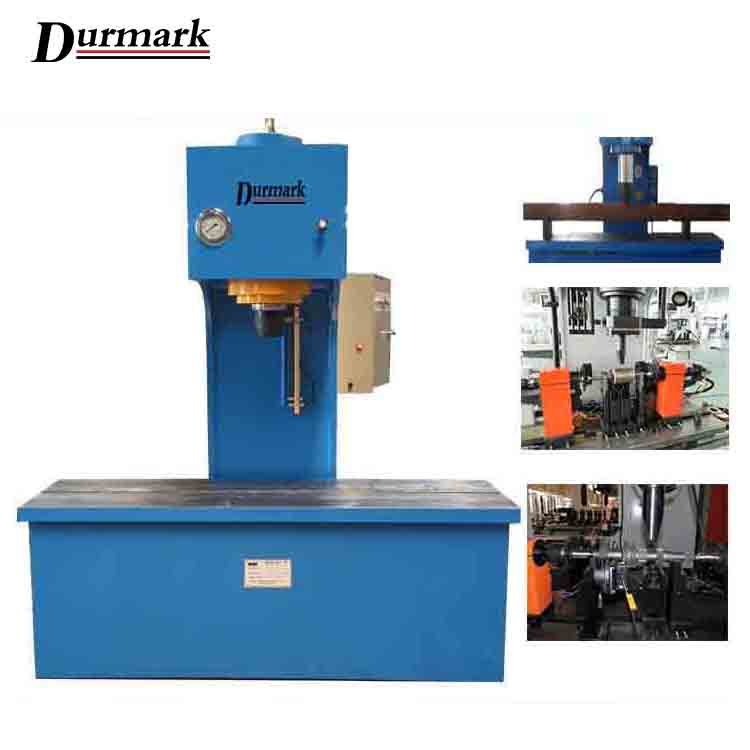

Low power consumption Y41 200T hydraulic punch press machine
One kind of multifunctional medium-small hydraulic press.
It can be used in bearings and moulding, also suitable for bearings and sleeves.
At the same time,the machine can complete the technology function of bending, shelling of plate material parts, stretching of simple parts, pressing powder, plastic products, etc.
It is mainly suitable for metal sheet curveting, flattening, stretching, stamping, shaft parts coupling, powder and plastic forming. This product is applied in the machine tool, automotive, motor vehicles, air-conditioned shell, mechanical bearings, powder metallurgy, and plastic industry.
| No | Name | Y41-100T |
| 1 | Nominal force(KN) | 1000 |
| 2 | Max open height(mm) | 800 |
| 3 | System working pressure(Mpa) | 25 |
| 4 | Throat depth (mm) | 330 |
| 5 | Slide stroke (mm) | 500 |
| 6 | Down(mm/s)
Slide speed Return(mm/s)
Work(mm/s) | 60 |
| 7 | 60 |
| 8 | 8-12 |
| 9 | Worktable size (mm) | 650*800 |
| 10 | Dimension(mm) | 1450*1000*2800 |
| 11 | Motor power(KW) | 7.5 |
Main Features
1. Single column C-frame structure hydraulic presses to make work safely.
2. Entire steel welded with tempering treatment for stable.
3. Cartridge valve integrated hydraulic system: long service life, return leak point.
4. Hydraulic system equipped with pre-release device to reduce hydraulic force impact.
5. Operation button centralized control and equipped with adjusting and semi-auto model.
6. Equipped with single-constant stroke and pressure function.
7. CNC control system makes working efficiently.Packing & Delivery Plastic film, wooden package, or as requirement.

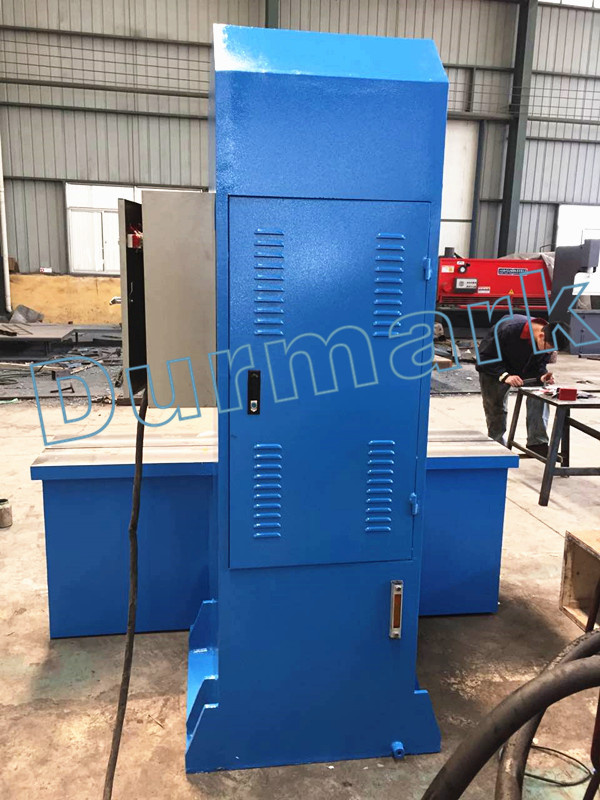

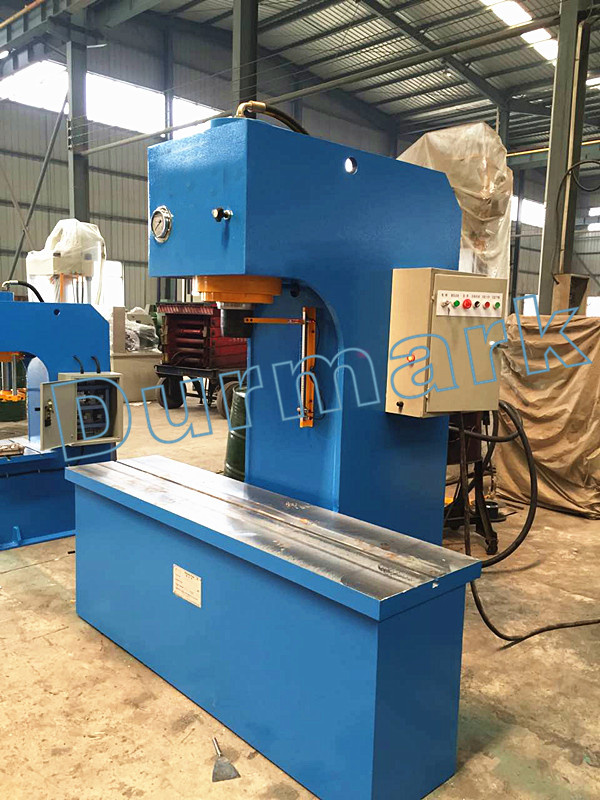

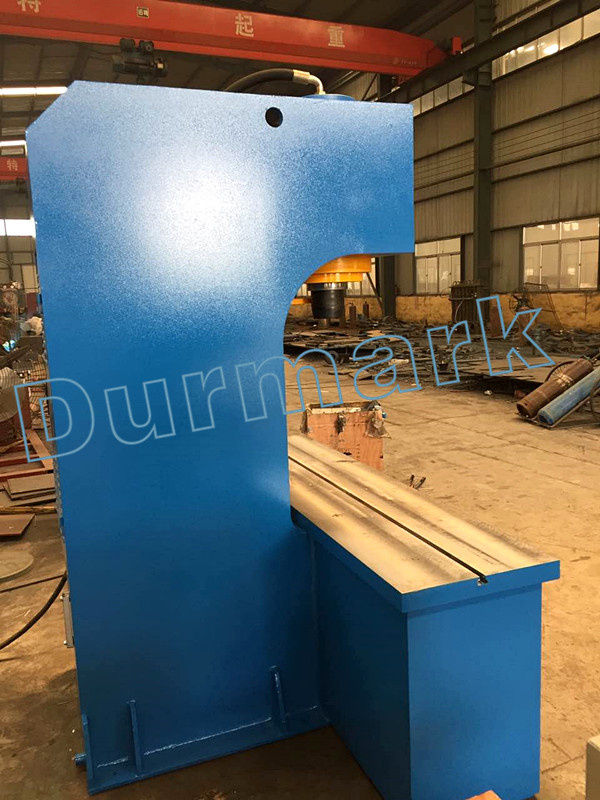

Delivery Detail: 15 daysDetailed Images

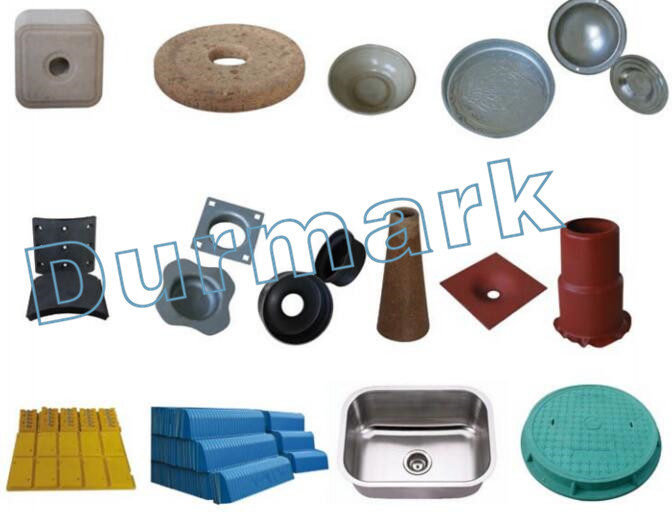

Main application
Our ServicePre-sales Service:
1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.After-sales Service:
1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .FAQHow about your machine quality? We are worry about the quality.RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.Whether the machine price can be more discount?RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.Contact
