| Price: | US $ 2000-20000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | XLCT Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

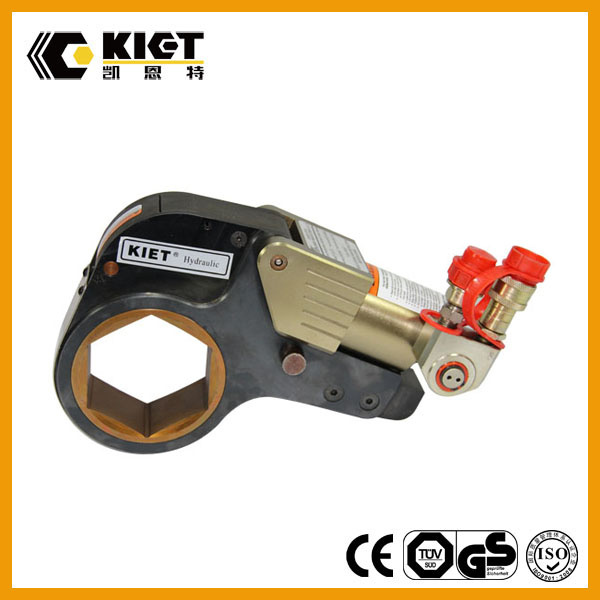

| Product Name: | Low Profile Hexagon Torque Wrench |
| Maximum Pressure: | 700 Bar |
| Min. Torque: | 232-4188 Nm |
| Max. Torque Range: | 2328-41882nm |
| Bolt Size: | 16-36 to 76-115mm |
| Nut Size: | 24-55 to 110-165mm |
| Color: | Customize |
| Warranty: | One Year |
| Delivery Time: | 7 Days After Receive Payment |
| OEM: | Yes |
| Type: | Hex Wrench |
| Material: | Aluminum Alloy |
| Standard: | European Type |
| Surface Treatment: | Titanizing |
| Feature: | Ordinary |
| Brand: | Kiet |
| Handle Color: | Customize |
| Working Mode: | - |

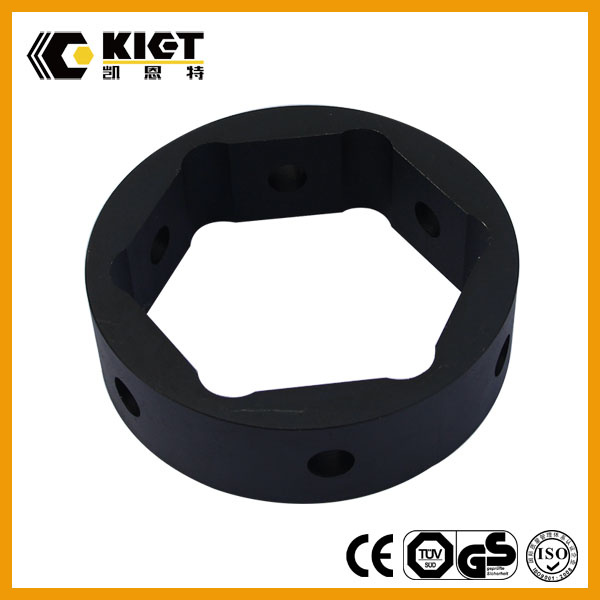

To fulfill all different working situations, the user can just replace the hexagon cassette because
Features:
The innovative wrench structure without pin joint matches with rapid unloading hydraulic piston and automatic crank
The 360º×180º rotating hose coupling has no limitation in used space, convenient to operate.
The hydraulic piston and power head have small shape, with light weight, compact structure and small operating radius.
The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
The reactive force is on one straight line, which can decrease the inner torque abrasion
The constant torque output provides the high precision for wrench in the whole working process.
The maintenance is simple and does not need the special tools.
The torque wrench surface has a good corrosion resistant performance after the nickel plating treatment.
Parameter:
| Model | KET-2XLCT | KET-4XLCT | KET-8XLCT | KET-14XLCT | KET-30XLCT |
| Torque Nm | 232~2328 | 585~5858 | 1094~ 10941 | 1852~ 18521 | 4188~ 41882 |
| Bolt diameterM(mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| ScrewS(mm) | 24-55 | 36~65 | 46~95 | 50~110 | 110~165 |
| Rotary head Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 30XLCT |
| Working head model | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 30XLCTA- |
| Weight(kg) | 2.4 | 5.0 | 9.3 | 16.9 | 30.9 |
| L(mm) | 196.4 | 245 | 300 | 361 | 430 |
| H1(mm) | 125.9 | 177 | 207 | 239 | 303 |
| H2(mm) | 102.3 | 135.7 | 170 | 203 | 272 |
| W1(mm) | 32 | 42 | 53 | 64 | 85 |
| W2(mm) | 51 | 66 | 83 | 99 | 131 |

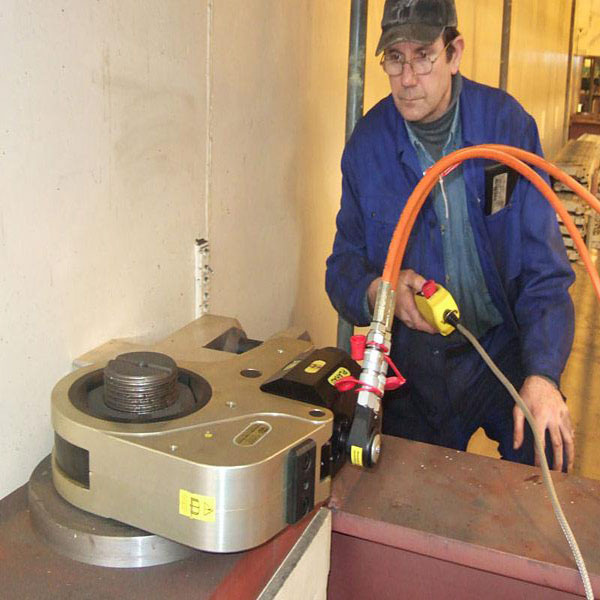

Application
Certificates: ISO9001:2008; CE
Factory:
FAQ
Q1: How can contact sales?
A1: Please call: +86-523-81569666 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: Can I have Kiet products catalog and price list?
A3: Please visit our English website: www.chinakiet.com/en to download our E-catalog, and send us an email for price list
Q4: How long does it take to get the product If I place an order?
A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.
Q5: How to make payment?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.
Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
Why Choose Kiet?
Quality --- KIET has been in the industry for than 20 years. We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.
Service --- KIETpromised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.
