| Prod Model: |
LSQ-S1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interchangeability: |
ISO 7241-1 Series "a", Poppet Valve |
| Mechanical Connection: |
Locking Balls |
| Size: |
From 1/4' to 2', All Threads Are Available |
| Working Pressures: |
From 2000 Psi to 5000 Psi |
Product Description
LSQ-S1 CLOSE TYPE HYDRAULIC QUICK COUPLING(STEEL)
Applications:
The LSQ-S1 Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment steel mill machinery,and other demanding hydraulic applications.
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Rated Pressure (PSI) | 5000 | 4000 | 4000 | 3000 | 3000 | 3000 | 2000 | 2000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 220 | 240 |
| Temperature Range (std seals) | -20ºC+120ºC |
| Standard seal material | NBR |
LSQ-S1 Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.LSQ-S1 series conforms to the standard of ISO7241-A.
7.Compatible with PARKER 6600 Series,FASTER ANV Series,AEROQUIP 5600 Series and HANSEN HA 15000 Series.

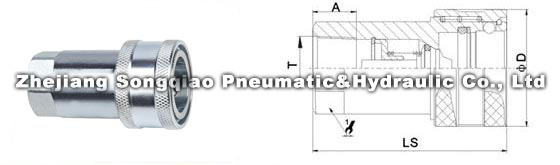

| ISO | PARTNO. | LS | ¢D | HEX1 | A | T |
| 6.3 | LSQ-S1-02SF | 50 | 26 | 19 | 13 | G1/4 NPT1/4 |
| 10 | LSQ-S1-03SF | 56 | 31.5 | 22 | 14 | G3/8 NPT3/8 |
| 12.5 | LSQ-S1-04SF | 66 | 38.5 | 27 | 16 | G1/2 NPT1/2 |
| 20 | LSQ-S1-06SF | 80 | 48 | 34 | 18 | G3/4 NPT3/4 |
| 25 | LSQ-S1-08SF | 94 | 56 | 41 | 21 | G1 NPT1 |
| 31.5 | LSQ-S1-10SF | 117 | 69.5 | 50 | 25 | G1-1/4 NPT1-1/4 |
| 40 | LSQ-S1-12SF | 133 | 84 | 60 | 27 | G1-1/2 NPT1-1/2 |
| 50 | LSQ-S1-16SF | 165 | 99 | 75 | 26 | G2 NPT2 |

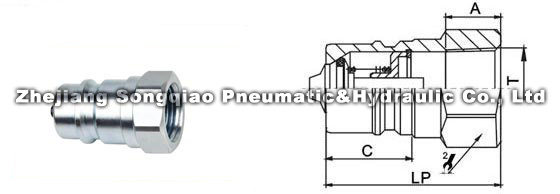

| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | LSQ-S1-02PF | 35.5 | 11.8 | 15 | 19 | 13 | G1/4 NPT1/4 |
| 10 | LSQ-S1-03PF | 36.5 | 17.3 | 21.4 | 22 | 14 | G3/8 NPT3/8 |
| 12.5 | LSQ-S1-04PF | 43.5 | 20.5 | 27 | 27 | 16 | G1/2 NPT1/2 |
| 20 | LSQ-S1-06PF | 57 | 29 | 28 | 35 | 18 | G3/4 NPT3/4 |
| 25 | LSQ-S1-08PF | 59.5 | 34.3 | 36 | 41 | 21 | G1 NPT1 |
| 31.5 | LSQ-S1-10PF | 75 | 45 | 46 | 50 | 25 | G1-1/4 NPT1-1/4 |
| 40 | LSQ-S1-12PF | 83.5 | 55 | 52 | 60 | 27 | G1-1/2 NPT1-1/2 |
| 50 | LSQ-S1-16PF | 105 | 65 | 64 | 75 | 26 | G2 NPT2 |

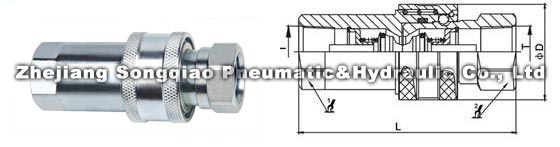

| ISO | PARTNO. | L | ¢D | HEX1 | HEX2 | T |
| 6.3 | LSQ-S1-02 | 71 | 26 | 19 | 19 | G1/4 NPT1/4 |
| 10 | LSQ-S1-03 | 75 | 31.5 | 22 | 22 | G3/8 NPT3/8 |
| 12.5 | LSQ-S1-04 | 88 | 38.5 | 27 | 27 | G1/2 NPT1/2 |
| 20 | LSQ-S1-06 | 110 | 48 | 34 | 35 | G3/4 NPT3/4 |
| 25 | LSQ-S1-08 | 119.5 | 56 | 41 | 41 | G1 NPT1 |
| 31.5 | LSQ-S1-10 | 150 | 69.5 | 50 | 50 | G1-1/4 NPT1-1/4 |
| 40 | LSQ-S1-12 | 167.5 | 84 | 60 | 60 | G1-1/2 NPT1-1/2 |
| 50 | LSQ-S1-16 | 210.5 | 99 | 75 | 75 | G2 NPT2 |
