| Prod Model: |
LSQ-S8 ( ISO B BRASS ) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| From 1/4' To 1": |
All Threads Are Available |
| Mechanical Connection: |
Locking Balls |
| Interchangeability: |
ISO 7241 Series "B", Poppet Valve |
| Working Pressures: |
1000 Psi |
Product Description

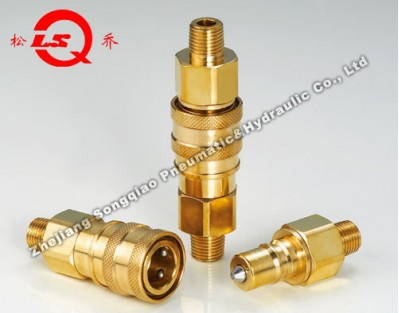

LSQ-S8 medium-pressure high performance pneumatic and hydraulic quick coupling(BRASS)
Applications:
LSQ-S8 couplings, are used across the spectrum of hydraulic applications, These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. LSQ-S8 are used on construction Equipment, forestry equipment, agricultural Machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Temperature Range(std seals) -20 degree to +180 degree
Standard seal material is Flourocarbon
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -20ºC to +120ºC |
| Stander seal material | NBR |
LSQ-S8 Series Couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S8 series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series

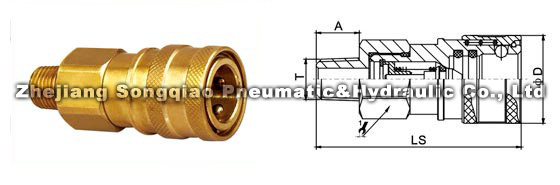

| ISO | PARTNO. | LS | ¢D | HEX1 | A | T |
| 6.3 | LSQ-S8-02SM | 62.5 | 27 | 22 | 13 | ZG1/4 NPT1/4 |
| 10 | LSQ-S8-03SM | 68.5 | 35 | 27 | 13 | ZG3/8 NPT3/8 |
| 12.5 | LSQ-S8-04SM | 77.5 | 45 | 30 | 16 | ZG1/2 NPT1/2 |
| 20 | LSQ-S8-06SM | 93.5 | 54 | 36 | 18 | ZG3/4 NPT3/4 |
| 25 | LSQ-S8-08SM | 98 | 64.5 | 41 | 20 | ZG1 NPT1 |

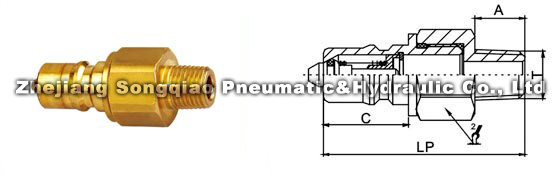

| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | LSQ-S8-02PM | 53 | 14.2 | 22.5 | 22 | 13 | ZG1/4 NPT1/4 |
| 10 | LSQ-S8-03PM | 55.5 | 19 | 25 | 27 | 13 | ZG3/8 NPT3/8 |
| 12.5 | LSQ-S8-04PM | 64.5 | 23.5 | 28 | 30 | 16 | ZG1/2 NPT1/2 |
| 20 | LSQ-S8-06PM | 74.5 | 31.4 | 36 | 36 | 18 | ZG3/4 NPT3/4 |
| 25 | LSQ-S8-08SM | 78 | 37.8 | 40 | 41 | 20 | ZG1 NPT1 |

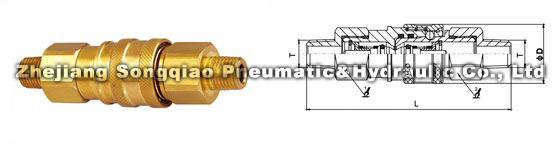

| ISO | PARTNO. | L | ¢D | HEX1 | HEX2 | T |
| 6.3 | LSQ-S8-02 | 94 | 27 | 22 | 22 | ZG1/4 NPT1/4 |
| 10 | LSQ-S8-03 | 99 | 35 | 27 | 27 | ZG3/8 NPT3/8 |
| 12.5 | LSQ-S8-04 | 115.5 | 45 | 30 | 30 | ZG1/2 NPT1/2 |
| 20 | LSQ-S8-06 | 133 | 54 | 36 | 36 | ZG3/4 NPT3/4 |
| 25 | LSQ-S8-08 | 136.5 | 64.5 | 41 | 41 | ZG1 NPT1 |
