| Price: | US $ 20000-50000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

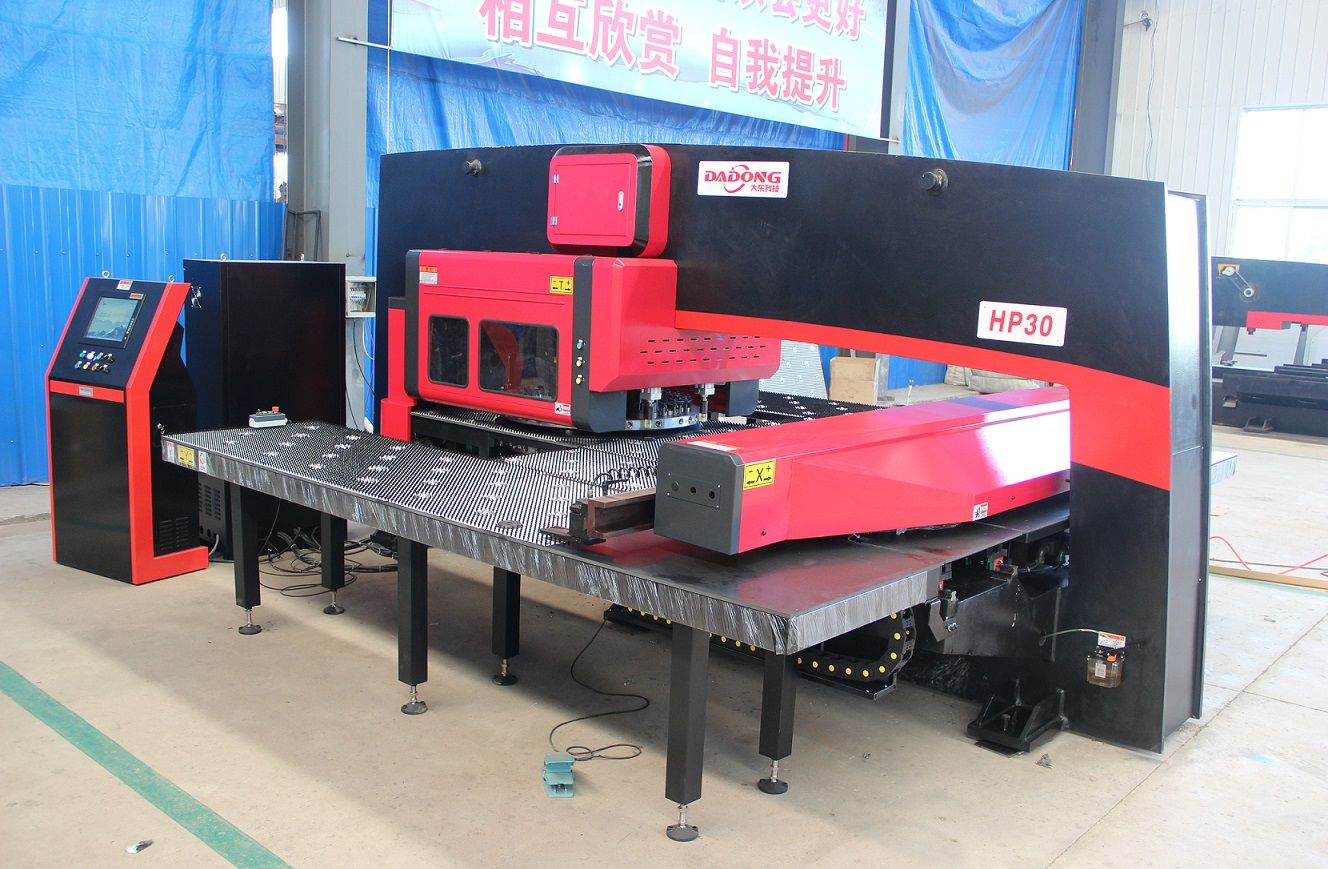

| Prod Model: | HP30 |
|---|---|
| Size: | 4800X4000X2300mm |
| Delivery Time: | 45days After Received Deposits |
| Throat Depth: | 1250/1500/1700/2000mm |
| Servo Motor: | Japan Panasonic |
| Type: | High-Speed Punching Machine |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Power Source: | Mechanical Drive |
| Precision: | High Precision |

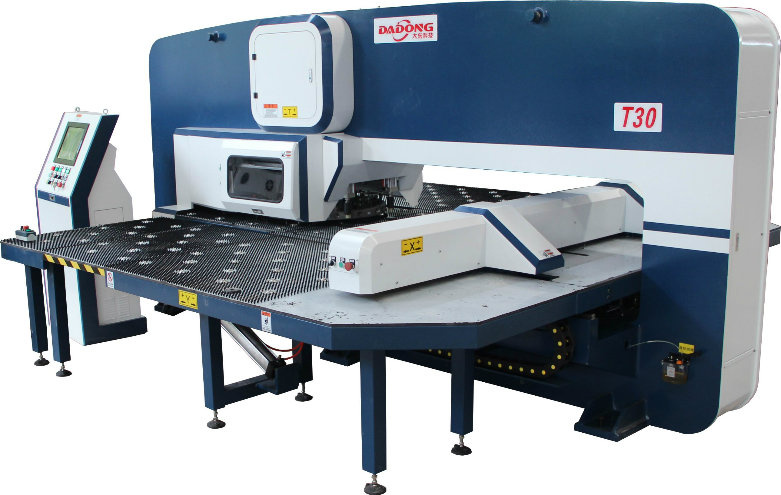

CNC turret punching machine/automatic hole punching machine/CNC punch price
Products details:
features
1. the transmission using the international brand of precision, large lead ball screw, linear guides, high precision and good performance.
2. international class CNC system, and high reliability.
3. to ensure the high reliability of machine, a clutch of international quality.
4.pneumatic components adopts international famous brand products, so that the machine performance to perfect.
5. the nodular cast iron material and pairwise processing, to ensure the concentricity of the upper and lower mold, which greatly extend the life of the mold and turntable.
6. mold using advanced processing and heat treatment process, long service life.
7. steel plate welded closed o- body, good rigidity and deformation is small.

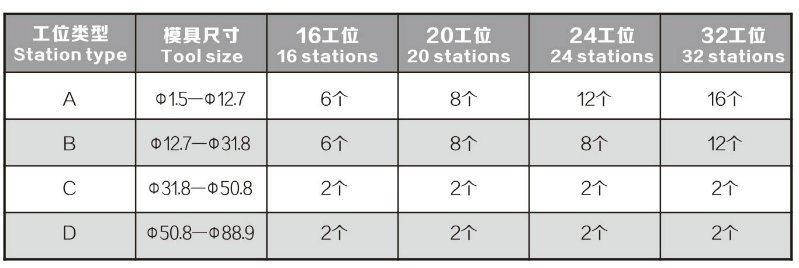

Distribution of the stations:
Seamless worktable: Seamless worktable design, when the plate moved, it can avoid the plate and the worktable make a collision.

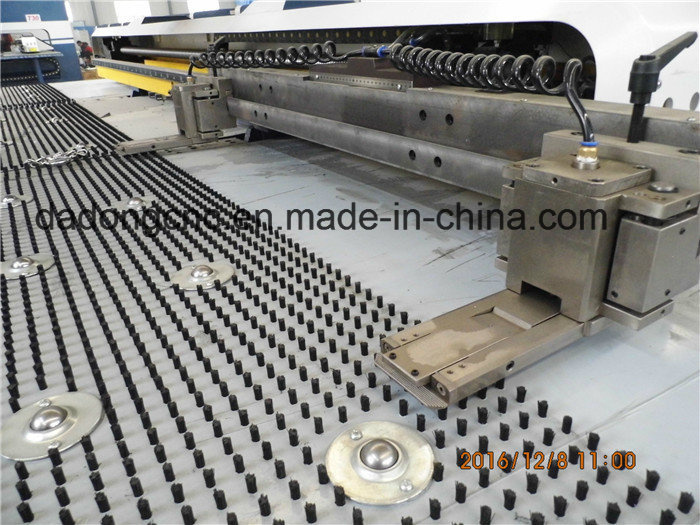

Two Clamps;
CNC System features and functions:
1. Simple international generic G code programming, easy operation.
2. Internationally accepted standard RS232 interface to facilitate communication with the computer.
3. Field programming, background programming, Parameter programming function, Chinese display.
4. Graphical simulation of stamping function.
5. Convenient for backup system parameters, ladder diagram and the processing procedure, achieve large capacity processing program of online processing.
6. With Nano as a unit for interpolation, position detection and servo control, make high-speed precision processing come true.
7. A high degree of integration, the use of special software; start time is short, it will automatically save the data when a sudden power off.
8. Automatic diagnostic program function.
:

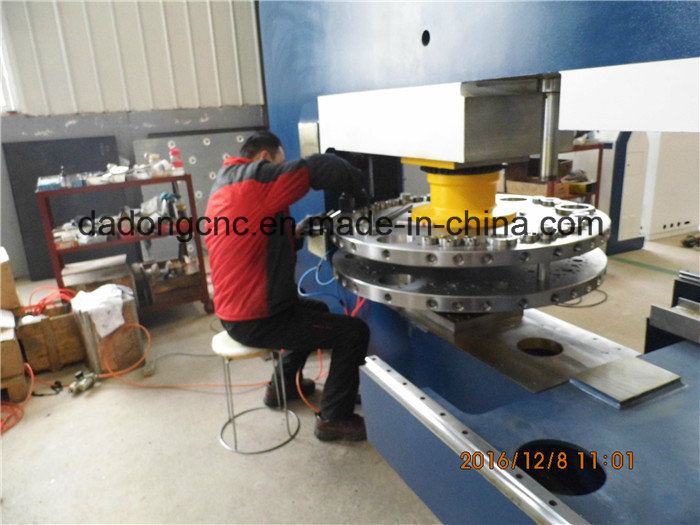

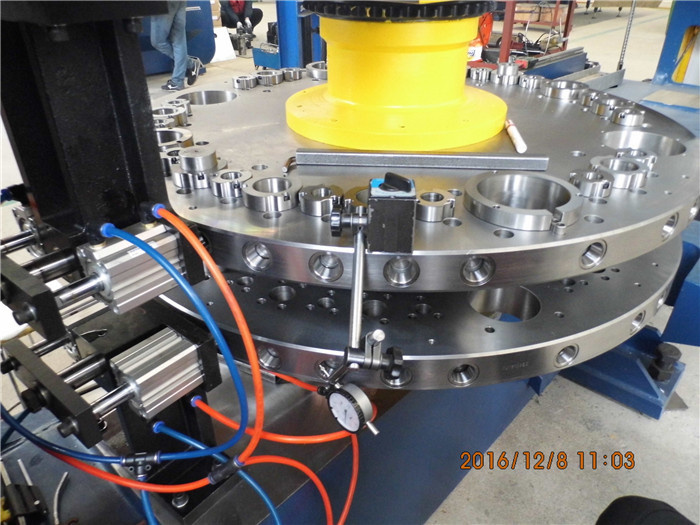

High Precisions of our machine:
Our service:
1.Your inquiry will be replied in 24 hours.
2. Gold supplier continuously in MIC. And there is more industry technology experience for 15years with our manufactures.
3.To offer free spare parts and service within 12month of warranty.
4.Technology Support Provide operation video for training.
5.Professional after-sales service team.
6.Give reasonable offers with the best quality.
Our Advantage:
1.More than 15 years experience of machine tools.
2.Our company and products with SGS , ISO90012 and other authority approved
3.High reputation around the world
4.Overseas service and technology support
5.Competitive price with better quality, even the best
6.Strict test processing before shipment .
7.Overseas engineers available for problem solution.
Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. What is your metal sheet material?
2. The workpiece size, length, width and thickness.
3. How many hole shapes and hole diameter?
Choose DADONG, Gain more success!!!
