M18 Inductive Switch Proximity Sensor Detection Distance 8mm 90-250VAC
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

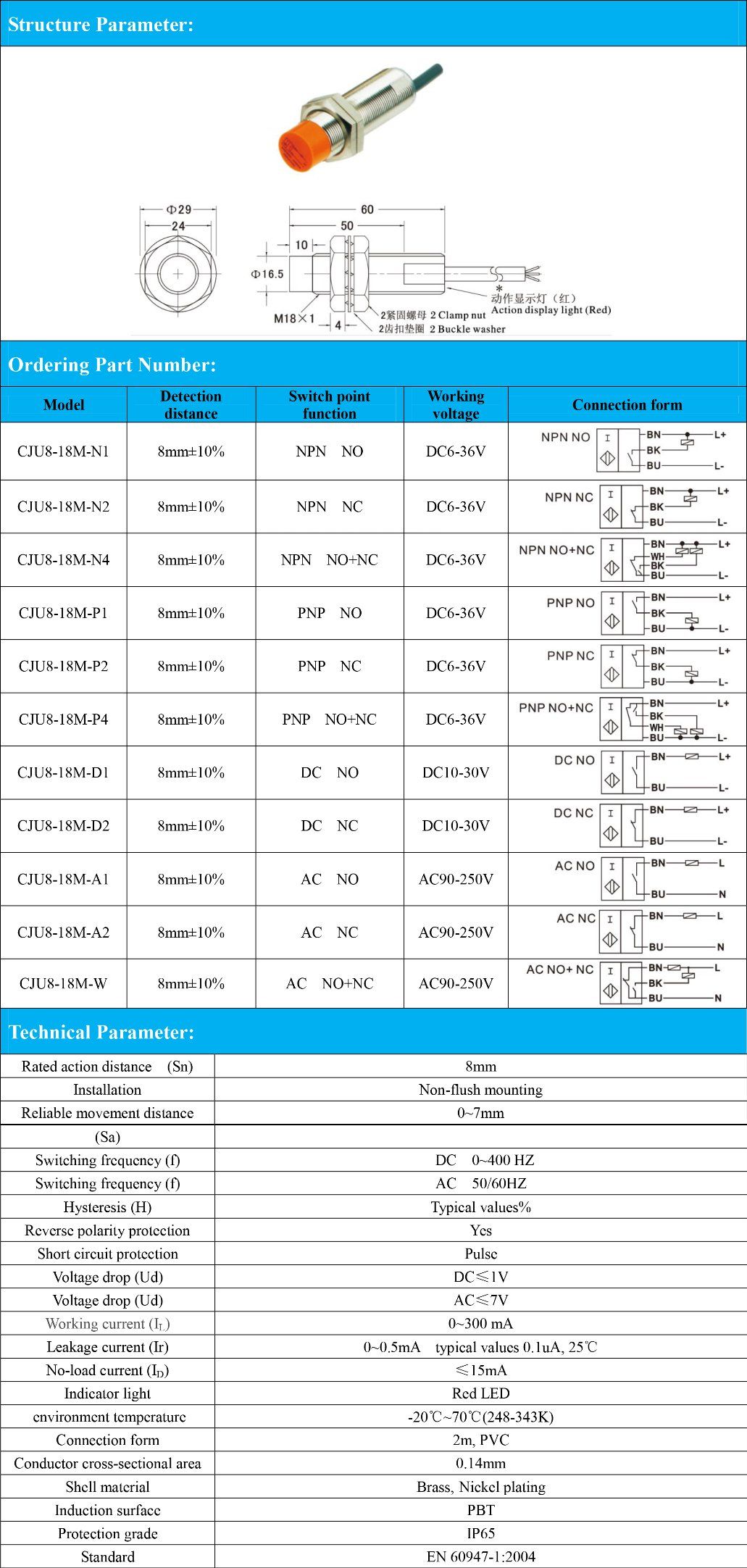

| Prod Model: |
CJU8-18M-A1 |
| Detection Distance: |
8mm±10% |
| Supply Voltage: |
AC90-250V |
| Standard Detected Object: |
Iron 30*30*1mm |
| Response Frequency: |
25Hz |
| Working Temperature: |
-20ºC~70ºC(248-343k) |
| Optional Working Status: |
No |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Application: |
Position Sensor, Speed Sensor |
Product Description
Feature* Equivalent to the same type of the other brands (P+F and TURCK)
* Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
* Newly added current over-load protection; the elements are made of imported chip
* Long service life, high reliability and strong resistance property to environment
* Red LED indicates that it's available to detect the sensor operating state
* Full thread shape to enlarge the installation space; can use wrench and clamp directly
* Countermeasure to improve the housing intensity and to solve disconnection
* IP67 protection structure (IEC specification) Specification
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
