| Prod Model: |
KET-FDB Series |
| Torque Range: |
1500-50000nm |
| Square Head Size: |
3/4"-2-1/2"Inch |
| Magnification Ratio: |
4-180times |
| Torque Multiplier Diameter: |
85-275mm |
| Torque Multiplier Height: |
180-360mm |
| Torque Multiplier Weight: |
3.5-55kg |
| Torque Multiplier Warranty: |
1 Year |
| Torque Multiplier Payment: |
T/T |
| OEM: |
Yes |
| Product Name: |
M72-80 China Manufacturer Torque Multiplier |
| Type: |
Torque Wrench |
| Material: |
Alloy Steel |
| Standard: |
European Type |
| Feature: |
Ordinary |
| Brand: |
Kiet |
| Surface Treatment: |
- |
| Handle Color: |
Customize |
Product Description

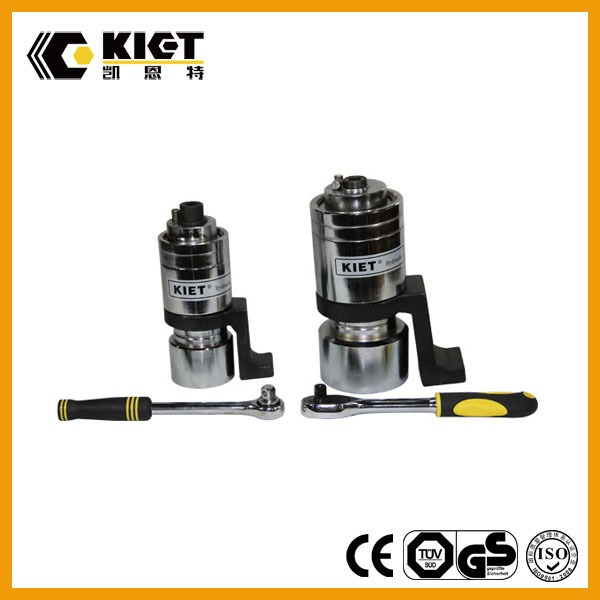

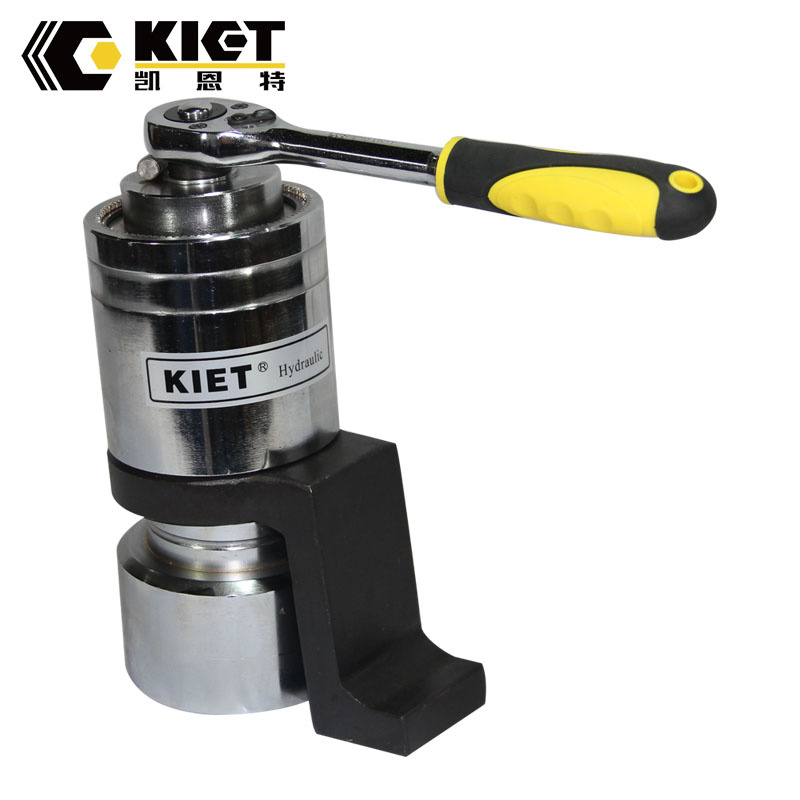

M72-80 Torque Multiplier with CE Approval
Feature- High-efficiency planetary gear sets achieve high output torque from low input torque
- Most models operator protected by anti-backlash device
- Multiplier output accuracy ± 5% of input torque
- Reversible, tighten or loosen bolts
- Reaction bar or reaction plate type
- Angle-of-turn protractor standard
- Reaction plate models offer increased versatility with reaction point location

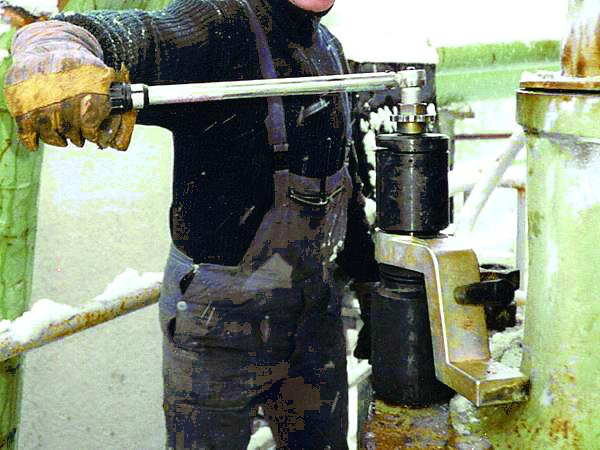

Application
Company Information
iangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic Pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
We are a manufacturer in Hydraulic tools, such as:
• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
FAQQ1: How can contact sales? A1: Please call: +86 523 81569666 for pre-sales or click the contact find our website and email address.Q2: How can I buy Kiet products in my country? A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country. Q3: Can I have Kiet products catalog and price list? A3: Please visit our English website: www.chinakiet.com/en to download our E-catalog, and send us an email for price listQ4: How long does it take to get the product If I place an order? A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations. Q5: How to make payment? A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details. Q6: Manufacturing time? Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
Why Choose KIET ? Quality --- KIET has been in the industry for than 20 years. We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.
Service --- KIET promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.
| Model Number | KET-FDB-15 | KET-FDB-20 | KET-FDB-35 | KET-FDB-55 | KET-FDB-75 | KET-FDB-100 | KET-FDB-150 | KT-FDB-200 |
| Max.Torque | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
| Proportion | 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
| Input Square | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| Output Square | 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
| Bolt Size | M20 - M30 | M22- M36 | M30 - M45 | M36-M52 | M42- M60 | M52- M68 | M60- M76 | M72-M80 |
| Nut Size | S30 -46 | S30 -46 | S30 -46 | S30 -46 | S30 -46 | S30 -46 | S30 -46 | S30 -46 |
| Size | 80*80*119 | 74*74*147 | 95*95*162 | 105*105*190 | 115*115*190 | 134*134*244 | 146*146*305 | 146*146*325 |
