Magnetic Base Drill (Magnetic Drill Machine MD30 MD32 MD50 MD60)

Name: Magnetic Base Drill (Magnetic Drill Machine MD30 MD32 MD50 MD60)
Brand: tool-buy.com
SKU: 730798532
Availability: InStock
Rating: 4.6 (26 reviews)

Price:	US $ 200-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Tengzhou Hoton Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	MD30 MD32 MD50 MD60
Drill Capacity:	12-30mm
Motor:	1100W
Spindle Travel:	125mm
Speed:	450
Weight:	19
Type:	Magnetic Drill
Drill Brand:	Hoton

Product Description

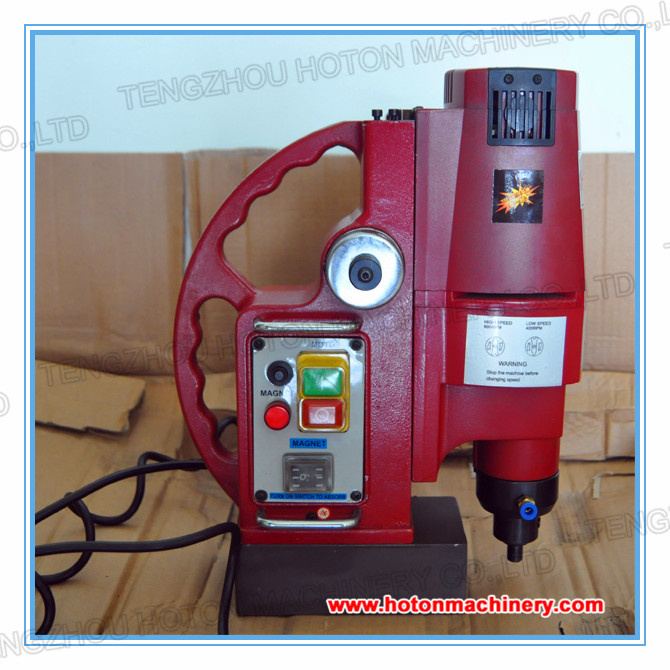

MAGNETIC DRILL:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
MAGNETIC DRILL USAGE:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers, machinery manufacturing, environmental protection, oil and gas pip line industries

MODEL	MD20	MD23	MD30	MD32	MD50	MD60
Motor power (w)	900	1200	1100	1600	1500	1800
Magnetic adhesion(N)	8500	12000	11000	16000	15000	18000
Core drill(mm)	Φ12-20	Φ12-23	Φ12-30	Φ12-32	Φ12-50	Φ12-60
Weldon shank (mm)	Φ19.05	Φ19.05	Φ19.05	Φ19.05	Φ19.05	Φ19.05
Twist drill (mm)	Φ13	Φ13	Φ16	Φ16	Φ31	Φ31
Travel(mm)	110	110	125	125	170	170
Spindle taper	/	/	/	/	MT3	MT3
Speed(rpm)	650	650	450	450	400/600	400/600
Weight (kg)	19/15	20/16	26/19	27/20	37/28	38/29
Packing size(mm)	445x390x180	445x390x180	530x460x250	530x460x250	595x485x275	530x460x250
