| Prod Model: |
hammer tips 90x50x64mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Hammer Tips |
| Size: |
90X50X64mm |
| Hardness: |
63HRC /700bhn |
| Type: |
Chrome Carbide Hammer Tips |
| Shape: |
Hammer Tips |
Product Description

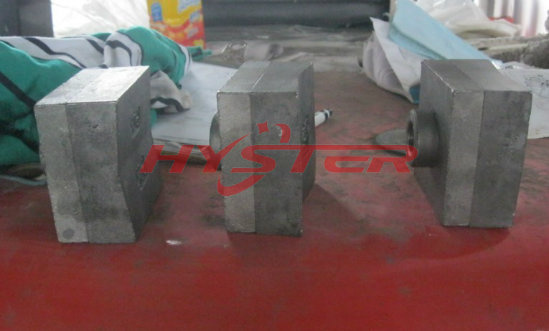

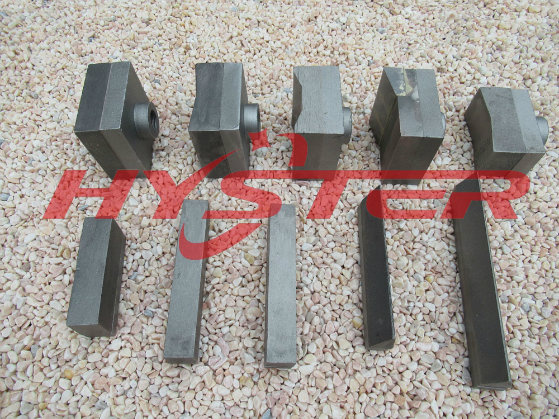

Shredder/Grinder Hammer Tips(mainly for sugar mill)These are bi-metallic composites having 700 BHN hardness and available in various sizes and shapes, shredder hammer tips can be used in sugar or coal industry to do crushing and shredding performance, it has excellent impact and abrasion resistance properties & enhanced service life.
Hyster can also produce Tungsten Carbide + While Iron + Carbon Steel hammer tips!
These shredder hammer tips are used as an alternative to conventional hardfacing in:
--Crusher mills
--Hammer mills
These hammers find application in
I) Sugar Industry
II) Mining & Mineral Processing Industry.
III) Cement & Steel Industry

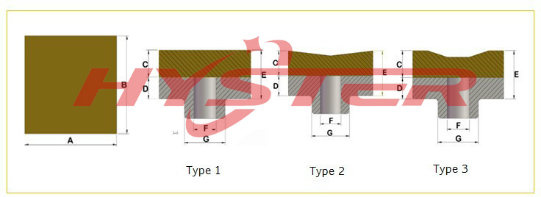

TYPE 1 HAMMER TIPS: (FLAT TYPE)| Item No. | Size(mm) | N.W.(kg) |
| HC1 90-90 | 90x90x45 | 2.9 |
| HC1 90-50 | 90x50x45 | 1.6 |
| HC1 50-50 | 50x50x38 | 0.7 |
| HC1 80-80 | 80x80x45 | 2.4 |
| HC1 100-100 | 100x100x45 | 3.6 |
| HC1 64-64 | 64x64x40 | 1.2 |
| HC1 80-56 | 80x56x45 | 1.6 |
TYPE 2 HAMMER TIPS: (V TYPE)| Item No. | Size(mm) | N.W(kg) |
| HC2 90-90 | 90x90x50 | 3.0 |
| HC2 80-56 | 80x56x50 | 1.8 |
TYPE 3 HAMMER TIPS: (U TYPE)| Item No. | Size(mm) | N.W.(kg) |
| HC3 90-90 | 90x90x50 | 3.0 |
| HC3 90-50 | 90x50x55 | 1.8 |
| HC3 90-56 | 90x56x55 | 1.9 |
Hyster also manufacture customized sizes and shapes.
Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.
Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.
Please contact us directly with any questions or inquiries!
