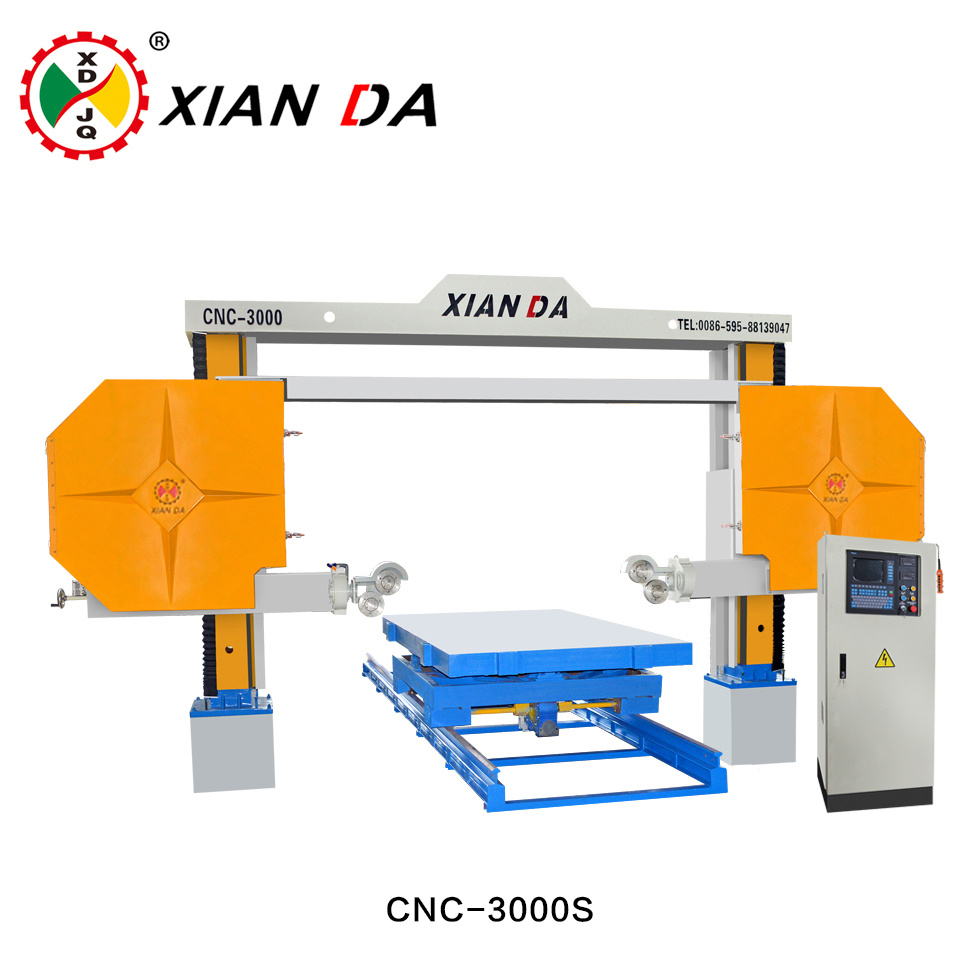

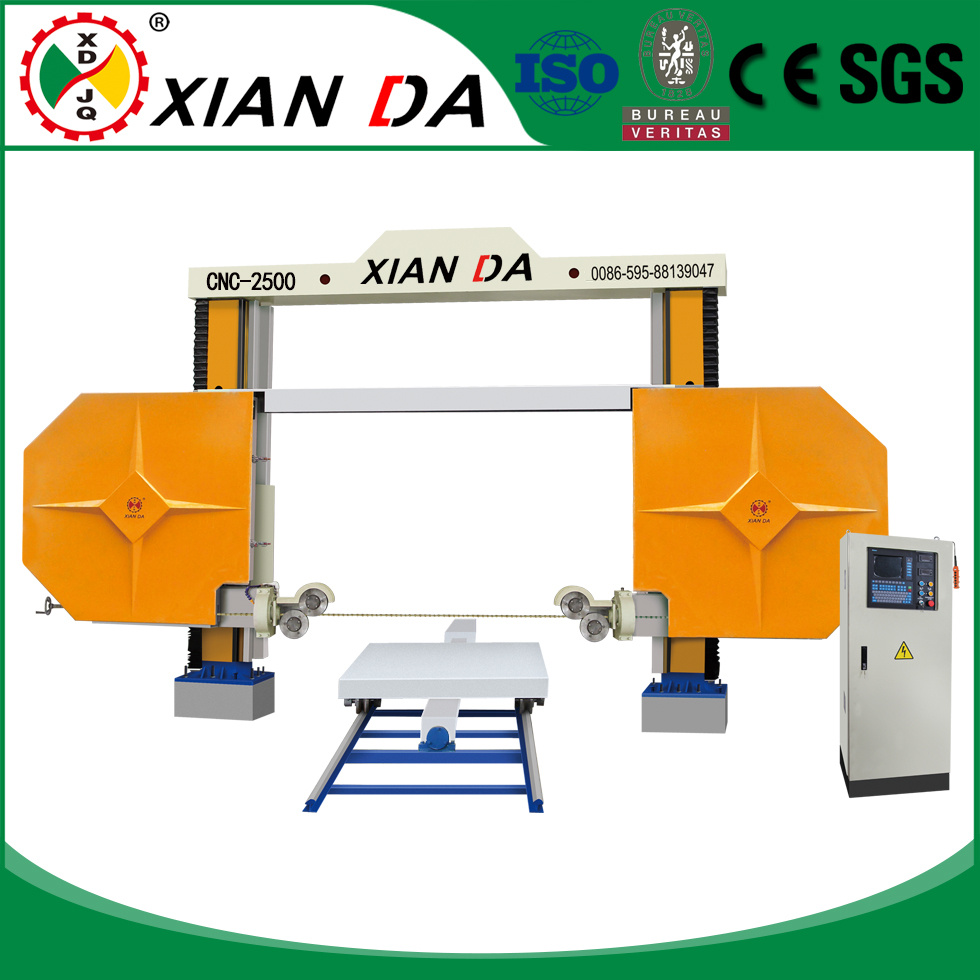

Marble& Granite Stone Cut Machine with CNC Diamond Wire Saw

Marble& Granite Stone Cut Machine with CNC Diamond Wire Saw
Price: US $ 32000-36500Set
Min Order: 1Set
Pay Type: L/C,T/T
Prod Model: CNC-2000/2500/3000
Max Processing Size: 3000*2000*1500mm
Dimension Of Worktable: 2500*1300mm
Main Motor: 7.5kw
Gross Motor: 11kw
Outline Dimension: 6500*6300*3800mm
Gross Weight: 5000kg
Water Consumption: 4m3/H
Color: Blue and Yellow
Type: CNC Cutting Machine
Usage: Block
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic

Product Description

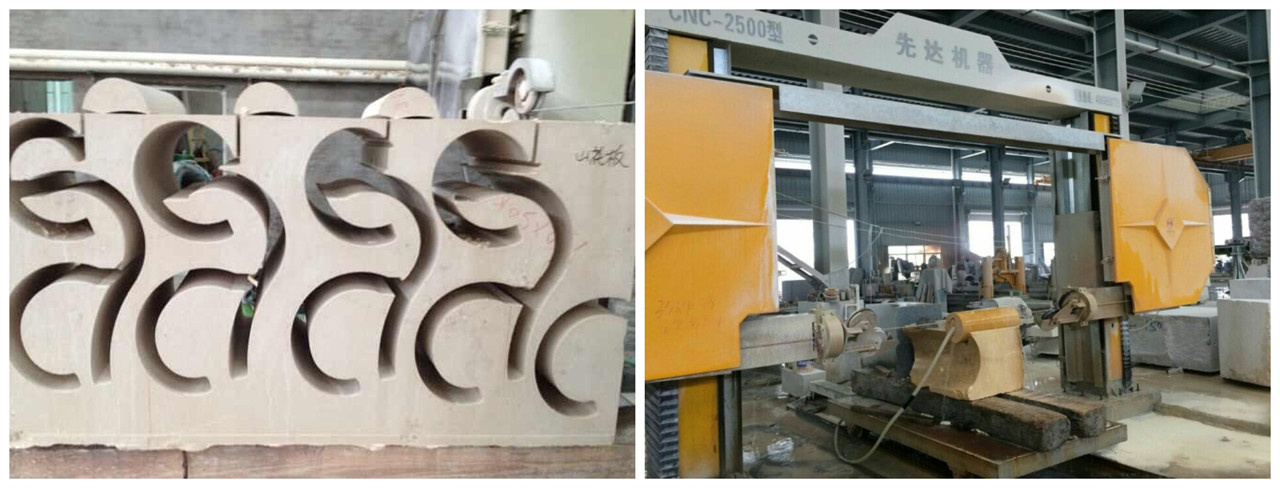

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

Technical Parameter
ParameterUnitCNC-2000CNC-2500CNC-3000
Max processing sizemm3000*2000*15003000*2500*15003000*3000*1500
Dimension of worktablemm2500*13002500*13002500*1300
Main motorkw7.57.57.5
Gross motorkw111111
Outline dimensionmm6500*6300*38007000*6300*38007500*6300*3800
Gross weightkg500055006000
Water consumptionm3/h444

Xianda machinery



Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.

If you have any problem,just conact our sales department,customer service department,etc at any time.

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.

With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.

Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".

Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
