Marble Stone Cutting Machine
| Price: |
US $ 14500-18500Set |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Yhjj-600-2000 |
| Column Of Diameter: |
Φ600mm-Φ2000mm |
| Max Cutting Width: |
1300mm |
| Outline Dimension: |
6300*5150*2100mm |
| Main Motor: |
4kw |
| Gross Motor: |
9.5kw |
| Gross Weight: |
4500kg |
| Water Consumption: |
4m3/H |
| Color: |
White,Blue |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Stone Cutting Machine |
| Control: |
PLC |
Product Description

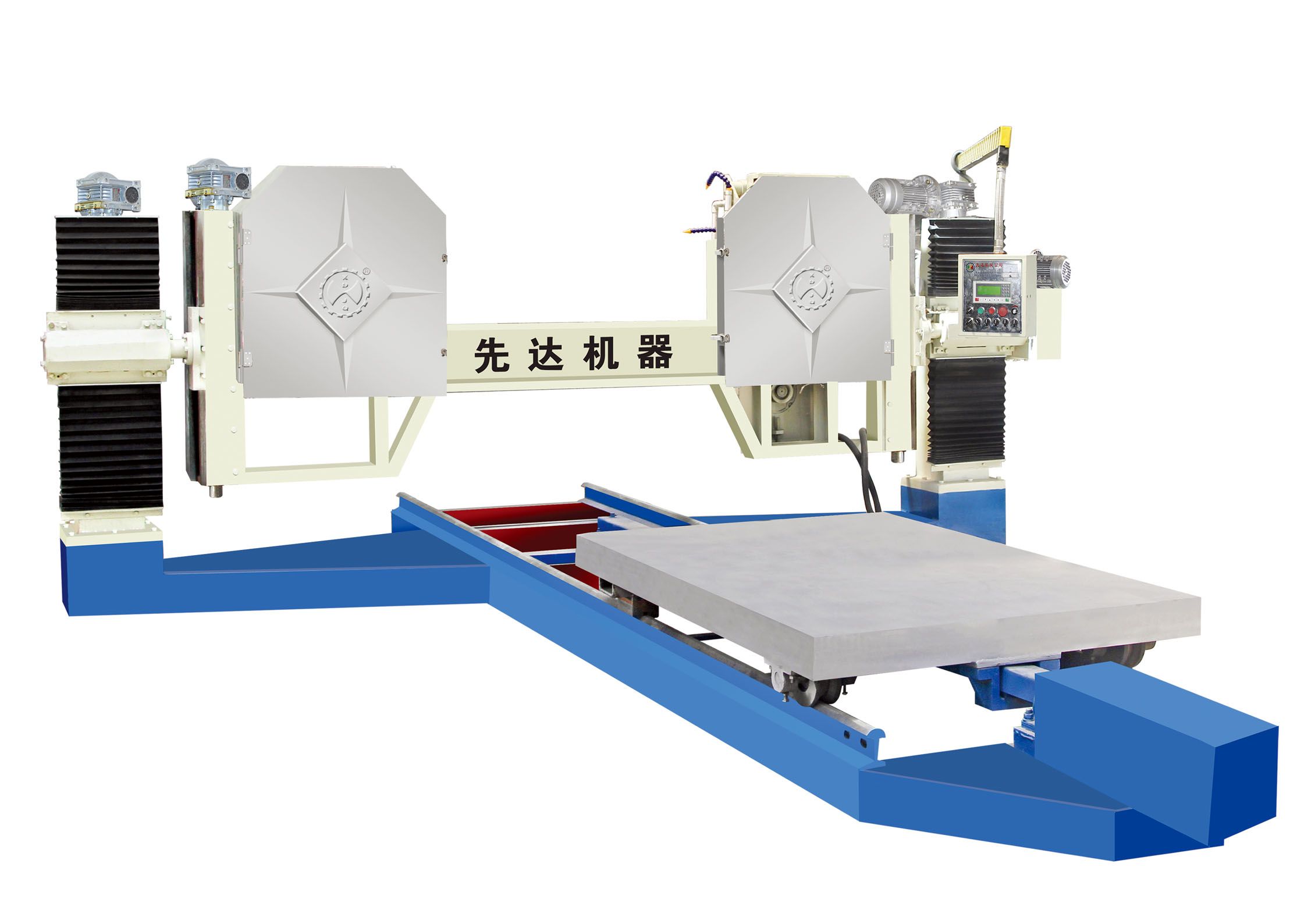

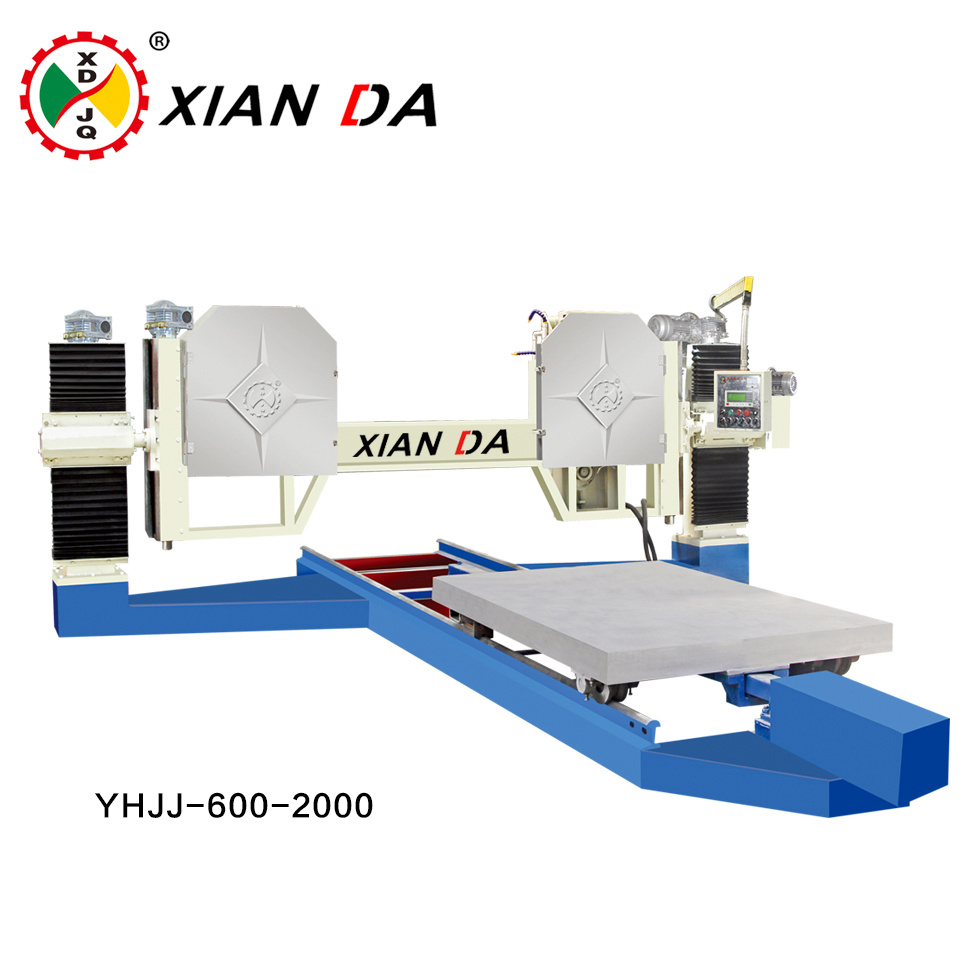

Product Description YHJJ-600-2000 granite stone machine&stone cutting machine&marble cutting machine adopts the latest structure design, the saw blade which operates around the central axis, slicing blocks is controled by the worktable automatic feeding. It has the featrues of lower energy consumption and small saw kerfs(3mm sawkerfs), saving blocks, simple operation, high precision and high efficiency. Maximum's processing diameter range is 600 mm to 2000mm. It is recommended for processing the column slab at marble block.
Parameter | Unit | YHJJ-600-2000 |
Column of diameter | mm | 600-2000 |
Max cutting width | mm | 1300 |
Outline dimension | mm | 6300*5150*2100 |
Main motor | kw | 4 |
Gross motor | kw | 9.5 |
Gross weight | kg | 4500 |
Water consumption | m3/h | 4 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.Exhibition
Our Service* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

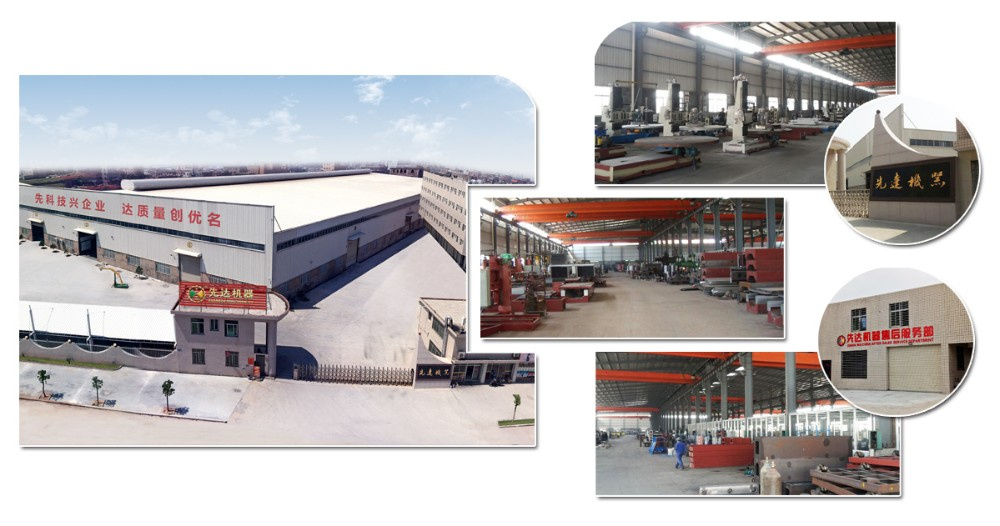

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.
With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.
Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".
Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
