| Drilling Depth: |
600m |
| Open Hole Dia.: |
220-325mm |
| End Hole Dia.: |
75mm |
| Drill Rod Dia.: |
60mm |
| Drill Angle: |
90°-75° |
| Matching Power: |
Yn27/39 |
| Wright: |
1800-3600kg |
| Spindle Speed: |
32-1057(R/Min) |
| Drill Tower Rated Load: |
18t |
| Drill Tower Height: |
6.5-11m |
Product Description

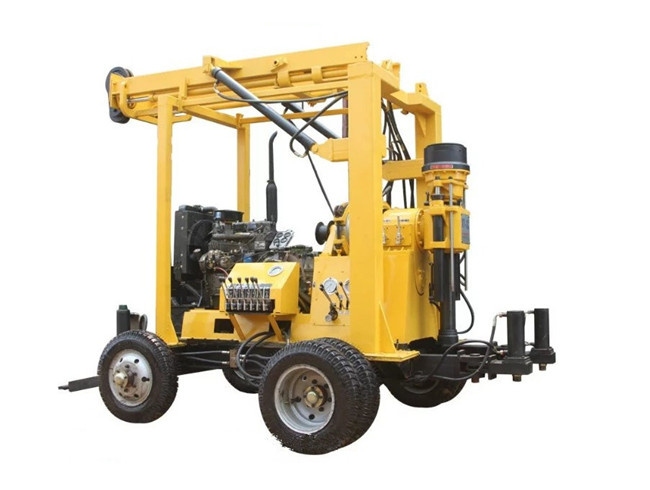

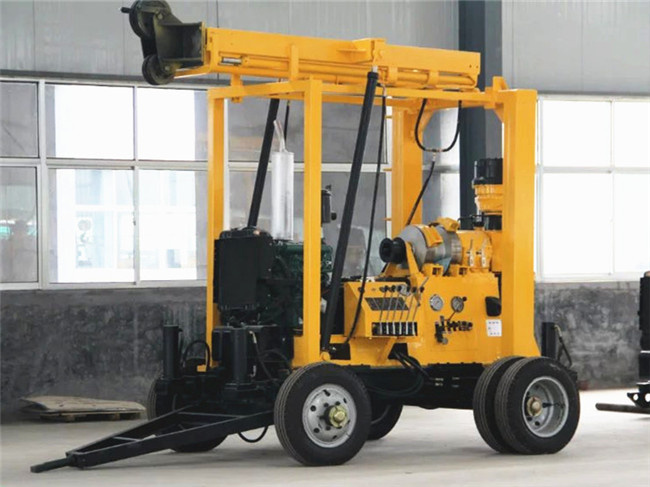

Description of Drilling Rig MachineXYX-3 XYX-200 drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.

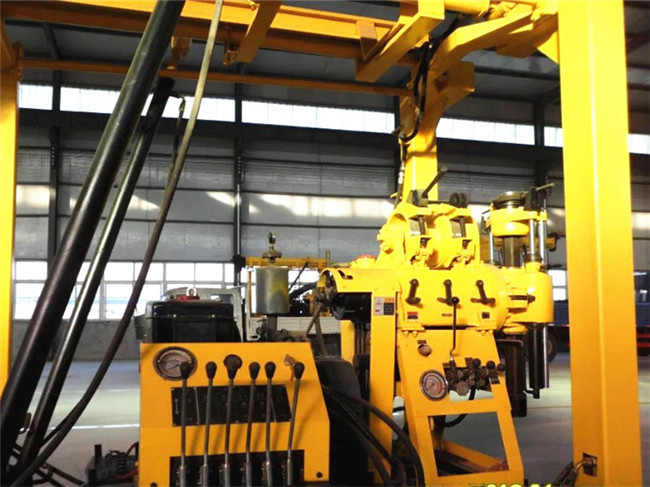

Feature of Drilling Rig Machine- Hydraulic cylinder,high efficiency.
- Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
- Pressure gauge display the condition of the bottom of the drill hole.
- Diesel engine with electric starter,convenient and reduce the labor itensity.
- Equipped with BW 250 mud pump
Technical parameter of Drilling Rig Machine | The whole machine parameters |
| Model | XYX-3 | XYX-200 |
| Drill hole depth | 600m | 200m |
| Maximum opening diameter | 300mm | 300mm |
| Final hole diameter | Φ75mm | Φ75mm |
| Drill pipe diameter | Φ50,60mm | Φ50,60mm |
| Borehole inclination | 90°- 65° | 90°- 75° |
| Power(diesel engine) | 38/2400kw/r/min | 15/2200kw/r/min |
| Motor | 22kw | |
| Vertical shaft |
| Vertical spindle speed | 30-1050r/min | 64-557r/min |
| Vertical stroke | 600mm | 450mm |
| Hoist |
| Single line lifting capacity | 30KN | 24KN |
| Single rope lifting speed | 0.5-1.9m/s | 0.12-0.95m/s |
| Drum diameter | Φ305mm | Φ140mm |
| Diameter of wire rope | Φ12.5mm | Φ13mm |
| Wire rope capacity | 65m | 35m |
| Mud pump |
| Model | BW250 | BW160 |
| Flow | 250L/min | 160L/min |
| Maximum pressure | 17Mpa | 1.2Mpa |
| Reciprocating frequency | 93times/min | 93times/min |
| Water inlet diameter | Φ75mm | Φ51mm |
| Water to exit diameter | Φ50 | Φ32mm |
Our services1.Any inquiries will be replied within 12 hours.2.Professional manufacturer, Welcome to visit our factory at any time.3.High quality, fashion designs, reasonable & competitive price and fast lead time.4. Protection of your sales area, ideas of design and all your private information.5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.Company Information
packaging &shipping1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
