Mdl-C160 Top Drive Full Hydraulic Power Head Anchor Crawler Drilling Rig Drilling Machine

Name: Mdl-C160 Top Drive Full Hydraulic Power Head Anchor Crawler Drilling Rig Drilling Machine
Brand: tool-buy.com
SKU: 830518195
Availability: InStock
Rating: 4.7 (118 reviews)

Price:	US $ 41500-65800/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd.

Showroom Product Company Profile

Prod Model:	MDL-C160

Product Description

Description:

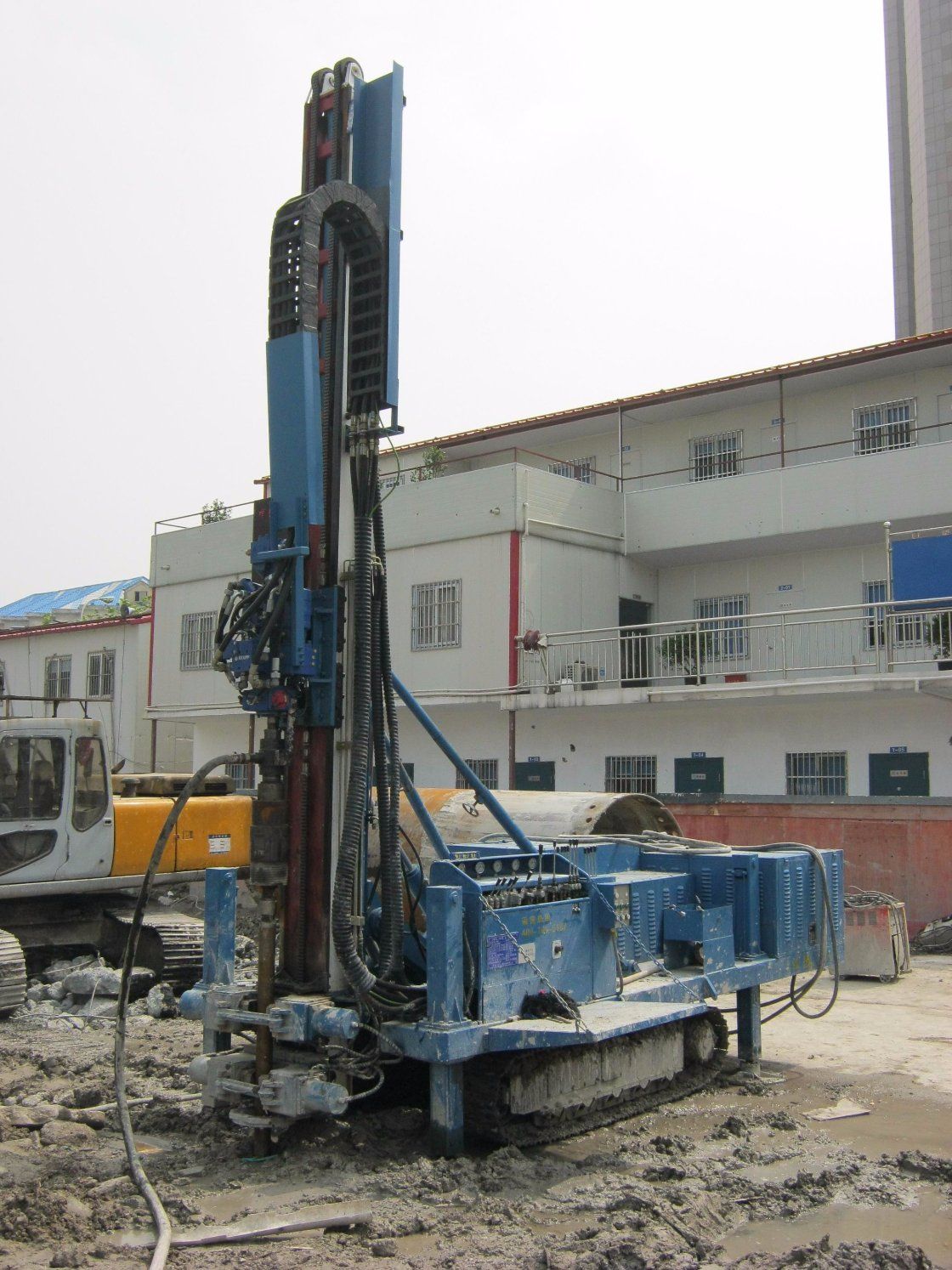

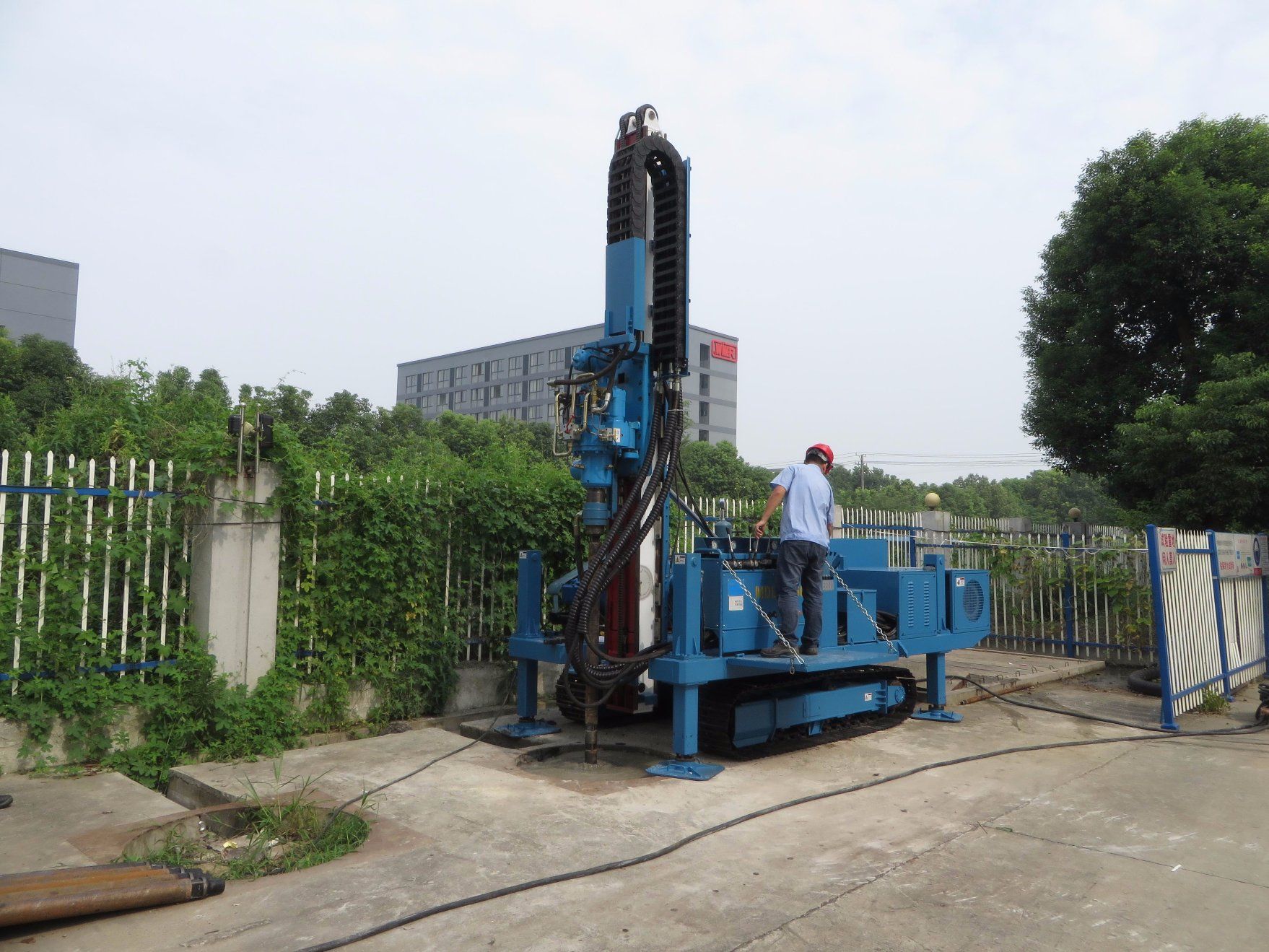

1. MDL-C160 is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.It is applicable to a wide-range of strata,it mainly be used for deep construction,fundation pit,slope support,pipe shed etc.
2. MDL-C160 is applicable to a wide-range of strata with big torque, high rotary speed, and big power.

3.This top head drive drill rig adopts variable hydraulic system and can vibrate with big power without DTH hammer or air compressor.Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.

3. When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency.

4. The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.

5.It has the long stoke and easy to operate.
Applications:
1. Anchor hole, such as urban foundation pit supporting .
2. It is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.

Specifications:

Hole depth	130-170m
Rod dia	150-250mm
Hole angle	0-90°
Output rotary speed of power head	8, 15, 25,30,50, 65, 80r/min
Stroke of power head	3000mm
Output torque of power head	10000N.m
Impact power	400-600N.m
Impact frequency	1500-2600min-l
Lifting force	78KN
Feeding force	40KN
Stroke of slide frame	1500mm
Power	Electric motor:	55+18.5+3KW
Weight	7000KG
Dimensions (L×W×H)	5400×2200×2200mm
