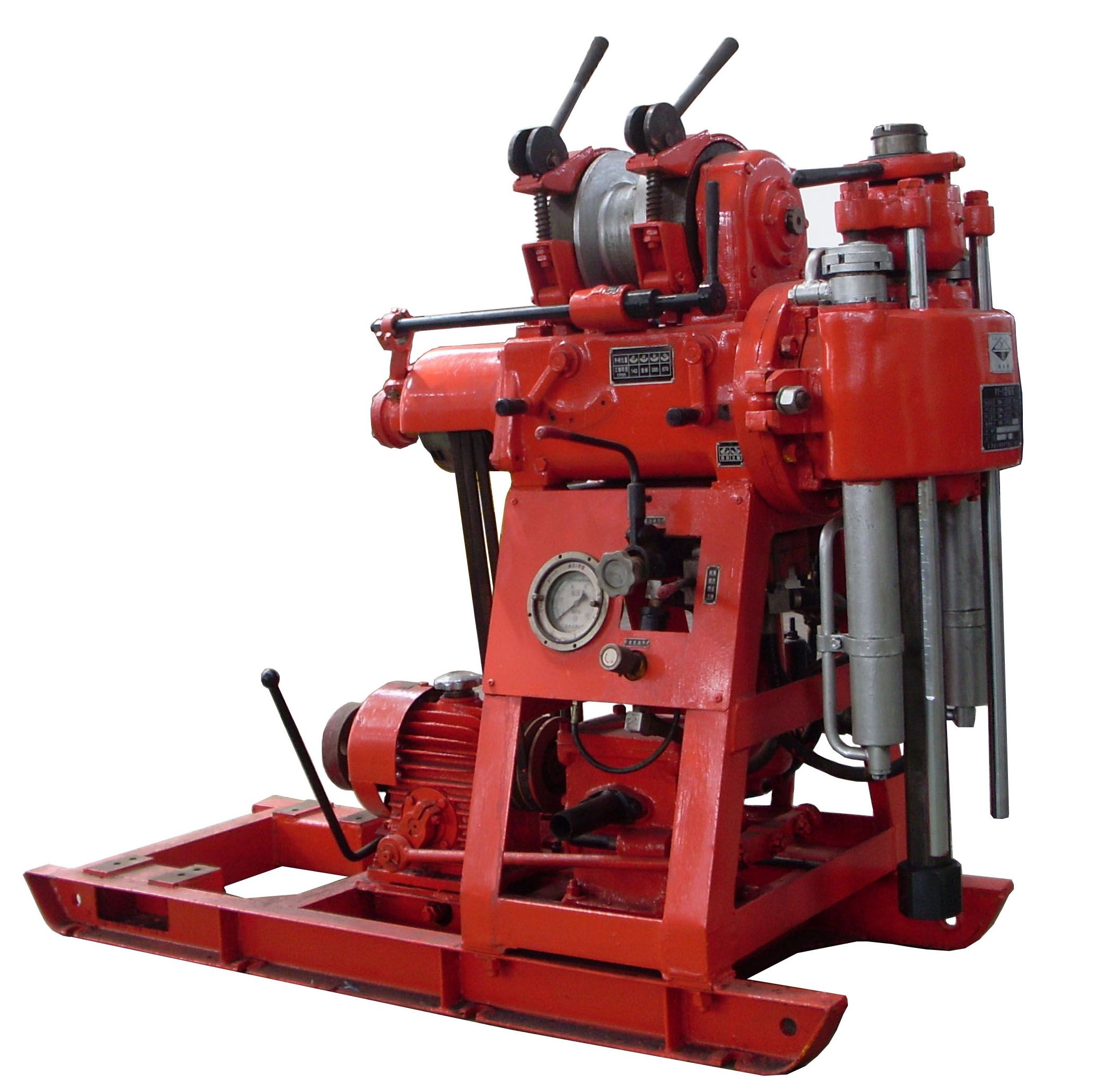

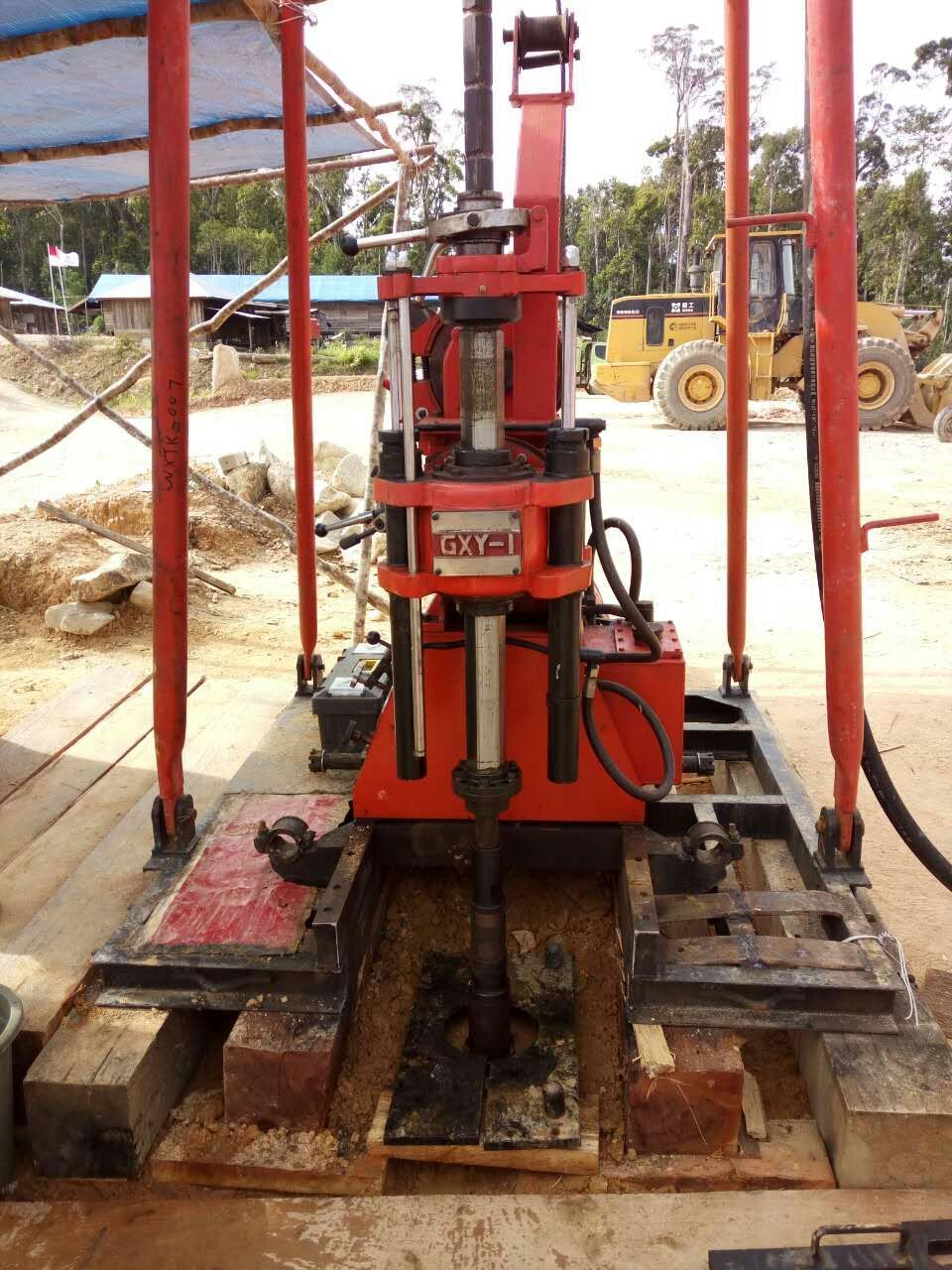

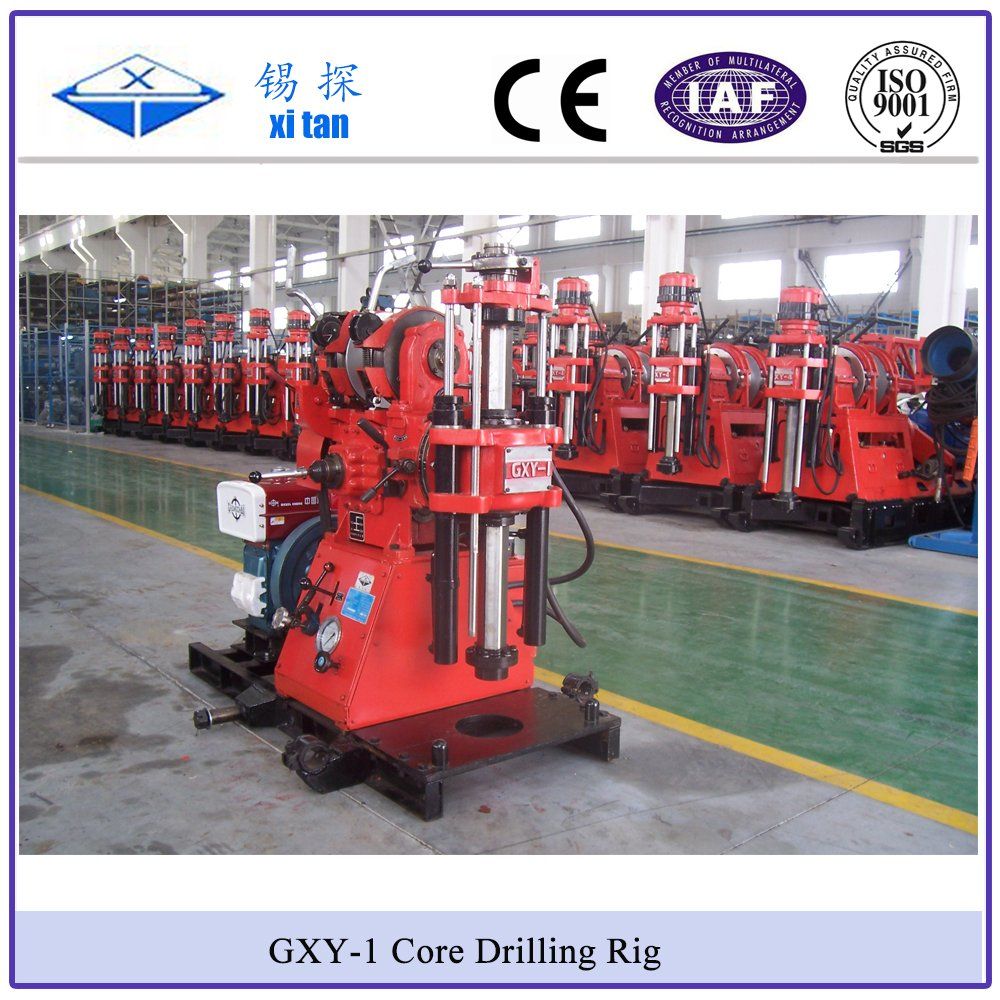

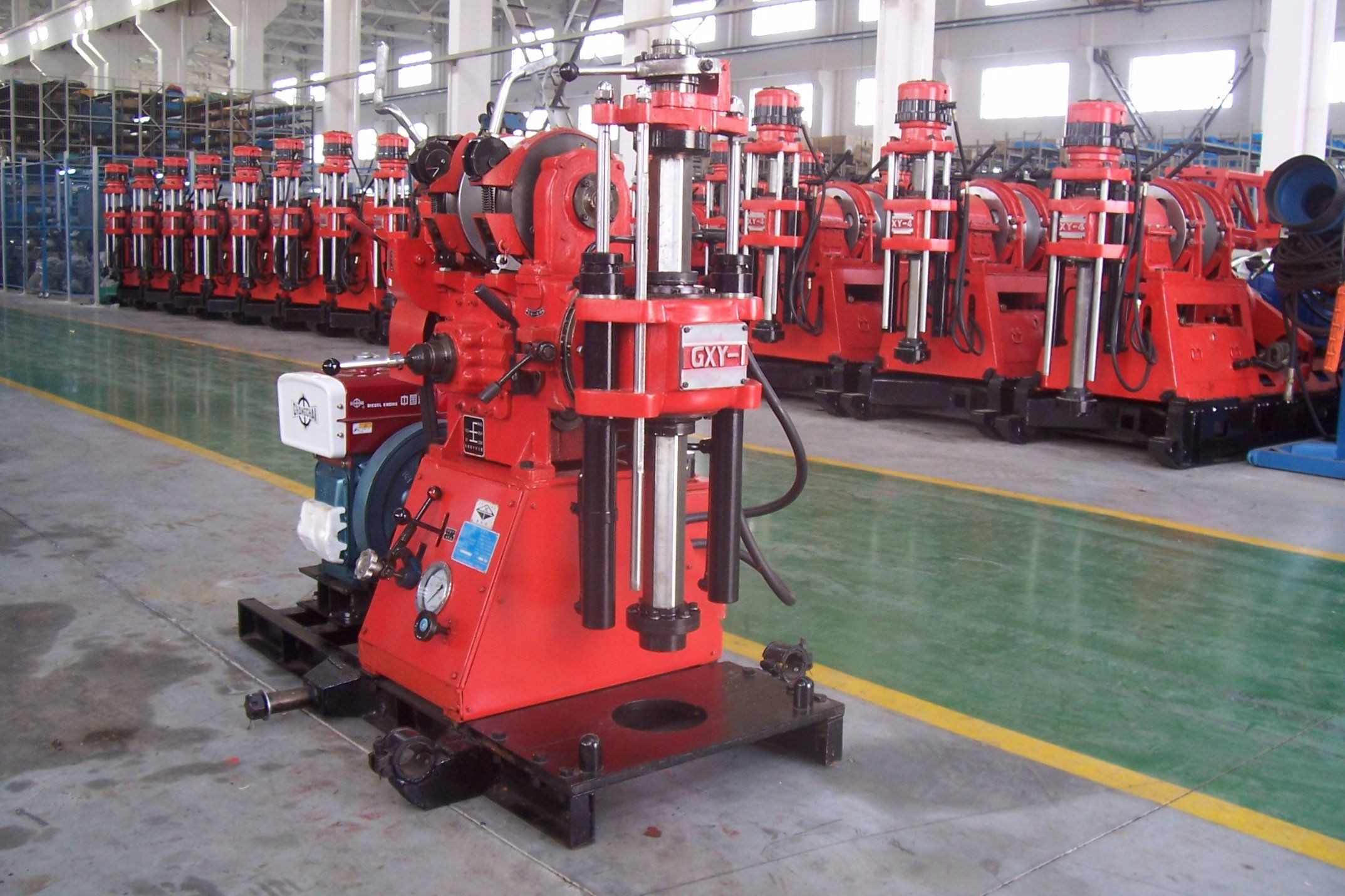

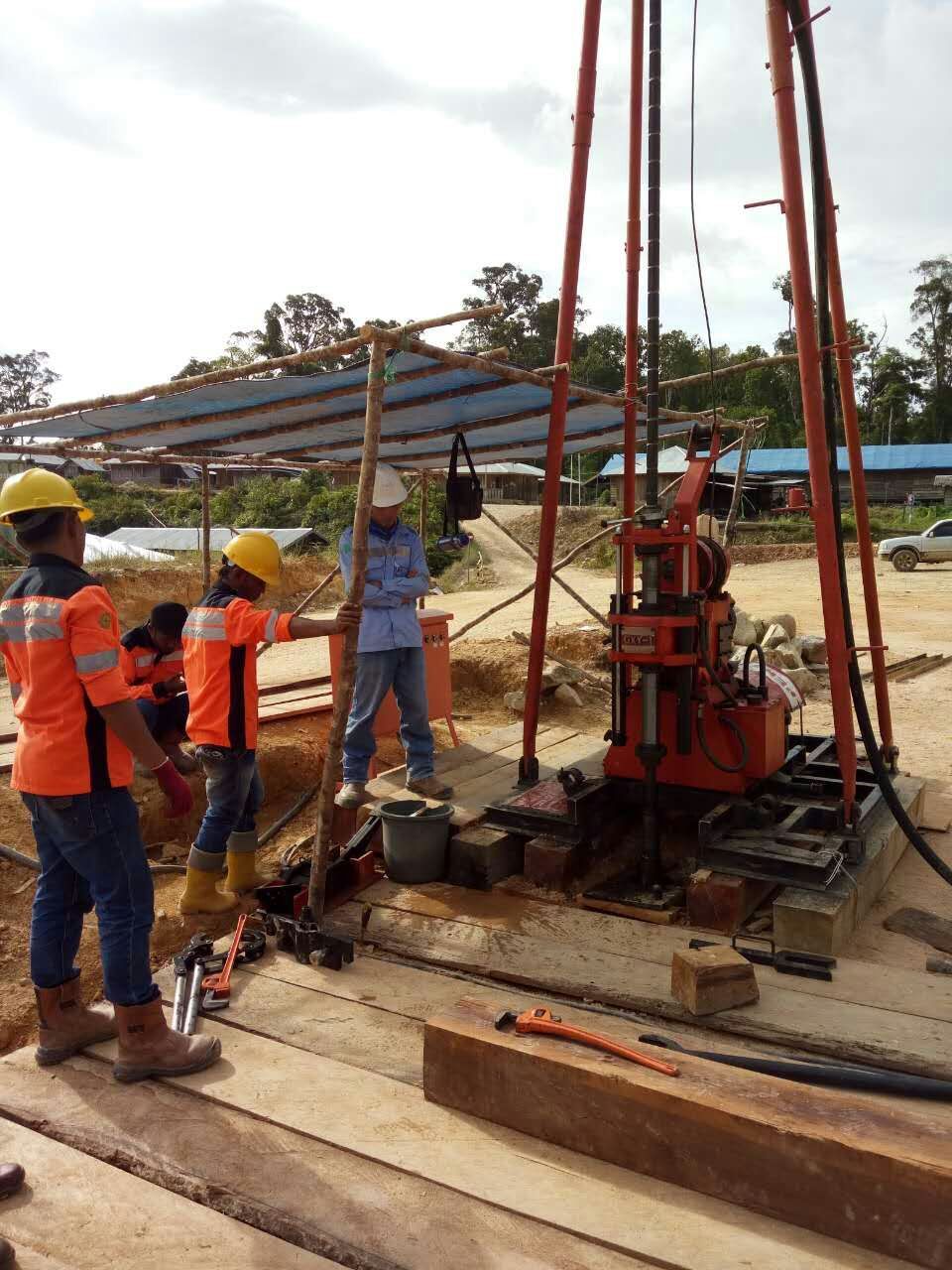

GXY-1 CORE DRILLING RIG Description: 1. Model GXY-1 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral's survey and exploration, water discharge tunnel,it is aso could for explore coal mine. 2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation. 3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in500kg, it can be moved easily especially in mountain area.
Specification:
Type
GXY-1
Hole depth
150m
Hole diameter
110mm
Final hole diameter
75mm
Diameter of drill rods
Φ42/50mm
Drilling angle
90°-75°
Dimension(L*W*H)
1640*1030*1440mm
Weight(without power unit)
500KG
Rotary head
Direct rotary speed
142;285;570 r/min
Feeding stroke
450mm
Lifting capacity
25kN
Feeding capacity
15kN
Max. Torque
1200N.m
Hoist
Running speed of drum
55;110;220 r/min
Max. lifting capacity, single line
10KN
Diameter of steel wire rope
9.3mm
Capacity of drum
27m
Mudpump(Horizontal Single-acting)
Max. displacement
77L/min
Max. pressure
1.2Mpa
Stroke
100m
Stroke per Minute
96min
Diameter of liner
80mm
Oil pump(YBC-12/80 Gear pump)
Pressure
8Mpa
Displacement
8ml/r
Speed
1500r/min
Power unit
Electric motor Model Y132M-4
7.5KW,1440r/min
Diesel engine Model S1100
10.3KW,2200r/min
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

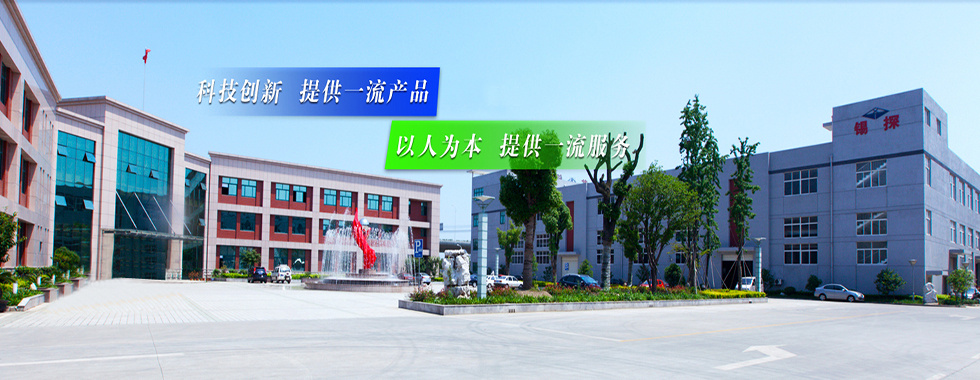

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
