| Prod Model: |
Q11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
According to Buyer |
| Working Voltage: |
According to Buyer |
| Price: |
Factory Price Direct Sales with Best Price |
| Quality: |
Near 30 Years Manufacturing Experiences |
| Service: |
Lifetime Service |
| Application: |
Machinery & Hardware |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type For Pipe And Tube Bending Machine: |
Electric Hydraulic Pipe Bender |
| Type: |
Cutting Machine |
| Type For Cutting Machine: |
Motorized |
Product Description
Product Introduction

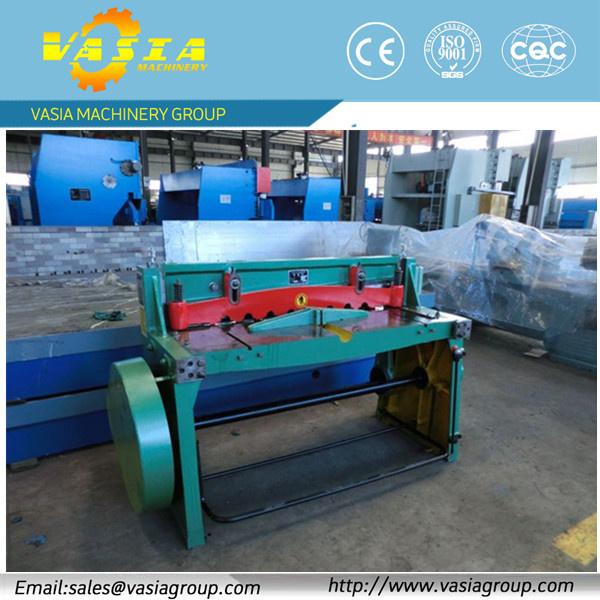

Mechanical Shearing Machine Q11 Series are of mechanical gate-mode, deep throat design,and overload protection device.
It has got the patent of steel construction.
The sheared metal sheet can be used directly without any other processing.
This mechanical shearing machine can be operated through turn-key clutch and foot switch, which can be controlled in both single and continuous cutting way.
Besides, this mechanical shear is of easy access to operation and maintenance.
Equipped with cast iron and top transmission structure,
also has a high tensile alloyed shearing blade,
with emergency stop buttons as well as a protection fence to ensure the security.
With such wonderful features,
this machine is widely accepted by customers from the Middle East, South Africa, Asia, South Africa, Europe and more.
Optional models
| Model | Max. Cutting Thickness
(mm) | Max. Cutting Width
(mm) | No. of Strokes (rpm) | Shearing Angle
(°) | Distance of back gauge
(mm) | Power of main motor
(kw) | Overall dimensions
(mm) | Weight
(kg) |
| 3×1300 | 3.0 | 1300 | 20 | 2°25' | 350 | 3 | 2115×1500×1300 | 1600 |
| 3×1500 | 3.0 | 1500 | 20 | 2°25' | 350 | 3 | 2415×1500×1300 | 1800 |
| 4×2000 | 4.0 | 2000 | 20 | 1°30' | 500 | 5.5 | 3200×1300×1610 | 3300 |
| 4×2500 | 4.0 | 2500 | 20 | 1°30' | 500 | 5.5 | 3580×1300×1610 | 3800 |
| 4×3200 | 4.0 | 3200 | 20 | 1°30' | 600 | 7.5 | 4380×1900×1600 | 5200 |
| 4×4000 | 4.0 | 4000 | 20 | 1°30' | 600 | 7.5 | 4650×1820×1700 | 6000 |
| 6×2000 | 6.3 | 2000 | 24 | 2° | 500 | 7.5 | 3180×1765×1550 | 4500 |
| 8×2000 | 8.0 | 2000 | 24 | 2° | 500 | 11 | 3180×1765×1550 | 5000 |
| 6×2500 | 6..0 | 2500 | 24 | 2° | 500 | 7.5 | 3680×2200×2020 | 5400 |
| 6×3200 | 6.0 | 3200 | 20 | 1°45' | 650 | 7.5 | 4300×2250×2150 | 7500 |
| 8×2500 | 8.0 | 2500 | 20 | 2°30' | 650 | 11 | 3680×2250×2450 | 6500 |
| 13×2500 | 13.0 | 2500 | 30 | 3° | 700 | 15 | 3680×2330×2500 | 13300 |
| 16×2500 | 16.0 | 2500 | 30 | 3° | 700 | 22 | 3680×2800×2450 | 14500 |
| 20×2500 | 20.0 | 2500 | 25 | 3° | 750 | 22 | 3950×2800×2900 | 20000 |
As a specialized China Metal-Forming machinery manufacturer and supplier,
apart from mechanical shearing machine, we can offer other hydraulic machines,
such as hydraulic shearing machine ,hydraulic press brake,hydraulic rolling machine,
hydraulic press machine,hydraulic iron worker and so on,
Please freely to contact us if you are interested in our machines,thanking you !
VASIA Machinery Manufacturing Company is one of the oldest manufacturer specialized in making shearing machine, press brake, rolling machine, iron worker, notching machine and power press. It was born in 1987 and changed to be an incorporated company in 2006. It is one of the oldest manufacturers in making most kinds of metal-forming machinery.
With uninterrupted development and accumulation, now our company has been a joint venture with three factories since 2013. Its total productivity is over one thousand sets machines every year. NC or CNC shearing machines and press brake machines are getting the biggest market share all the time. Our company is well equipped and has a huge contingent of technicians. To chase up with the market and satisfy with all customers, we have developed and increased investment. Now we have advanced NC and CNC manufacturing equipments and quality detecting system. We have got ISO9001: 2008 certificate early in this business. The export products have also got the European Union CE certificate. A perfect quality system and advanced engineering design make production quality better than the others. Products include the manual mechanical type, electric driven type, hydraulic driven type, NC and CNC types that meet different requirements.
Our main products include shearing machine, press brake, rolling machine, iron worker machine, punch press machine and road sweeper machines. They are mainly used in hardware, kitchen ware, electrical appliance, building materials, car industry, petrochemical industry, vessel, electric power industry ect.
We keep on improving ourselves and developing the new products. Now our products have been exported to nearly 40 countries and regions and have been highly appraised by customers.
In the process of globalization, we always follow the principles of "Survive by quality, develop by high efficiency and expand by high credibility". We will persevere and continue to provide customers with the first-class production and services so as to be a better and better manufacturer.
