| Prod Model: |
QC12Y |
| Color: |
According to Buyer |
| Working Voltage: |
According to Buyer |
| Price: |
Factory Price Direct Sales |
| Quality: |
Almost 30 Years Manufacturing Experiences |
| Service: |
Lifetime Service |
Product Description
Product Introduction
1.This hydraulic swing beam shear is of total European design: streamlined looking monoblock.
The frame of this machine is steel welded construction, and stress is eliminated by vibration.
so it is with high strength, stable performance, easy operation and convenient maintenance.
2.As the cutting knife beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.
4.Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing;
5.The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding;
6.It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial;
7.Both motorized adjusting and manual adjusting for the back gauge;
8.Cutting times of this hydraulic swing beam shear are controlled by the time relay;
9. A set of standard upper and lower blades;
10.Standard front support sheet frame;
11.Protection fence and the electric interlocker to ensure the safety of the operator;
12.This machine is certified by the European Union CE certification and ISO quality system certification.
Optional models
| Model | Cutting Thickness | Cutting Length | Cutting angle | Strength | Strokes | Main power | Weight | Dimension(L x W x H) |
| | (mm) | (mm) | (°) | (KN/CM) | (Spm) | (kw) | (kg) | L×W×H(mm) |
| QC12Y-4×2500 | 4 | 2500 | 1°30′ | ≤450 | 10 | 5.5 | 3800 | 3040×1610×1620 |
| QC12Y-4×3200 | 4 | 3200 | 1°30′ | ≤450 | 10 | 5.5 | 5000 | 3840×1610×1620 |
| QC12Y-4×4000 | 4 | 4000 | 1°30′ | ≤450 | 8 | 5.5 | 6500 | 4600×1700×1700 |
| QC12Y-4×6000 | 4 | 6000 | 1°30′ | ≤450 | 5 | 7.5 | 11000 | 6460×2100×3200 |
| QC12Y-6×2500 | 6 | 2500 | 1°30′ | ≤450 | 10 | 7.5 | 5000 | 3040×1610×1620 |
| QC12Y-6×3200 | 6 | 3200 | 1°30′ | ≤450 | 9 | 7.5 | 6000 | 3840×1610×1620 |
| QC12Y-6×4000 | 6 | 4000 | 1°30′ | ≤450 | 8 | 7.5 | 8200 | 4620×1750×1700 |
| QC12Y-6×6000 | 6 | 6000 | 1°30′ | ≤450 | 5 | 11 | 16500 | 6480×2100×2300 |
| QC12Y-8×2500 | 8 | 2500 | 1°30′ | ≤450 | 10 | 7.5 | 6000 | 3040×1700×1700 |
| QC12Y-8×3200 | 8 | 3200 | 1°30′ | ≤450 | 8 | 7.5 | 7200 | 3860×1700×1700 |
| QC12Y-8×4000 | 8 | 4000 | 1°30′ | ≤450 | 8 | 7.5 | 8800 | 4640×1700×1700 |
| QC12Y-8×6000 | 8 | 6000 | 1°30′ | ≤450 | 8 | 11 | 18000 | 6480×2100×2350 |
| QC12Y-10×2500 | 10 | 2500 | 1°30′ | ≤450 | 9 | 11 | 7300 | 3040×1700×1700 |
| QC12Y-10×3200 | 10 | 3200 | 2° | ≤450 | 9 | 11 | 8000 | 3860×1700×1700 |
| QC12Y-10×4000 | 10 | 4000 | 2° | ≤450 | 8 | 11 | 12050 | 4650×2100×2000 |
| QC12Y-10×6000 | 10 | 6000 | 1°30′ | ≤450 | 5 | 15 | 24000 | 6500×2100×2300 |
| QC12Y-12×2500 | 12 | 2500 | 1°40′ | ≤450 | 9 | 18.5 | 9000 | 3140×2150×2000 |
| QC12Y-12×3200 | 12 | 3200 | 1°40′ | ≤450 | 9 | 18.5 | 10800 | 3880×2150×2000 |
| QC12Y-12×4000 | 12 | 4000 | 1°40′ | ≤450 | 8 | 18.5 | 13000 | 4680×2150×2000 |
| QC12Y-12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 29500 | 6900×2600×2700 |
| QC12Y-12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 46500 | 9000×3500×3500 |
| QC12Y-16×2500 | 16 | 2500 | 2°30′ | ≤450 | 9 | 18.5 | 11000 | 3140×2150×2000 |
| QC12Y-16×3200 | 16 | 3200 | 2°30′ | ≤450 | 8 | 18.5 | 13000 | 3880×2150×2000 |
| QC12Y-16×4000 | 16 | 4000 | 2°30′ | ≤450 | 8 | 18.5 | 16300 | 4650×2150×2200 |
| QC12Y-16×6000 | 16 | 6000 | 2°30′ | ≤450 | 5 | 22 | 36000 | 6900×2700×2700 |
| QC12Y-16×8000 | 16 | 8000 | 2°30′ | ≤450 | 5 | 22 | 75000 | 9000×3500×3500 |
| QC12Y-20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 15800 | 3440×2300×2500 |
| QC12Y-20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 18500 | 4150×2350×2700 |
| QC12Y-20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 21500 | 4850×2600×2400 |
| QC12Y-20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 47000 | 6700×3000×3000 |
| QC12Y-25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 19000 | 3200×2700×2900 |
| QC12Y-25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 23000 | 4200×2500×2600 |
| QC12Y-30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 23500 | 3300×2900×3000 |
| QC12Y-30×3200 | 30 | 3200 | 3°30′ | ≤450 | 4 | 40 | 26000 | 4200×2500×2600 |
| QC12Y-40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 38000 | 3200×3300×3200 |
| QC12Y-40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 49000 | 4300×3300×3000 |

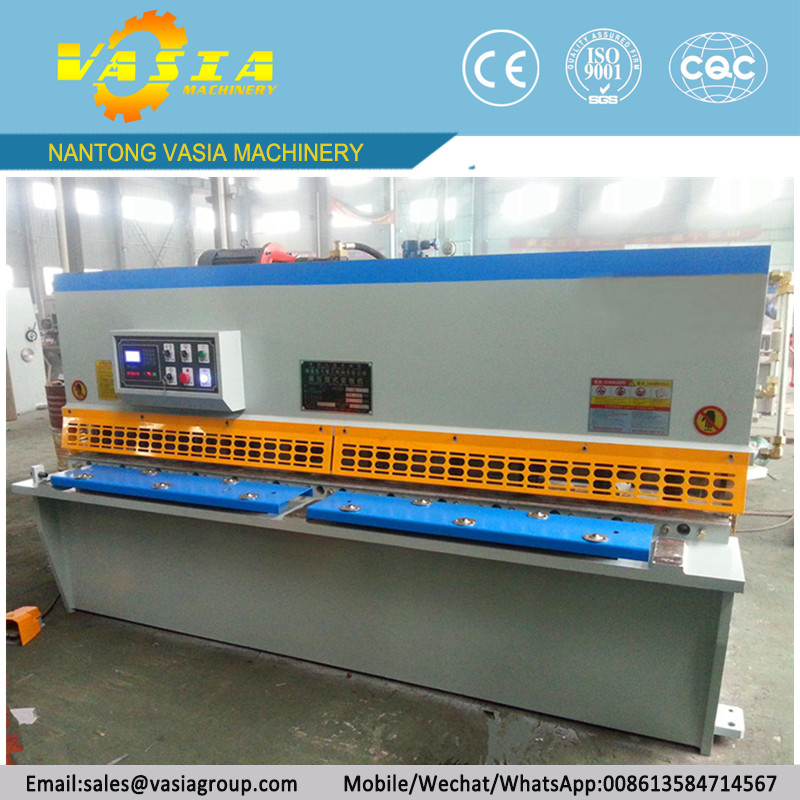

Product Picture
As a specialized China Metal-Forming machinery manufacturer and supplier,
apart from the shearing machine, we can offer other hydraulic machines, such as hydraulic press brake,hydraulic rolling machine,hydraulic press machine,hydraulic iron worker and so on,
Please freely to contact us if you are interested in our machines,
thanking you !
VASIA Machinery Manufacturing Company is one of the oldest manufacturer specialized in making shearing machine, press brake, rolling machine, iron worker, notching machine and power press. It was born in 1987 and changed to be an incorporated company in 2006. It is one of the oldest manufacturers in making most kinds of metal-forming machinery.
With uninterrupted development and accumulation, now our company has been a joint venture with three factories since 2013. Its total productivity is over one thousand sets machines every year. NC or CNC shearing machines and press brake machines are getting the biggest market share all the time. Our company is well equipped and has a huge contingent of technicians. To chase up with the market and satisfy with all customers, we have developed and increased investment. Now we have advanced NC and CNC manufacturing equipments and quality detecting system. We have got ISO9001: 2008 certificate early in this business. The export products have also got the European Union CE certificate. A perfect quality system and advanced engineering design make production quality better than the others. Products include the manual mechanical type, electric driven type, hydraulic driven type, NC and CNC types that meet different requirements.
Our main products include shearing machine, press brake, rolling machine, iron worker machine, punch press machine and road sweeper machines. They are mainly used in hardware, kitchen ware, electrical appliance, building materials, car industry, petrochemical industry, vessel, electric power industry ect.
We keep on improving ourselves and developing the new products. Now our products have been exported to nearly 40 countries and regions and have been highly appraised by customers.
In the process of globalization, we always follow the principles of "Survive by quality, develop by high efficiency and expand by high credibility". We will persevere and continue to provide customers with the first-class production and services so as to be a better and better manufacturer.
