| Prod Model: |
GS-LFD3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
EPA, CS, SGS |
| Motor: |
Servo Motor |
| Cutting Nozzle: |
Ring Type |
| Drive Way: |
Dual Drive |
| Graphic Format: |
Dwg,Dxf |
| Size Of Control Computer: |
19 Inches |
| Control Mode: |
CNC |
| Laser Type: |
Fiber Laser |
| Cooling Mode: |
Water Cooling |
| Applicable: |
Metal |
Product Description
Metal Laser Cutting Machine CNC laser Metal Cutter for Sale

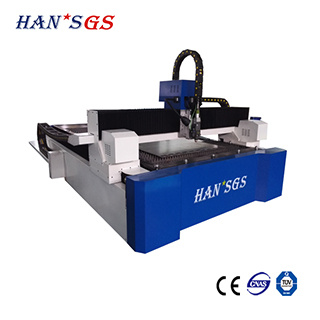

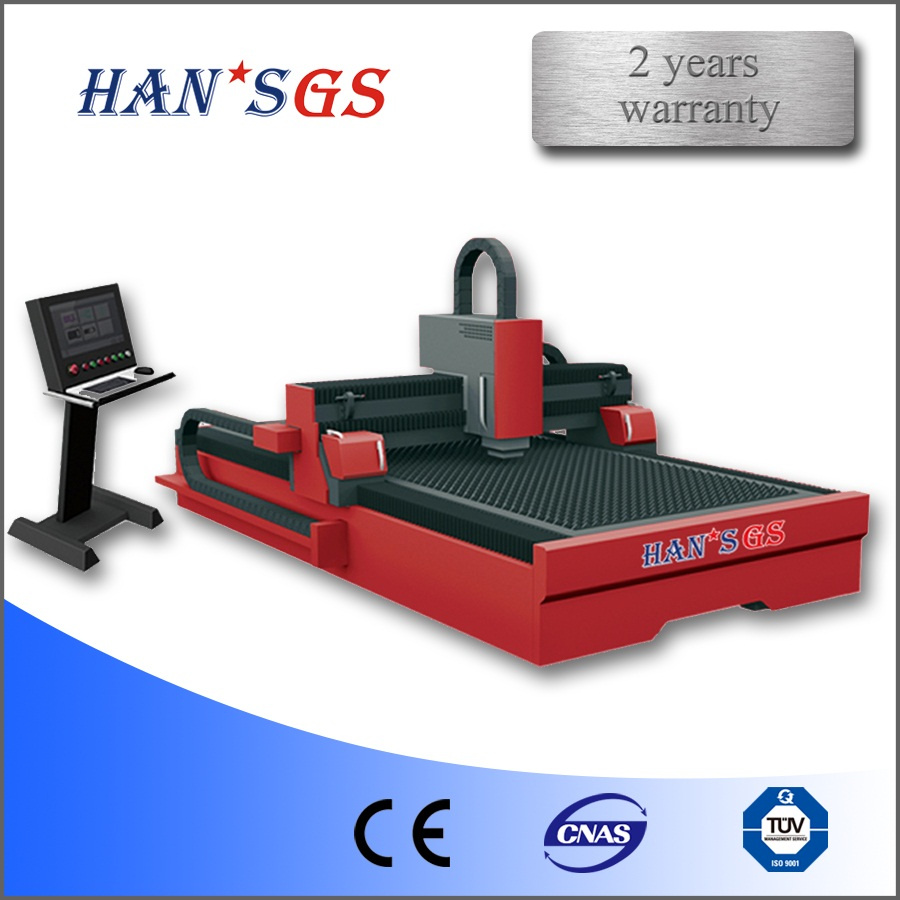

Pic display
Parameters | Model | GS-LFD3015(Dual Drive) |
| Output power of laser source | 500-1000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max. cutting speed | 40m/min |
| Max. positioning speed | 80m/min |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling | water cooling |
| Laser wavelength | 1070nm |
| Cutting gap | 0.1-0.3mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-12mm |
| Drive model | Imported servo motor |
| Voltage | 380V,50/60Hz |
| Temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Wok platform max bearing | 600Kgs |
| Complete System Coverage | 4500x2700mm |
| Total protection level of power supply | IP54 |
Features of Han's GS Laser Cutter
Low running and maintenance cost
Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
Environmental protection, low power consumption which is just 20%-30% compared with traditional CO2 laser cutting machine.
The maintenance cost of fiber laser cutting machine is much lower since it's without reflective lenses.

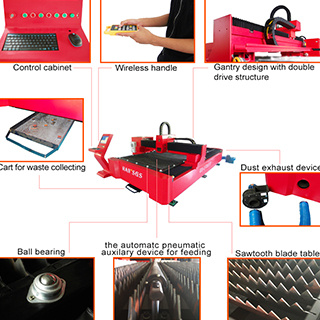

Rational Structure and Easy Operation
Professional CNC laser control system with computer control which is more simple and convenient for operation.
Satisfied with flexible processing with small size and intense structure design.
Convenient operation with fiber transmission, laser route adjustment is unnecessary.
Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and acceleration speed.
Adopt with alternative drive system and transmission system which are imported from abroad to ensure the high speed, high precision and high reliability.
The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.
Stable performance with high cutting speed, precision , efficiency and protection
High speed: Capable to cut sorts of metal board with air blowed; the cutting speed can reach dozens of meters per min.
High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision
High efficiency: Software with strong function, capable to design sorts of shapes, letters for cutting with easy and convenient operation.
High protection: the laser source and machine tool is comprehensively sealed to ensure the security of the operator, the whole working process can be viewed and inspected through the glass.
Shipping & packaging
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
