| Prod Model: |
180CC000000000001 |
| Name: |
Lathe |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Table |
| Precision: |
High Precision |
Product Description

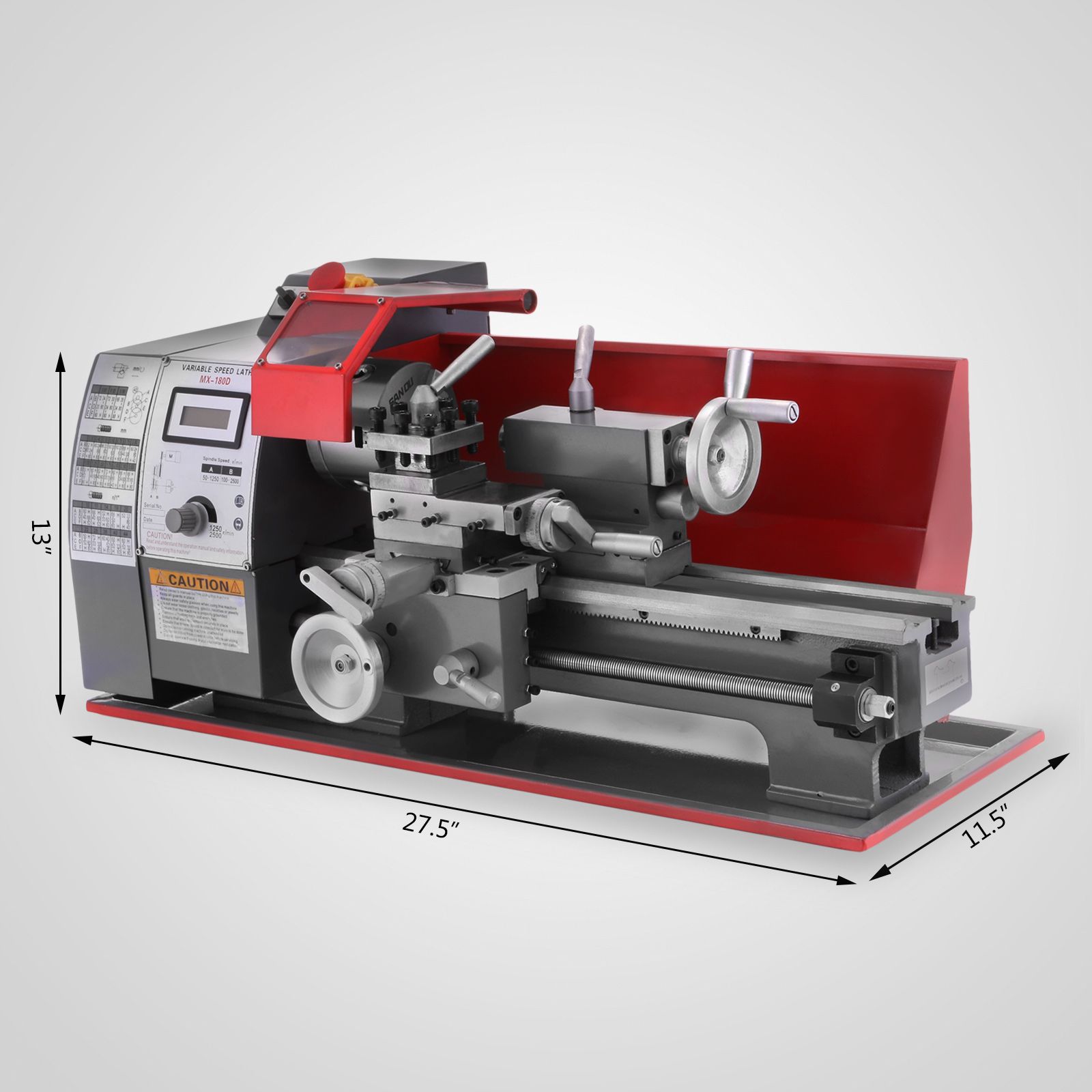

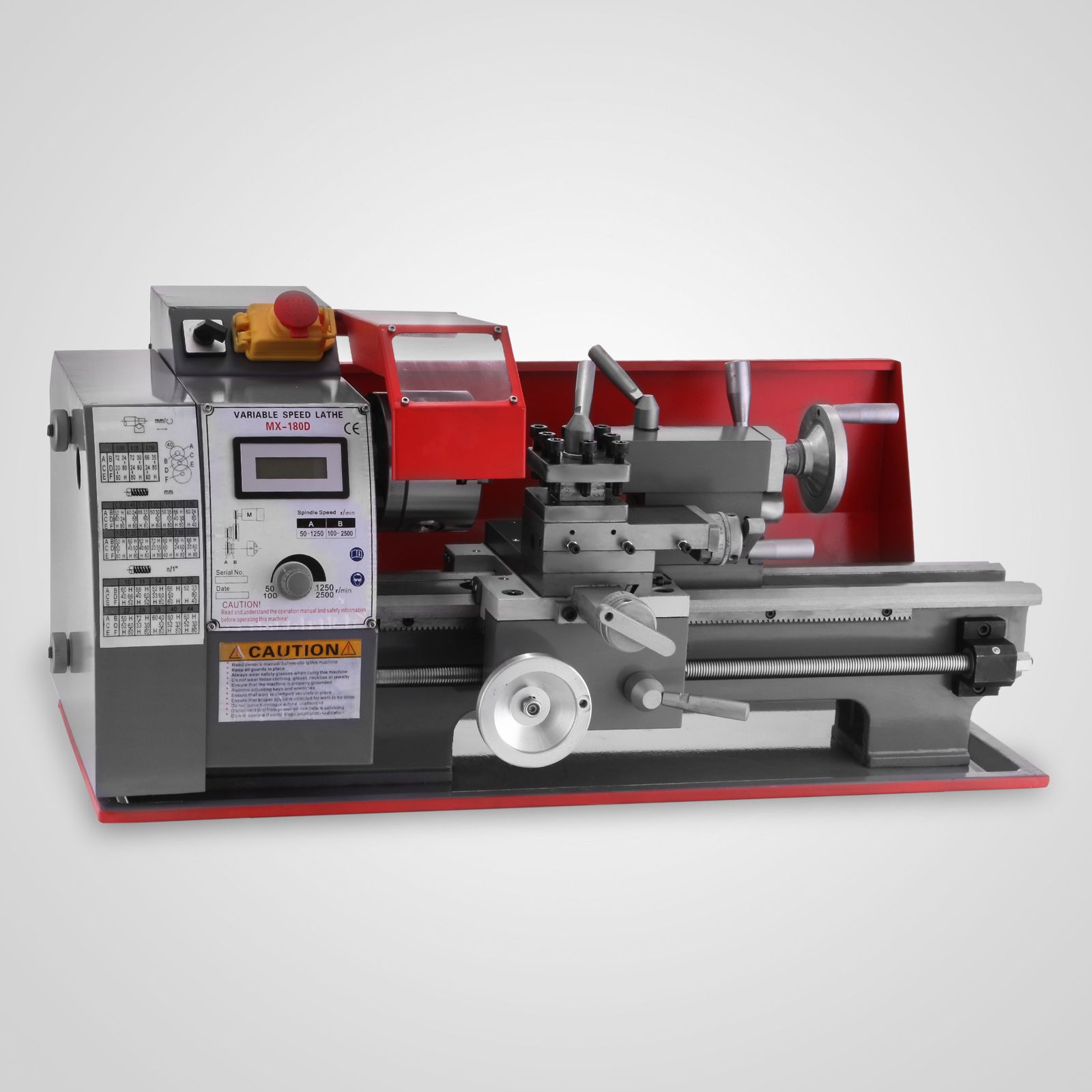

IntroductionThis 600W miniature lathe is a benchtop lathe which is designed to perform various types of metal, jade and wood turning. It is an ideal equipment for single-processing or small batch production and can be used in areas such as mini precision parts processing, sample processing and modeling works in Industry and school teaching, vehicle maintenance, home maintenance, scientific research units. It is also perfect for hobbyists and modelers who is looking to add finite detail to their construction project.
Whether you're turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge.
Application- Suitable for turnings of metal, wood, jade, etc.
- Ideal for use in labs, workshops, engineering and education.
- Can be turned within foreign aid, turning thread, turning taper and so on.
- CE certification.
- DC motor driven.
- Stepless speed regulation.
- High-frequency quenched slideway.
- Variable spindle speed of 50-1250/100-2500RPM.
- Spindle bearings use precise tapered roller bearings.

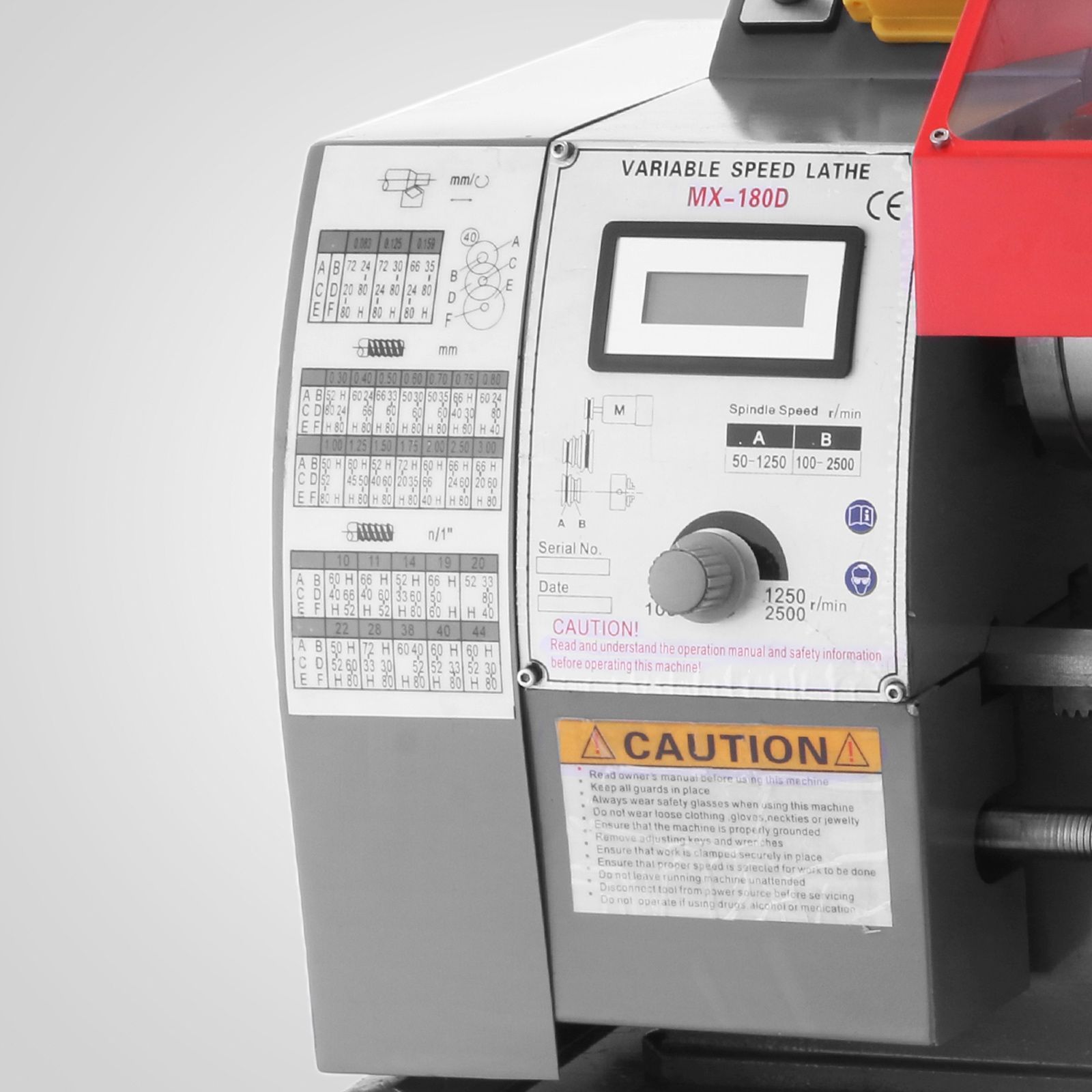

- Speed infinitely variable, easy to read via digital speed display.
- Prism bed guides inductively hardened and precision ground
- Rails have been quenched with high frequency and elaborate milling.
- Spindle can be adjusted positive and reverse rotation.
- 600w strong power, 300mm processing distance.
- High precision, able to turn out standard qualified works.
- Metal gears, metal shell, metal hand wheel,All metal gear without any plastic parts.
Technical- Power: 600W, 110V/60Hz
- Distance Between Centers: 12" (300mm)
- Swing Over Bed: 7" (180mm)
- Swing Over Cross Slide: 4" (95mm)
- Width of Bed: 4" (100mm)
- Taper of Spindle Bore: MT3
- Spindle Bore: 1inch (21mm)
- Range of Spindle Speeds: 50-1250RPM(LOW)/100-2500(HIGH)
- Range of Longitudinal Feeds: 0.08-0.16mm
- Range of Threads: 10-44T.P.I (0.5-3mm)
- Top Slide Travel: 2" (55mm)
- Cross Slide Travel: 3" (75mm)
- Tailstock Quill Travel: 2.5" (60mm)
- Taper of Tailstock Quill: MT2
- Gross Weight: 68kg (149.6lbs)
- Package Dimensions: 780*480*420mm (31"*19"*17")
- 1 X Mini Lathe
- 1 X 3-jaw Chuck (100mm)
- 1 X Splash Guard
- 1 X Chip Tray
- 1 X Toolbox
- 1 X English User Manual

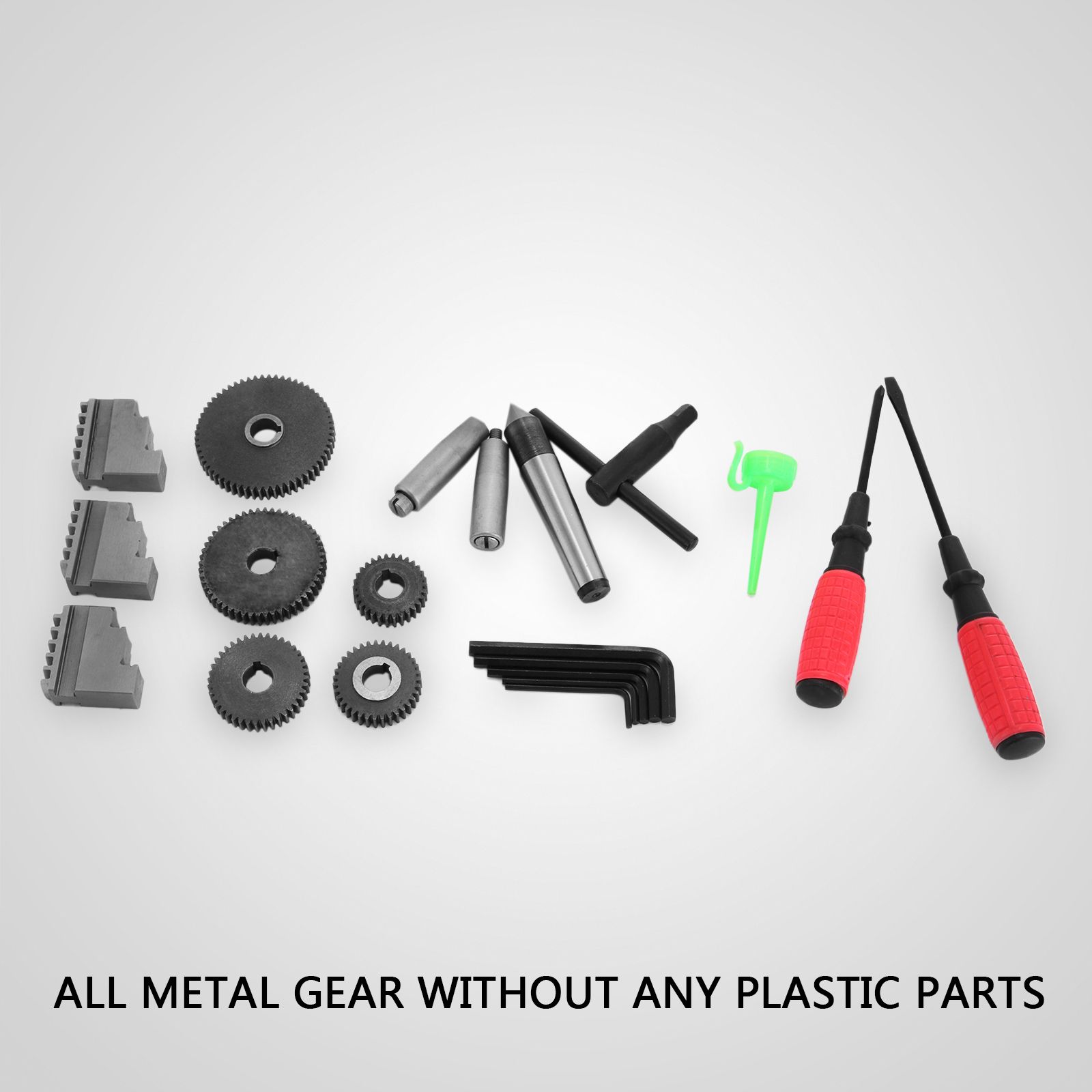

Tool Box Accessories
- 5 X Change Gears
- 3 X External Jaws
- 1 X Fasten Thimble
- 1 X Oil Can
- 1 X Chuck Wrench
- 5 X Hexagon Wrenches
- 2 X Screwdrivers
