Metal Precision Bench Lathe (Bench lathe Machine CZ1237G/1 CZ1337G/1)
| Price: |
US $ 2200-2400/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CZ1237G/1 CZ1337G/1 |
| Product Name: |
High Precision Metal Gap Bed Lathe Machine (CZ1237 |
| Max. Swing Over Bed: |
305/350mm |
| Max.Swing Over Gap: |
440/485mm |
| Max.Processing Length: |
940mm |
| Spindle Taper: |
Mt5 |
| Spindle Speed: |
64-1500rpm |
| Spindle Speed Steps: |
9steps |
| Spindle Motor: |
1.1kw |
| Spindle Bore: |
38mm |
| Tailstock Taper: |
Mt3 |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Table |
| Precision: |
High Precision |
| Tool Holder: |
4 Station Manual Tool Post |
Product Description
Presion Metal Bench Lathe ( Bench lathe Machine CZ1237G/1 CZ1337G/1)

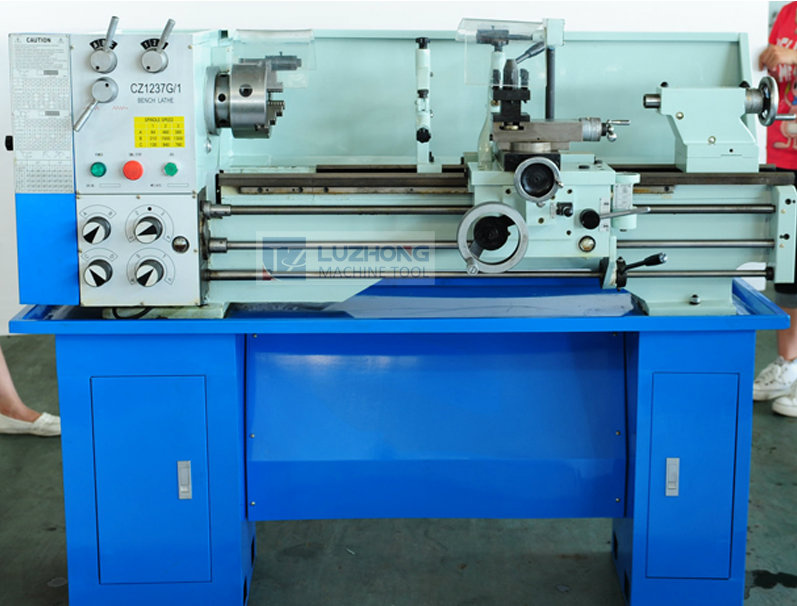

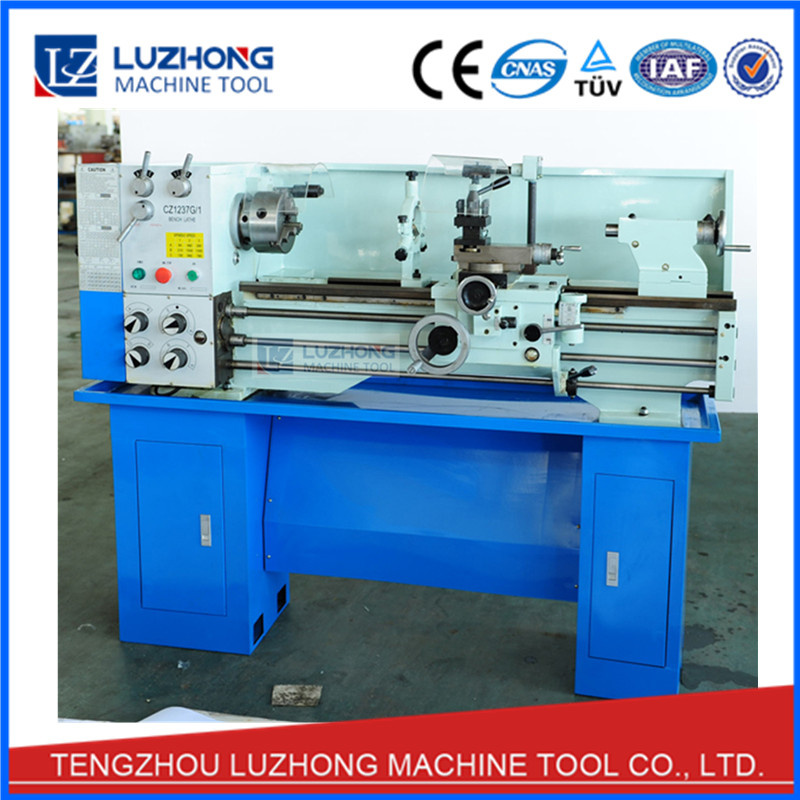

Product picture:
The main performance characteristics: 1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.ASA D4 cam-lock spindle nose
6.Various thread cutting functionProduct main technical parameters:| Specifications | Unit | CZ1237G/1 | CZ1337G/1 |
| Swing over bed | mm | 305 | 350 |
| Swing over carriage | mm | 173 | 215 |
| Swing over gap | mm | 440 | 485 |
| Width of bed-way | mm | 182 | 182 |
| Distance between centers | mm | 940 |
| Spindle taper | | MT5 |
| Spindle bore | mm | 38 |
| Step of speed | | 9 |
| Range of speed | rpm | 64~1500 |
| Metric thread | mm | 26kinds (0.4~7 ) |
| Inch thread | T.P.I | 34kinds(4~56) |
| Diameter of lead screw | mm | 2222(7/8'') |
| Pitch of lead screw | | 3mm or 8T.P.I |
| Saddle travel | mm | 810 |
| Cross travel | mm | 150 |
| Compound travel | mm | 85 |
| Barrel travel | mm | 95 |
| Barrel diameter | mm | 32 |
| Taper of center | mm | MT3 |
| Motor power | Kw | 1.1(1.5HP) |
| Motor for coolant system's power | Kw | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1780×750×760 |
| Stand (left)(L×W×H) | mm | 400×370×700 |
| Stand (right)(L×W×H) | mm | 300×370×700 |
| Machine(N.W/G.W) | Kg | 390/440 |
| Machine stand(N.W/G.W) | Kg | 70/75 |
Standard accessories:Tool post wrench
Double end wrench
Inner hexagon spanner
Screw driver
Dead centers
Center sleeve
Change gear
Oil gun
Tool box
Steady rest
Follow rest
3 jaw chuckOptional accessories :Drill chuck
Lead screw guard
4 jaw chuck seat
Taper shank
Work lamp
Tool post guard
Live centers
Coolant system
Chuck guard
Face plate
Taper attachment]
Back plate

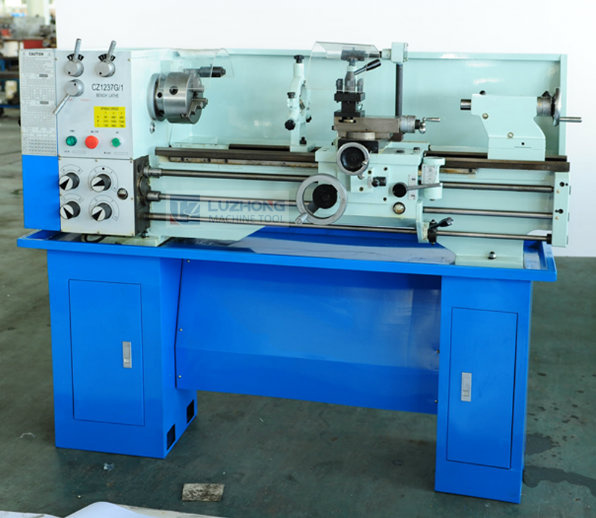

Foot brakeDetails Pictures:
