China Metal Engine Horizontal Lathe Machine (CD6236B CD6240B CD6250B CD6260B)
Price: |
US $ 4000-20000/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
CD6236B CD6240B CD6245B CD6250B CD6260B |
Product Name: |
China Metal Engine Horizontal Lathe Machine (CD623 |
Max. Swing Over Bed: |
360/400/450/500/600mm |
Max.Swing Over Gap: |
490/530/580/630/730mm |
Max.Processing Length: |
1000/1500/2000mm |
Spindle Bore: |
65mm |
Spindle Taper: |
Metric 70mm |
Spindle Speed: |
22-1800rpm |
Spindle Motor: |
4/5.5/7.5kw |
Tailstock Taper: |
Mt5 |
Type: |
Horizontal Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Setting Mode: |
Table |
Precision: |
Precision |
Tool Holder: |
4 Station Manual Tool Post |
Product Description

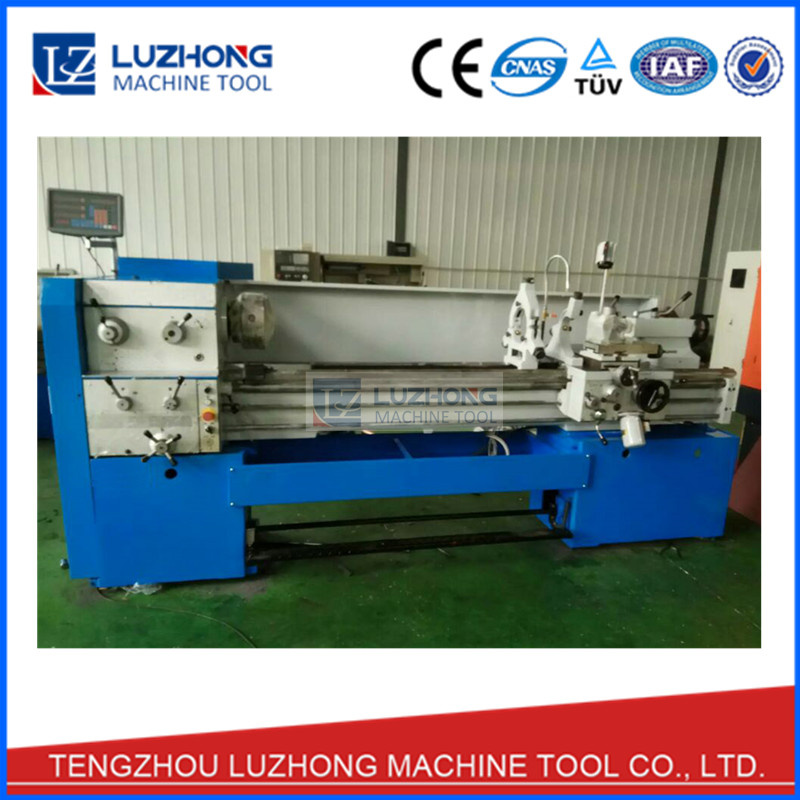

China Metal Engine Horizontal Lathe Machine (CD6236B CD6240B CD6250B CD6260B)

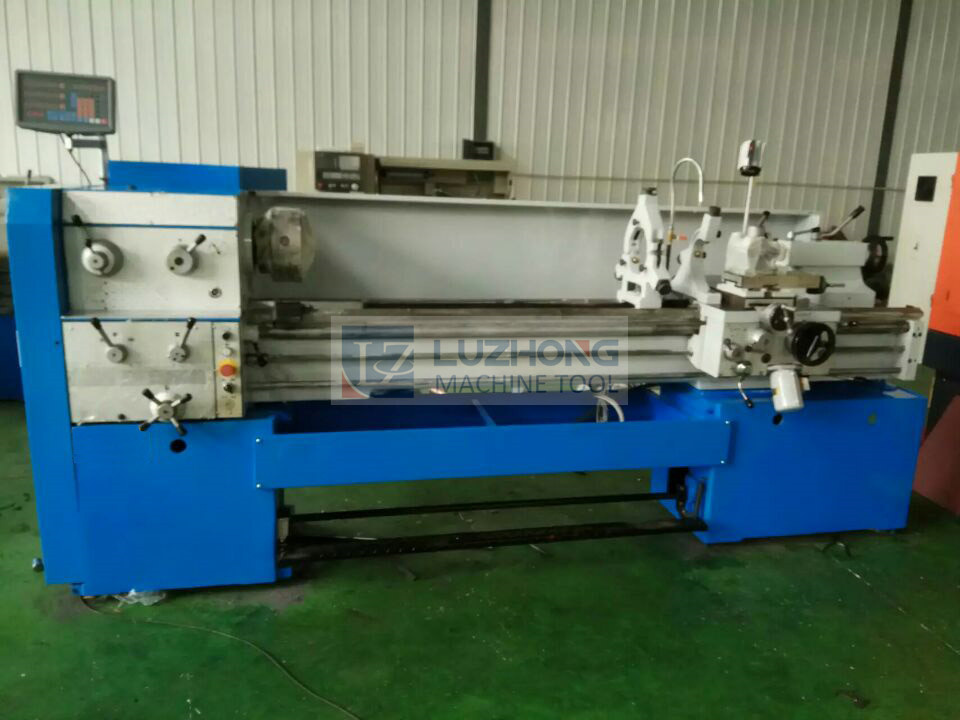

Product picture:Product main technical specification: Specifications | CD6136B CD6236B | CD6140B CD6240B | CD6145B CD6245B | CD6150B CD6250B | CD6160B CD6260B |
Max. swing over bed | 360mm | 400mm | 450mm | 500mm | 600mm |
Max. swing over cross slide | 185mm | 225mm | 285mm | 325mm | 380mm |
Center Distance | 1000/1500/2000mm |
Max. swing over gap | 490mm | 530mm | 580mm | 630mm | 730mm |
Effective length of gap | 260mm |
Bed Width | 330mm |
Spindle hole | 65mm |
Spindle nose | ISO-C6 or ISO-D6 |
Spindle taper | Metric 70mm |
Spindle speed | 22-1800(15 steps) |
Metric threads range | 0.5-28mm(66 kinds) |
Inch threads range | 1-56/inch(66 kinds) |
Moudle threads range | 0.5-3.5mm(33 kinds) |
Diametral threads range | 8-56D.P(33 kinds) |
Longitudinal feeds range | 0.072-4.038mm/rev(0.0027-0.15 inch/rev)(66 kinds) |
Cross feeds range | 0.036-2.019mm/rev(0.0013-0.075 inch/rev)(66 kinds) |
Rapid traveling speed of carriage | 5mm/min |
Lead screw size:diameter pitch | 35mm/6mm |
Cross slide travel | 300mm |
Compound rest travel | 130mm |
Cross-section size of toolshank | 20x20 | 25x20 | 25x20 | 25x20 | 25x25 |
Taper of tailstock sleeve | Morse No.5 |
Dia. of tailstock sleeve | 65mm |
Travel of tailstock sleeve | 120mm |
Main drive motor | 4.0kw or 5.5kw or 7.5kw | 7.5kw |
Coolant pump motor | 0.125kw |
Rapid traverse motor | 0.12kw |
Size(1000mm) | 2420x1150x1800mm |
Size(1500mm) | 2920x1150x1800mm |
Size(2000mm) | 3460x1150x1800mm |
Weight(1000mm) | 1520/2170kg | 1560/2210kg | 1580/2230kg | 1600/2250kg | 1640/2290kg |
Weight(1000mm) | 1750/2390kg | 1770/2410kg | 1820/2460kg | 1830/2470kg | 1870/2530kg |
Weight(1000mm) | | 2010/2780kg | 2050/2800kg | 2070/2820kg | 2130/2860kg |
Standard accessories :3 jaw chuckDriving plateCenter and center sleeveWrenchesOil gunOperation manual Optional accessories:Steady restFollow rest4 jaw chuckFace plateThread dialLongitudinal automatic stopLive centerQuick change tool postTaper turning attachment4 position longitudinal automatic trip
Contact Information :
Founded in 1992, We, Tengzhou Luzhong Machine Tool Co., Ltd., is a large enterprises with glorious chievement and long history, covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
We have been providing all kind of CNC milling machine, vertical machining center, lathe machines, drilling machines and others CNC mechanical equipment, products, to all sectors of the national economy for more than 20 years. And our machines are very popular overseas, and they are exported to more than 50 countries and zones, and our machines are loved and welcomed by customers.

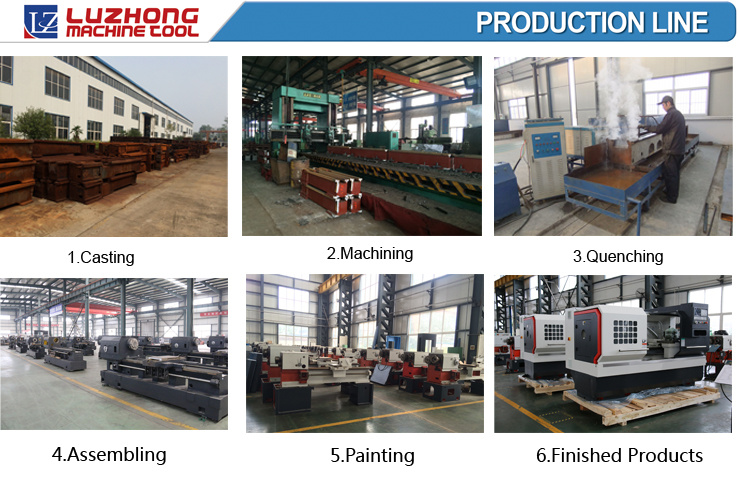

In the deepening of economic reform, in accordance with the requirements of the overall planning, we enhance our traditional manufacturing industry, so we build the Shandong CNC Machine Tool Production Base in Jiyang city, Shandong Province. In this production base, we produce vertical machining center, CNC lathe, CNC milling, assembly production line, machine tools and so on, it will be the world's first-class modern manufacturing enterprises.
In order to strengthen our own technology, research and development advantages, we, Tengzhou Luzhong Machine Tool Co., Ltd, founded our design company -Luzhong Design Co., Ltd in 2004, which specialize in the design of CNC machine tools.
Our company formed a good win-win relationship with mechanical and electrical companies in provinces, complete sets of companies and foreign agents. Not only in the country Company formed a mature sales network not only in the country, but also our products are exported to South America, Africa, the Middle East, Southeast Asia and other countries, and are trusted and praised by vast number of users. Our company focuses on strict and effective management, product quality and service is our eternal pursuit of the theme. Our company will always be the spirit of "the pursuit of excellence, sincere service" purposes, and strive to provide users with high-quality products and fast, thoughtful after-sales service.
"Regard the quality as life, undertake the heavy responsibility ", with your support, we will get big progress. Let us join hands to create a better future!
'The pursuit of excellence in service'
