| Prod Model: |
MJ6128YA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shandong China (Mainland) |
| Weight: |
740kg |
| Dimension(L*W*H): |
2800X2550X900mm |
| Power(W): |
4kw |
| Type: |
Frame Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Normal Precision |
| Certification: |
ISO |
Product Description
Quick Details
- Condition: New
- Type: Table Panel Saw
- Use: Woodworking
- Style: Horizontal
- Place of Origin: Shandong, China (Mainland)
- Brand Name: EVERLAST
- Model Number: MJ6128YA
- Usage: Sawing all kinds of panels
- Voltage: 380V
- Power(W): 4KW
- Dimension(L*W*H): 2800x2550x900mm
- Weight: 740KG
- Certification: CE,ISO9001
- Warranty: 12 Months
- After-sales Service Provided: Overseas third-party support available
- Cutting Length: 2800mm
- Sliding Table Width: 310mm
- HZ: 50HZ
- Degree: 90
- Scoring Motor: 0.75kw
- Lubrication Pump: Optional
- Pressure Device: Optional
- Color: According your requirements
- Dust Hood: Standard Dust Hood
- Series: Precision Panel Saw Machine for cutting wood
Packaging & Delivery
| Packaging Details: | High Quality Wooden Boxes |
|---|
| Delivery Detail: | 30 Days |
|---|

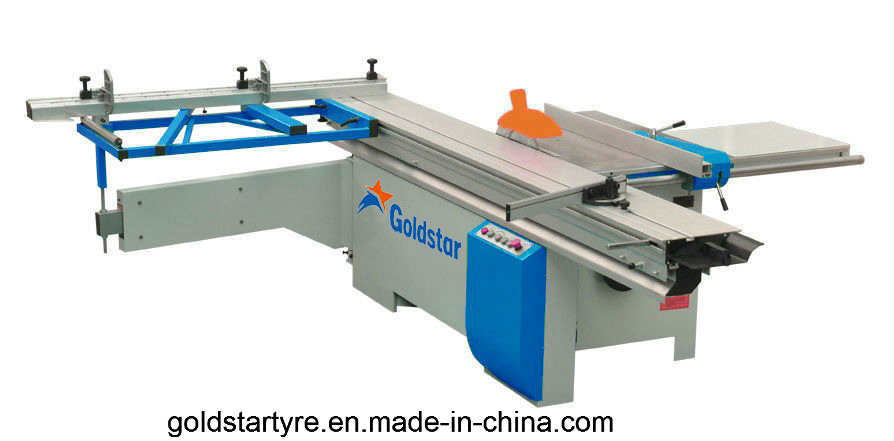

MJ6128YA Precision Panel Saw Machine for cutting wood
1.Apply to processing all kinds of density boards, shaving boards, wood-Based Panels , ABS Panels, PVC Panels , Organic glass plates and solid wood and others with wood structure and similar hardness.
2.Movable table Guide Track is plating chromium steel balls structure, exact and durable
3.Made of high-strength extruded aluminum alloy , movable table is high in strength and won't bend.
4)With oxidation treatment , movable table surface is beautiful and hardwearing.
Technical Feature
Dimension of sliding table | 2800×310mm |
Max cutting length | 2800mm |
Max lengthways cutting | 1250mm |
Cutter blade specification | 300 mm(φ250-φ300) |
Max.working height | 80mm |
Diameter of guide shaft spindle | 4000/6000rpm |
Main spindle diameter | 30mm |
Tilting saw bladle | 0-90° |
Main motor power | 4KW |
Scriber specification | 120mm |
Non-loadspeed | 8000r.p.m |
Scoring spindle diameter | 20mm |
Scoring motor power | 0.75kw |
Net weight | 600kg |
Gross weight | 740kg |
Overall dimensions | 2800×2550×900mm |
Machine Details
1. High Round Rod Rail Guide Track
2.Standard Dust Hood
3.Crosscut Fence
Optional Parts
5. Pressure Device
6. Lubrication Pump
7.Steel Ball Guide Track
Machine Configuration
