| Prod Model: |
MJ90Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Weight: |
1100kg |
| Hz: |
50Hz |
| Degree: |
90 |
| Type: |

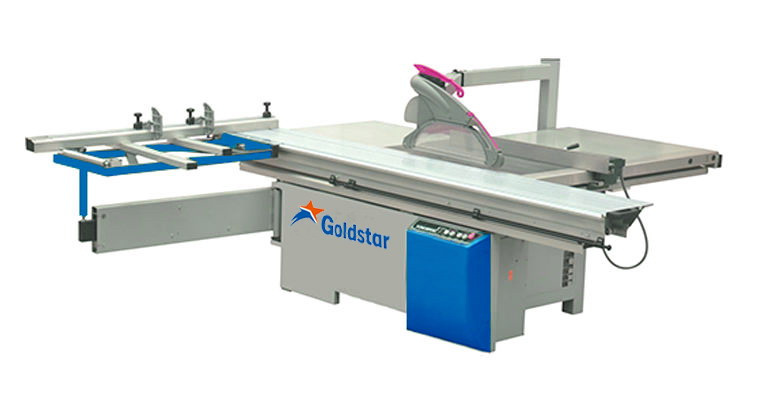

Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Product Description
1).Apply to processing all kinds of density boards, shaving boards, wood-Based Panels , ABS Panels, PVC Panels , Organic glass plates and solid wood and others with wood structure and similar hardness.
2).Movable table Guide Track is plating chromium steel balls structure, exact and durable
3).Made of high-strength extruded aluminum alloy , movable table is high in strength and won't bend.
4).With oxidation treatment , movable table surface is beautiful and hardwearing.
Technical Feature
Dimension of sliding table |
3200×415mm |
Max cutting length |
3200mm |
Max lengthways cutting |
1250mm |
Cutter blade specification |
φ250-φ300mm |
Max.working height |
80-120mm |
Diameter of guide shaft spindle |
50mm |
45°max working height |
4000/6000rpm |
Speed of main saw spindle |
30mm |
Main spindle diameter |
90° |
Tilting saw bladle |
5.5KW |
Main motor power |
120mm |
Scriber specification |
8000r/min |
Non-loadspeed |
20mm |
Scoring spindle diameter |
0.75kw |
Scoring motor power |
960kg |
Net weight |
1100kg |
Dimension |
3250×3150×900mm |
Machine Details
1.Altendorf Style Guide Track
2.Altendorf Style Dust Hood
3.Digital Readout
Optional Parts
4.Crosscut Fence
5. Lubrication Pump
6. Pressure Device
