| Prod Model: |
MJ6138D |
| The Name: |
Sliding Table Saw |
| The Size Of Sliding Table: |
3800*320 mm |
| Max. Cutting Length: |
3800 mm |
| The Tilting Of Saw Blade: |
90 Degree |
| The Diameter Of Main Blade: |
300 mm |
| The Diameter Of Scoring Blade: |
120 mm |
| Max. Cutting Width: |
1250 mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

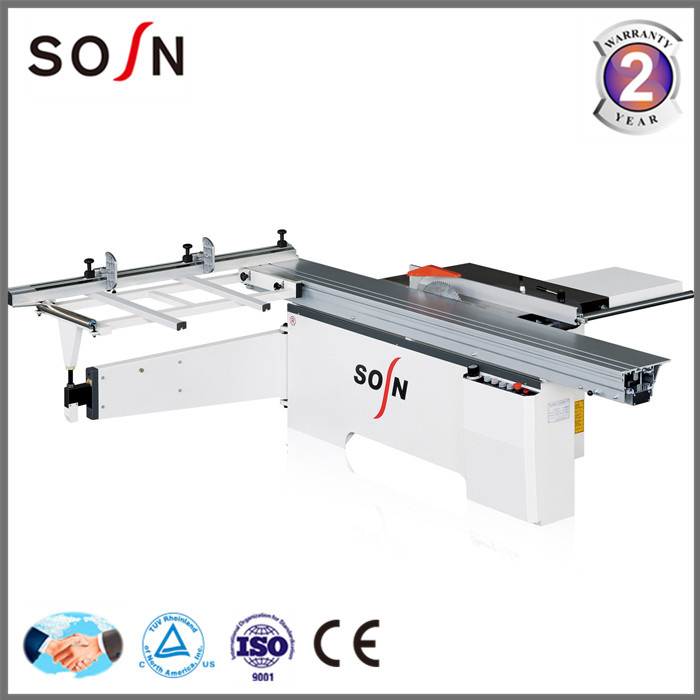

3800 mm sliding table saw for cutting boards MJ6138D
Main Feature:
1.Apply to processing all kings of density boards, shaving boards, wood-based panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2.Movable table guide track is plating chromium steel bars structure, exact and durable.
3.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
5.With oxidation treatment, movable table surface is beautiful and hardwearing.
Main technical parameter:
| Main technical parameter for MJ6132D |
| Dimension of sliding table | 3800x320mm |
| Gross cut capacity | 3800mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300mm) |
| Height of cut (300mm) | 80mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 90° |
| Main motor | 5.5kw 380V , 50HZ, Three phases |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Net weight | 800kgs |
| Overall dimension | 2850x3150x900mm |
Package: plywood package
20GP can contain 8 sets; 40HQ can contain 24 sets

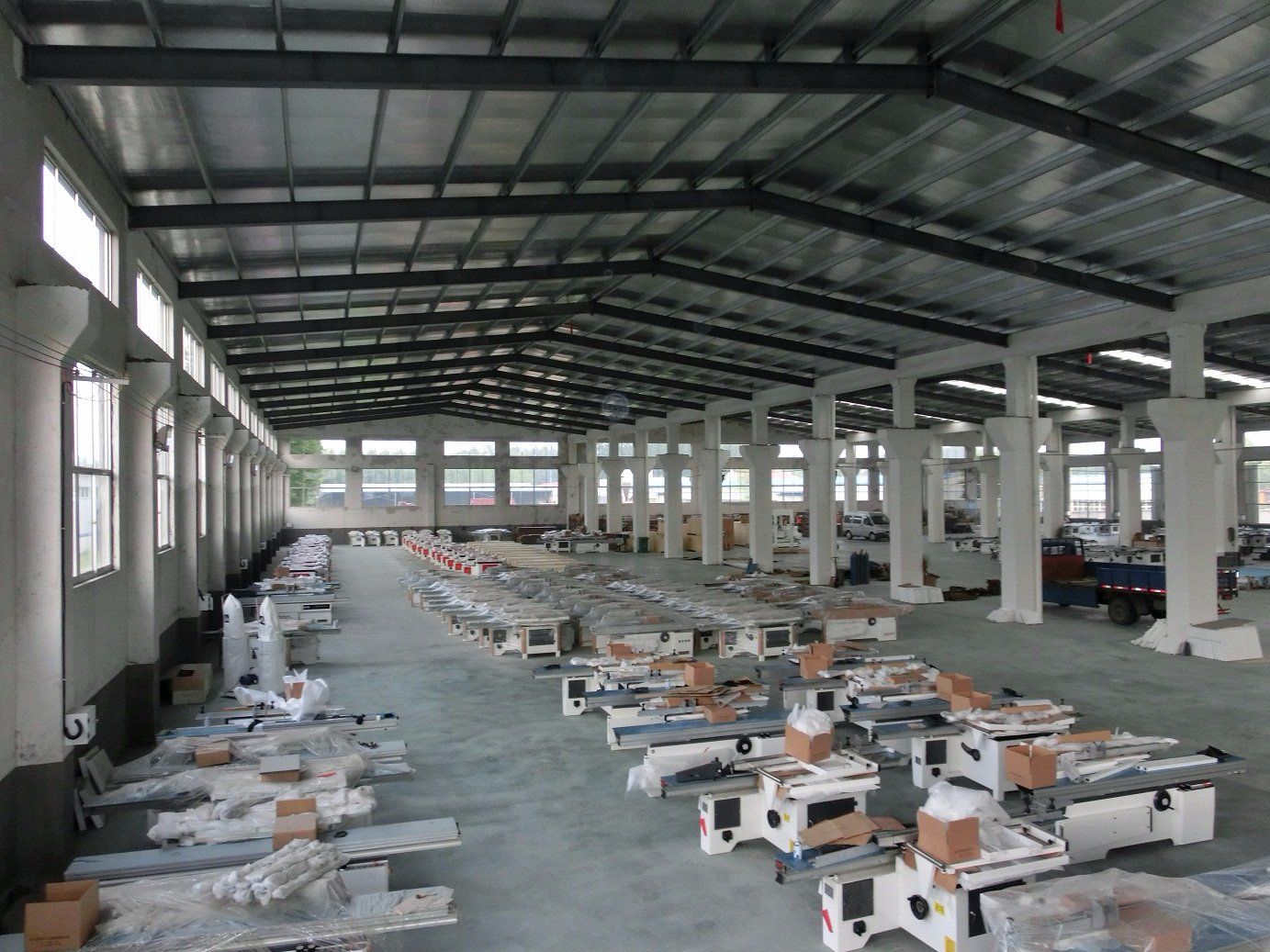

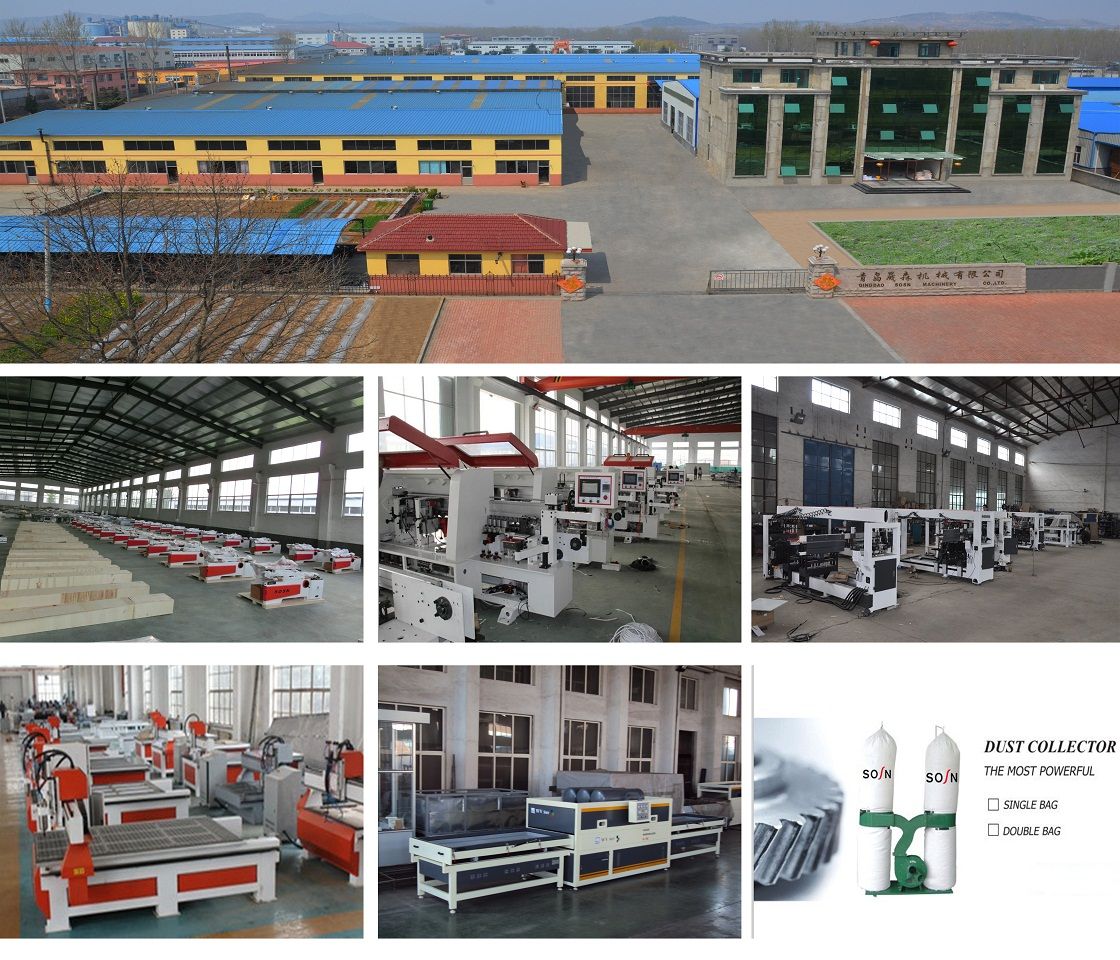

Our factory
if you have any questions,please contact me cherry
web:www.sosnmachinery.com
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
