Multi Blade Round Saw for Splitting Saw Machine

Name: Multi Blade Round Saw for Splitting Saw Machine
Brand: tool-buy.com
SKU: 725154922
Availability: InStock
Rating: 4.6 (115 reviews)

Price:	US $ 7000-9000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Jinhua Powerful Woodworking Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	MJ162
Feeding Speed:	6-24m/Min
Workebeach Cimension:	2290X270mm
Saw Spindle Speed:	4500r/Min
Votage:	380V/Customized
Motor:	3 Phase
Type:	Rip Saw
Layout:	Horizontal
Controlling Mode:	Hydraulic Semi-automatic
Automatic Grade:	Automatic
Precision:	Precision
Certification:	SGS

Product Description

STRENGTH WOODWORKING MACHINERY company have 40 years manufacturing experiences of solid wood equipment.
Production Description:

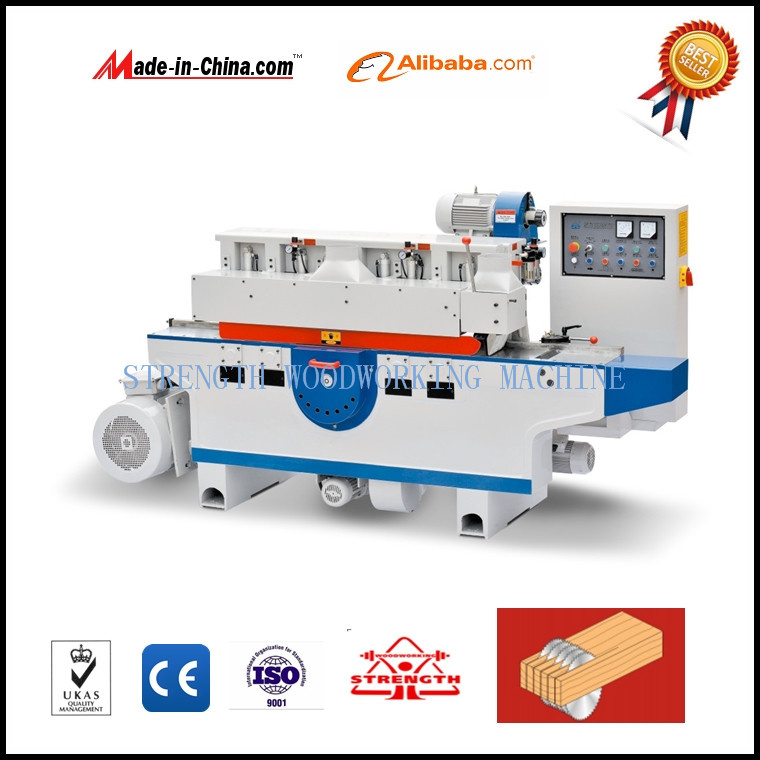

Hot sell multi-rip saw with max working width 200mm

Model:MJ162

Main technical data	MJ162
Max. cutting width	200mm
Working thickness	10-75mm
Min working length(continual feeding)	250mm
Feeding speed	6-24m/min
Saw spindle key slot	20mm*8.5
Saw spindle diameter	Φ50mm
Sleeve diameter	Φ70mm(customize 65mm)
Spindle speed	4500r/min
Suitable saw blade diameter	Φ255mm(cutting thickness 10-45mm) Φ305mm(cutting thickness 10-75mm)
Spindle motor	22kw/30kw
Spindle elevator	0.37kw
Feeding motor	1.5kw
Feeding elevator	0.75kw
Dust-collection cover diameter	Φ150*3
Workbench dimensions	2290*270mm
Workbench height	840mm
Machine dimensions	292010801480mm
Machine weight	1900kg

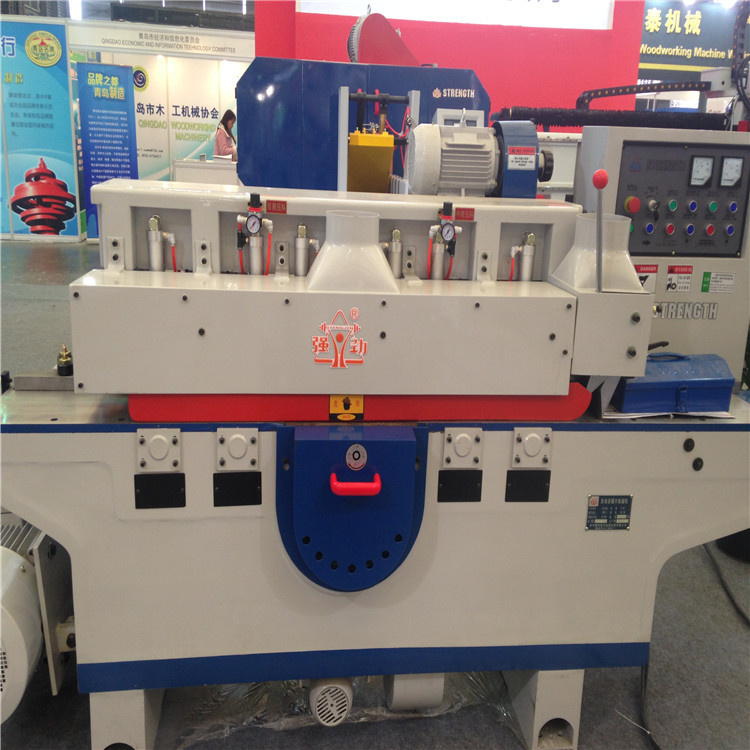

machine picture

Wood multiple rip saw MJ162 main features:

1, Good stability and cushioning effect as the machine processing for case iron.

2, Best intensity and high precision as main spindles using special steel with good processing.

3, Easy structure and convenient maintain as using roller feeding system.

4, Best endurance as special processing for workbench.

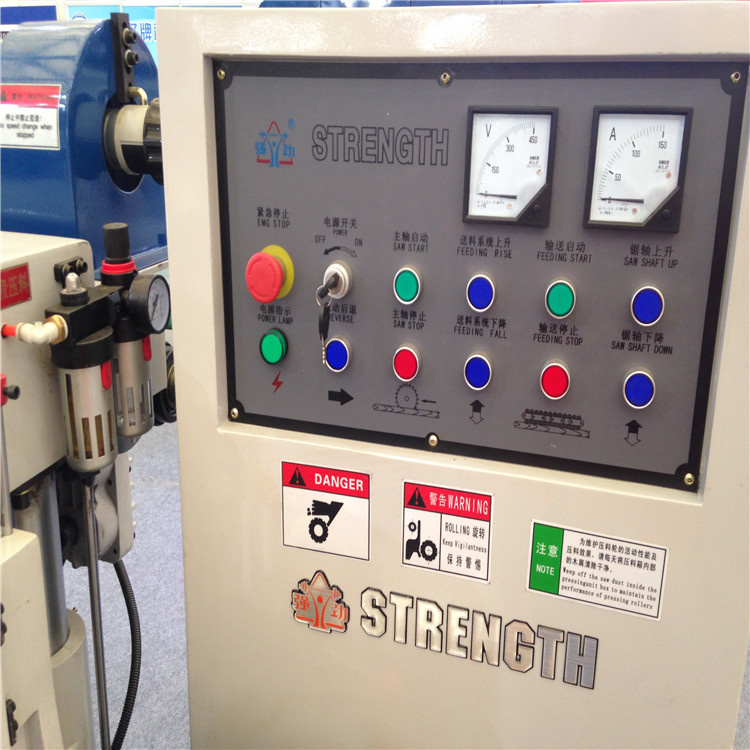

5, High sensitive and safety as using French Schneider electric system with protection.

6, Smooth feeding and less maintain.

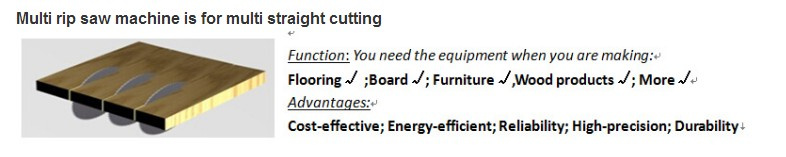

Functions

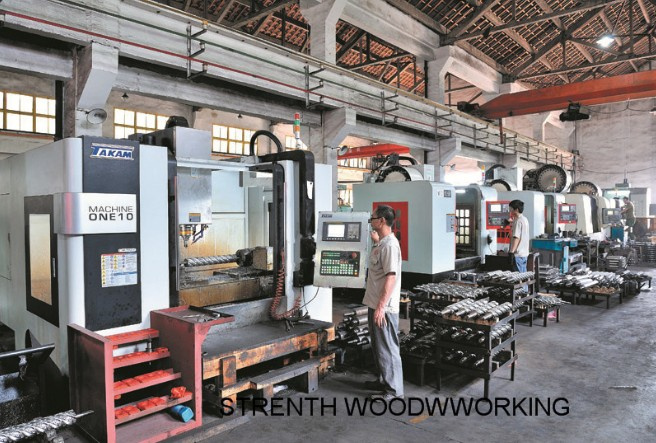

Company information:
Our manufacturer is specializing in the production of woodworking machinery in China. Products cover eight series and above forty types , like Planer Series as Press Planer, Surface Planer, Thickness planer , Double Side Planer; Four side planer; Saw Series as Rip Saw , single and Multiple Saw, Cutting saw, sliding table saw, etc.

More than 40 years development, we have professional team, technical advantage, quality guarantee, reasonable price and top-rate service.

FAQ
Q: What is your leading time?
A: Within 7 days for motor 3 phase, 380V, 50Hz, 10-20 days if the motor is different.
Q: Where is your loading port?
A: Shanghai or Ningbo. etc, China port
Q: What are your payment term?
A: 30% deposit and balance T/T before shipment.
Q: What's your warranty time?
A: 12 months for machining parts and 6 months for electronic parts.
Q: Can you do the OEM or ODM?
A: Our brand is STRENGTH, but we can make us your brand and color.

Jinghua Powerful(STRENGTH) Woodworking Machinery Co., Ltd., is an advanced enterprise of ministry & technology advanced enterprise of Zhejiang province. It lies in Yangbu town by the south of Qu River, the upper reach of Qianjiang River, which is the central section of Zhejiang province. Preponderance in location, convenient in traffic, with 03 provincial road & Hangjingqu autobahn pass through the town. The company occupies 78 thousand sq. M., with 31 thousand sq. M. Architectural area. The company, which is specialized in manufacturing "STRENGTH" brand woodworker machine series, has excellent technicians, complete machine equipments, advanced inspection & account method, and has passed ISO9001-2000 and CE System of Quality Certification. After thirty years development, the company enlarges gradually and has owned eight series, more than forty kinds of products from the original single product. It also accepts the order of special specs. The products are well sole all over the country and the Southeast Asia, among which the produce and sale quantity of single side planer is No. 1 China. The products are favorable to the consumers. With the improverment of the market demand, we will continue to develop new products to meet different consumers`requirementS.

"manufacture high quality products, create value for consumers" is our target.

"quality first, consumer foremost" is our tenet

We always embrace the market principle of "satisfy the consumer"

We believe "Qiangjin will boost its own development with powerful motility & bring powerful development to the consumers at the same time. "

We are looking forward to cooperating with you!

We are the manufacturer for woodworking machinery 40 years with good quality and best price.

Main machines has: 1, Wood Jointer; 2, Wood Single Planer; 3, Wood Double Sided Planer; 4, Wood Four Side Moulder; 5, Wood Rip Saw; 6, Wood Ede Trimming Saw; 7, Wood Multiple Rip Saw; 8, Wood Horizontal Band Saw.
