Multi-Function Geological Exploration Core Drilling Machine with Top Quality (HFP600PLUS)

Multi-Function Geological Exploration Core Drilling Machine with Top Quality (HFP600PLUS)
Price: US $ 149000-169000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: HFP600 plus
Power Engine: Kubota D1105.T,4×23.5kw/3000rpm
Hydraulic System: American Parker Valve,Water Cooler
Maximum Torque: 650n.M
Maximum Rotation Speed: 1300rpm
Winch Average Speed: 150m/Min
Winch Lift: 700kg
Height Of The Mast: 5m
Platform Area/Module Quantity: 4m×4m/13 Piece
Gross/Maximum Module: 1500kg/180kg

Product Description

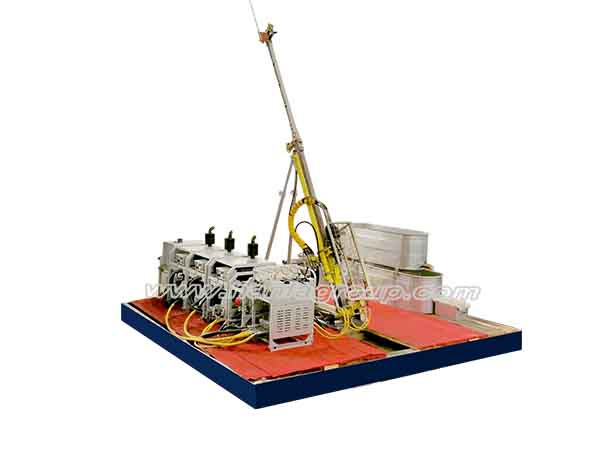

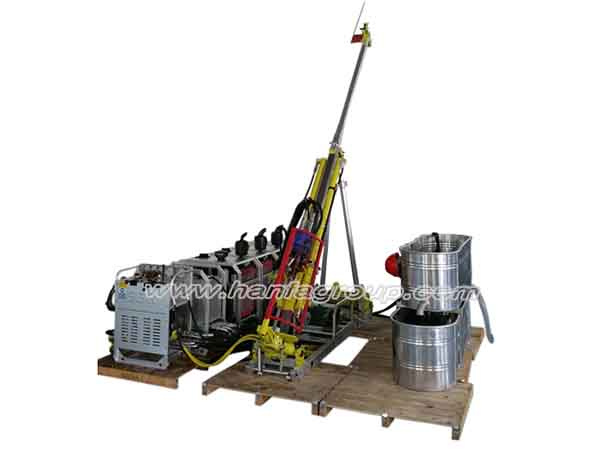

Multi-function geological exploration core drilling machine with top quality(HFP600PLUS)

As Hanfa's most powerful portable hydraulic drilling rig, HFP600 Plus hydraulic portable diamond core drill rig has been widely used among exploration projects across the country.With its high efficiency, easy accessibility and well-established technical platform, it has been proved to be the most efficient and reliable drilling rig in middle-range deep hole drilling area.







 HFP600 Plus hydraulic portable diamond core drill rig technical data:

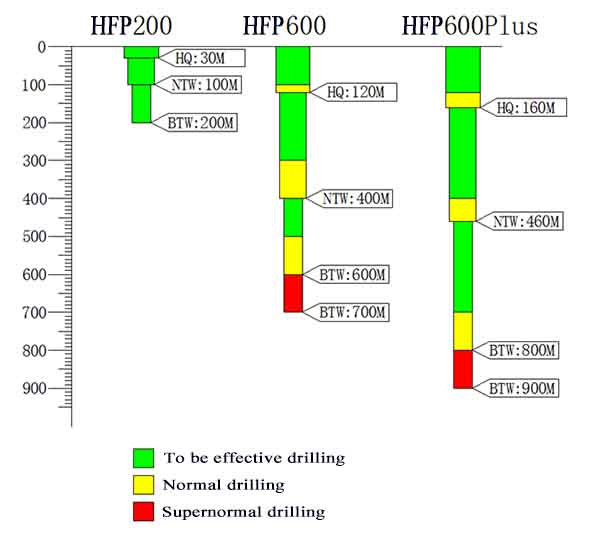

Drilling depth capacityHQ/NTW/BTW  160/460/800m
Hole DiameterRod Length 1.5m96/75.7/60mm
Core Diameter 63.5/56/42mm
Power engineKUBOTA D1105.T,4×23.5KW/3000RPM
Hydraulic systemAmerican Parker valve,water cooler
Maximum pressure 21Mpa/max,Maxium flow 160L/min
Top drive rotation headMaximum torque650N.m
Maximum rotation speed1300rpm
Feed travel 1.83m
Pull/Thrust50KN/30KN(Single cylinder)
WinchAverage speed150m/min
Lift700kg
Were Diameter5mm
Were accommodation900m
MastHeight of the mast on 90 degree5m
Drilling angle45º-90º(standard )
Size and weightPlatform area/Module quantity4m×4m/13 piece
Gross/Maximum module1500kg/180kg

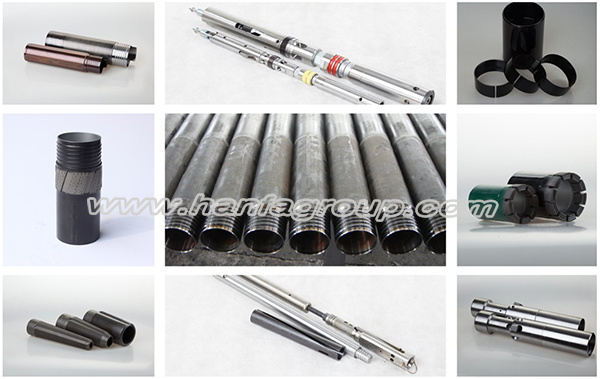

Drilling Accessories:



Advandge---HFP600 Plus hydraulic portable diamond core drill rig

Rich practical experiences

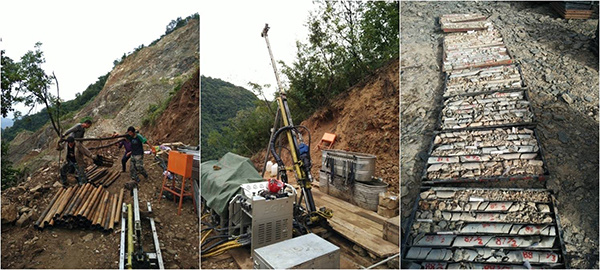

Hanfa has continuously enhanced and upgraded the functions of HFP600 in the drilling projects throughout the years. After various experiments,the HFP600 reached a depth of 750.64 meters. At a poly metallic mining site in Ganluo County, Sichuan Province, the HFP600 successfully went beyond its limit when working on the broken stratum, reaching 124 meters on HQ, 420 meters on NTW and 563.8 meters on BTW.

Based on these continuous experiments and rich experiences, Hanfa optimized its technology and successfully developed the powerful HFP600 Plus hydraulic portable diamond core drill rig - a new generation of 800m-range deep hole drilling rig

Applied projects for HFP600 Plus

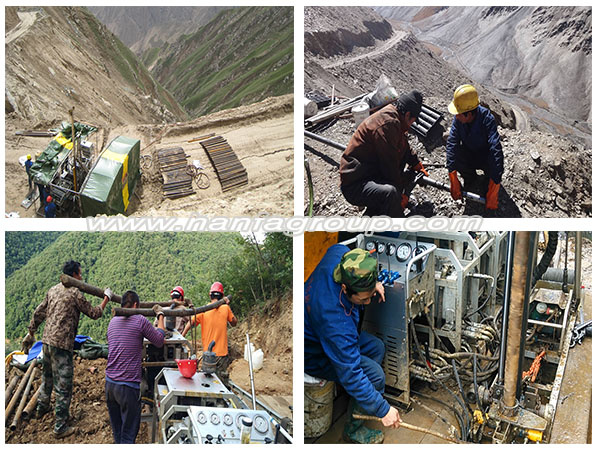

As an enhanced model for HFP600,HFP600 Plus hydraulic portable diamond core drill rig - with the same port ability as the HFP600 - increases the capability by more than 30% and remains the stability and efficiency even when drilling holes with a depth of 600 to 800 meters. It is an ideal machine for difficult deep-hole core drilling projects in hard-to-access areas.

Key characteristics of HFP600 Plus hydraulic portable diamond core drill rig

1.Increased capability 30%

2.Optimized hydraulic system, operationstation, oil tank and modules

3.Improved working area

4.Brand-new rod holder with increased strength,wider applications and easier adjustment

Enhanced adapt ability





Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.

Presently, it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd, Zhengzhou Hanfa Imp & Exp Trading Co., Ltd, HK Hanfa Imp & Exp Trading Co., Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers.

Hanfa Group perennially committed to the development, production and sales of drilling machine, mainly including water well drilling rig, core drill, DTH drill, rotary/piling rig, trenchless centering drill, hydraulic tunnel drilling rig, etc. Hanfa Group send all kinds of drill for the global market, the products are sold to all over the world, exports more than 60 countries and regions, is the leading brand of drilling rig in China. At present, Hanfa Group built Beijing, Tianjin, Shandong, Hubei R&D and manufacturing base.

Hanfa Group always adhere to the "two audit", one is must through the international authoritative certification bodies's audit; The second is needs to be approved by customers and the public. It is also true, Hanfa Group, all kinds of drilling rig, has passed the ISO9001: 2008 and ISO9001: 2000 quality management system, the national military standard GJB9001-2001 and ISO14001-2004 environmental management system and GB/T28001-2001 occupational health and safety management system certification, CE and other international well-known certification bodies audit and certification, obtained the international recognition of authority;

At the same time, the development of the new and old customers, numerous customers from all corners of the world's praise, confirming the quality of Hanfa products is already deeply rooted in the hearts of the people, pass the "audit" of masses of the people. High quality is the the faith and the most basic bottom line of Hanfa Group since it founded twenty years ago. For more than 20 years, the countless praised, care, support have been produced a large web of trust, like the Hanfa's reputation today, global coverage, influence the world.

Hanfa Group do not forget good service while in adhere to the quality. In Hanfa Group, the quality is the root, service is the source. Hanfa Group, after long-term development, formed a very perfect service system, the service system covering the pre-sale, sale, after-sale three important links, fully satisfy the customer service requirements at different times, leave no dead angle of service to the customer. Hanfa Group has a strong service team, including 30 senior engineers, more than 50 technical personnel, hundreds of after-sales service personnel. After many years of accumulation, the service team had rich experience, is the most perfect service industry, service quality of the best team. Hanfa Group, has send technicians abroad to after-sales service more than 20000 times, operation training for more than 10000 times, machine repair about 5000 times...Large and small data, not only explain Hanfa has send thousands of customer operation method, construction technology, drilling technique, machine maintenance knowledge, the fault of the machine function again...But also record with the brilliance of Hanfa's service team, the footprints on the road, confirm the powerful strength and service quality of Hanfa Group.
