Max. Swing Dia. Over Bed:
420mm
Max. Longitudinal Travel:
400/700mm
Center Distance:
500/800mm
Spindle Motor Power:
0.55kw
Spindle Bore:
28mm
Max. Cross Travel:
120mm
Spindle Speed Steps:
6 Setps
Spindle Speed Range:
150~1250rpm
Metric Thread Range:
0.7-4mm
Inch Thread Range:
4-30tpi
Type:
Horizontal Lathe
Power Source:
Electric
Controlling Mode:
Artificial
Automatic Grade:
Semiautomatic
Setting Mode:
Floor-type
Precision:
High Precision
Processing Accessory:
Chuck
Tool Holder:
Chuck
Product Description

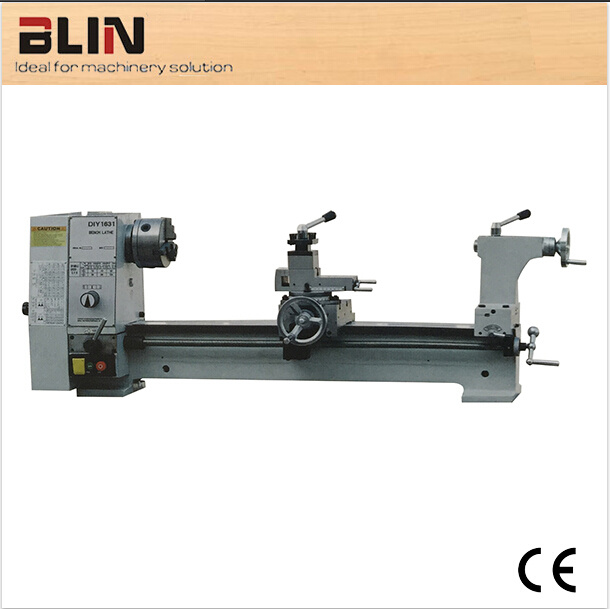

Precision Instrument Lathe(BL-DIY1619AN/1631AN)
Specification:
Item
Unit
BL-DIY1619AN/1631AN
Max. swing dia. Over bed
mm
Φ420
Center distance
mm
500/800
Max. longitudinal travel
mm
400/700
Max. cross travel
mm
120
Spindle taper
/
MT4#
Spindle bore
mm
Φ28
Spindle speed steps
/
6
Spindle speed range
rpm
150~1250
Metric thread range
mm
0.7~4
Inch thread range
TPI
4~30
Longitudinal auto-feeding
mm/r
0.088~0.55
Cross auto-feeding
mm/r
0.088~0.55
Motor power
kw
0.55
N.W./G.W
kg
180/215,195/235
Standard Accessories: Change gears Tool post wrench Allen wrench 3-jaw chuck and wrench
Optional Accessories: Machine stand Follow Rest Steady rest 4-jaw chuck Lathe tools Face plate Back plate Leadscrew guard Tool post guard Chuck guard

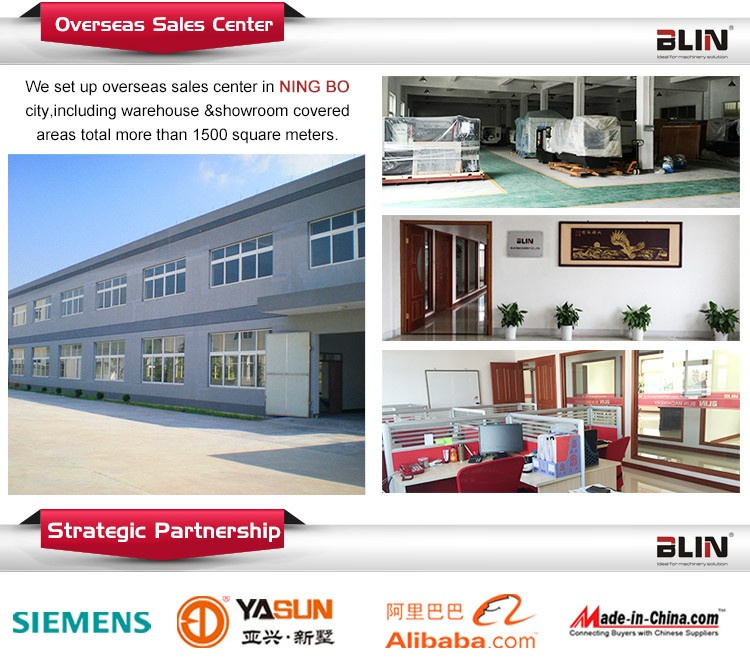

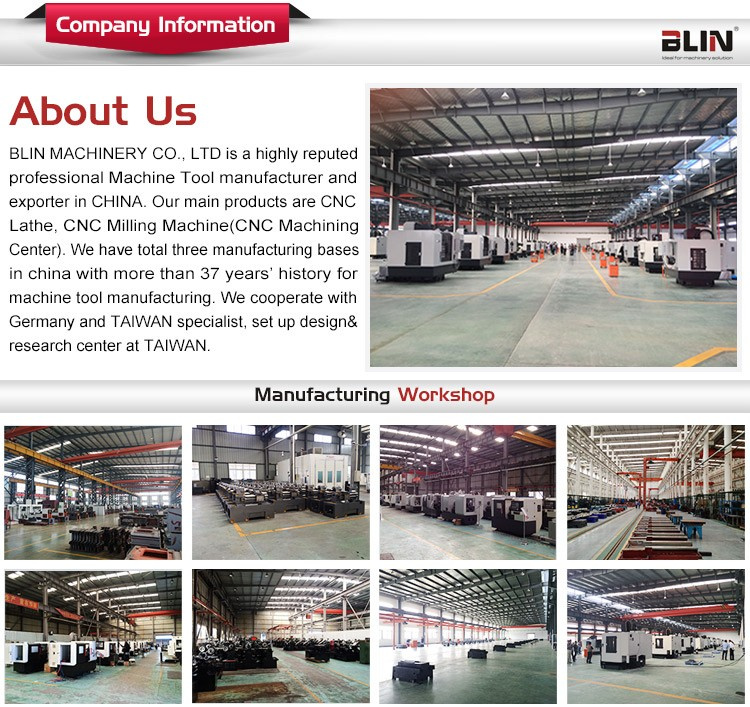

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

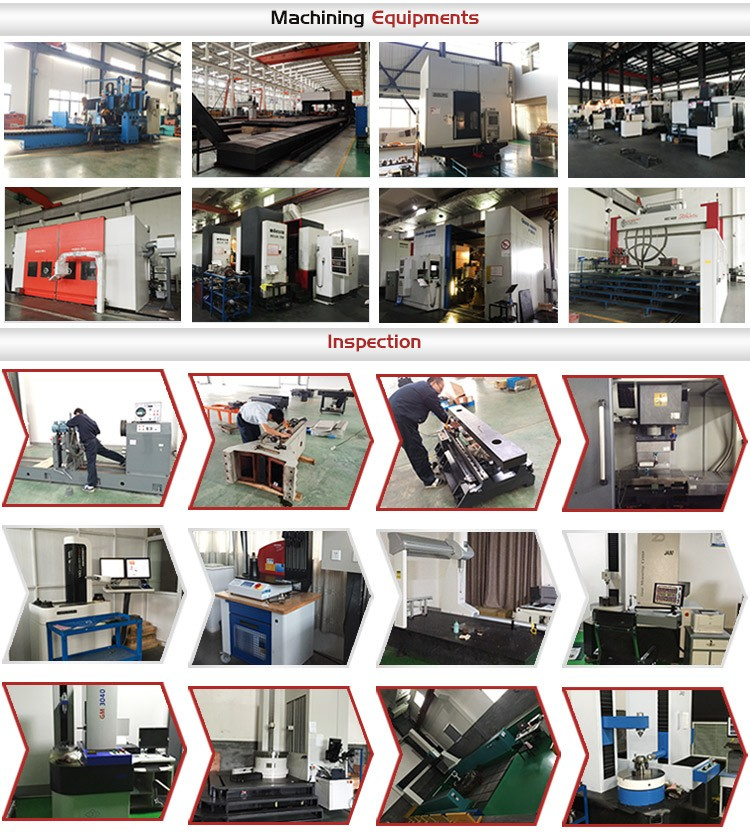

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
