| Prod Model: |
FOH-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Fiber Optic Closure |
| Model: |
Foh-E |
| Capacity: |
12-96 Fiber |
| Material: |
Plastic ABS |
| Fosc Cable Diameter: |
Max 14mm |
| Colar: |
Black |
| Lead Time: |
7 Days |
| MOQ: |
1 PCS |
| Brand: |
Softel or OEM |
| Size: |
280X200X90mm |
| Type: |
Optical Fiber Distribution Box |
| Certification: |
CE |
| Condition: |
New |
| Wiring Devices: |
Fiber Optic Closure |
Product Description

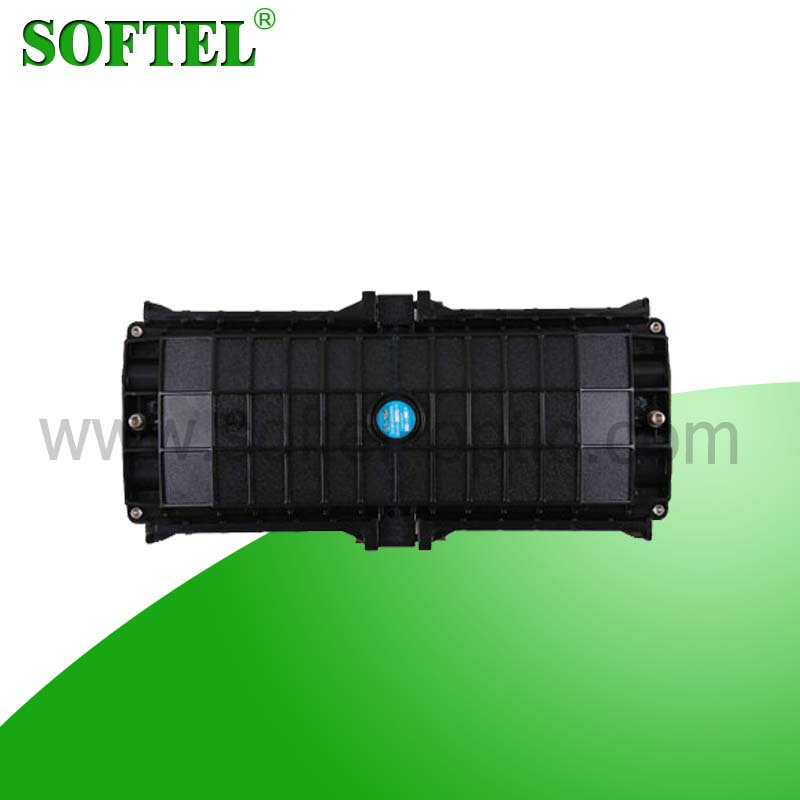

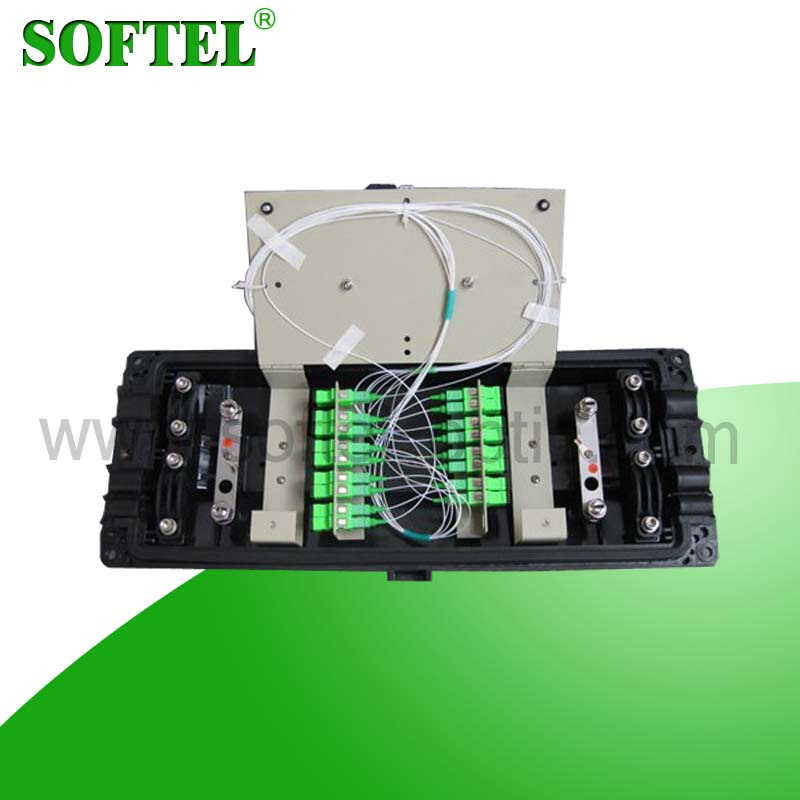

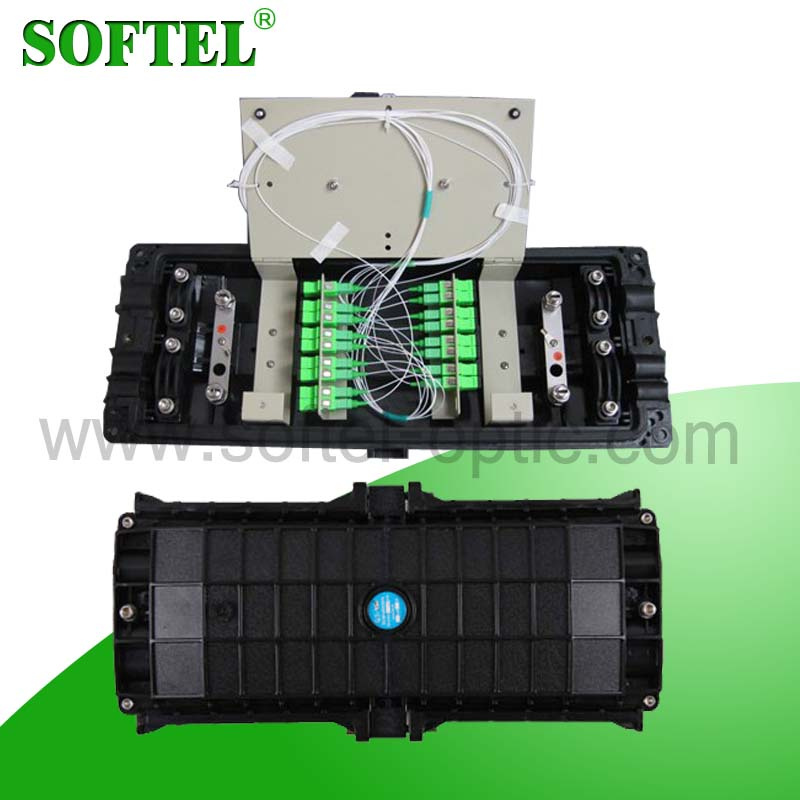

New Arrival economic fiber optic closure
L× W× H: 280× 200× 90MM Cable ports: 2-4 ports Cable Diameter: Max φ 14 Max. Capacity (bunchy fiber): 96 Holds up to 96 fibers. Core capacity per tray: 12 or 24 Easy to re-enter Cable entry/exit ports Pressure testing valve and earth deriving device Intergrated seal, air tight and water proof Ideal for cable repair RoHS compliant Can be used in through, ODF fiber optic terminal cabinet branch or mid span splice locations Suitable for aerial, underground duct or direct burial applications
Specification
FOH-E-XX provides one set of elastic seal fitting with 2 inlet/outletΦ 14mm ports(if required, the sealing fittings with 4 Φ 12 ports or 3 ports with a Φ 14port and 2 Φ 12 ports also provided). The necessary port plugs should be taken out.
The installation accessories: Seal tape, insulation tape, 1piece of special wrenches, hanging hook, abrasive cloth, earthing wire, nylon tie, labeling paper, measuring paper, desiccant.
Accessories for customers' selection: Buffer tube for bunchy fiber, aerial mounting bracket or wall mounting bracket.
| Model No. | Size | Cable ports | Cable diameter | capacity(bunchy) | No. of trays |
| FOH-E-12 | 280X200X90 | 2 | Φ12(Max.) | 12 | 1 |
| FOH-E-24 | 280X200X90 | 2 | Φ14(Max.) | 24 | 2(12fibes) or 1(24fibes) |
| FOH-E-36 | 280X200X90 | 2 | Φ14(Max.) | 36 | 3(12fibes) or 2(24fibes) |
| FOH-E-48 | 280X200X90 | 2 | Φ14(Max.) | 48 | 4(12fibes) or 2(24fibes) |
| FOH-E-60 | 280X200X90 | 2 | Φ14(Max.) | 60 | 3(24fibes) |
| FOH-E-72 | 280X200X90 | 2 | Φ14(Max.) | 72 | 3(24fibes) |
| FOH-E-84 | 280X200X90 | 2 | Φ14(Max.) | 84 | 4(24fibes) |
| FOH-E-96 | 280X200X90 | 2 | Φ14(Max.) | 96 | 4(24fibes) |
