| Price: | US $ 1.3-1.5/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Quick Coupling Pipe Fittings |
|---|
JIC NPT SAE hydraulic fittings
Straights:
1.Male O-Ring Boss to Female Pipe NPTF | 4.Male JIC 37° Flare on Run to Male JIC 37° |
2.Male O-Ring Boss to Female Pipe Swivel NPTF | 5.Male JIC 37° Flare to Female JIC 37° Flare |
3.Male JIC 37° Flare on Run to Female JIC 37° | 6.O-Rings for Straight Thread Boss Fittings |
45°or90°elbows:
1.Female JIC 37° Flare Swivel to Male Pipe NPTF - 90° | 4.Male Pipe NPTF to Female Pipe NPTF - Brass - 90° |
2.Male JIC 37° Flare to Male Pipe NPTF - 45° | 5.Male JIC 37° Flare to Female JIC 37° Flare Swivel - 45° |
3.Male O-Ring Boss to Male JIC 37° Flare - 90° | 6.Male SAE 45° Flare to Male Pipe NPTF - Brass - 45° |
Tees,cross,caps and plugs:
1.Female JIC 37° Flare Cap | 4.Male JIC 37° Flare on Run to Male O-Ring Boss - Tee |
2.Male JIC 37° Flare Plug | 5.Male JIC 37° Flare - Tee |
3.Male JIC 37° Flare on Run to Male Pipe NPTF - Tee | 6.Tube Sleeve Nut |
BSP METRIC JIS DIN hydraulic fittings
Straights:
1.Male British Standard Pipe Parallel to Female Pipe | 4.O-Rings for DIN Light Series |
2.Female British Standard Pipe Parallel to Female NPTF | 5.Female British Standard Pipe Parallel Swivel |
3.Male Metric O-Ring Plug | 6.Male Metric with O-Ring to Male JIC 37° Flare |
45°or 90°elbows:
1.Male Metric with O-Ring to Male JIC 37° Flare - 90° |
2.Male British Standard Pipe Parallel with O-Ring to Male Flat-Face O-Ring - 45° |
3.Male British Standard Pipe Tapered Thread toMale JIC 37° Flare - 90° |
Tees,cross,caps and plugs
1.Male Komatsu to Female Komatsu to Male Komatsu - Tee |
2.Female DIN 24° Cone - Light Series Cap |
3Male British Standard Pipe Parallel Plug |

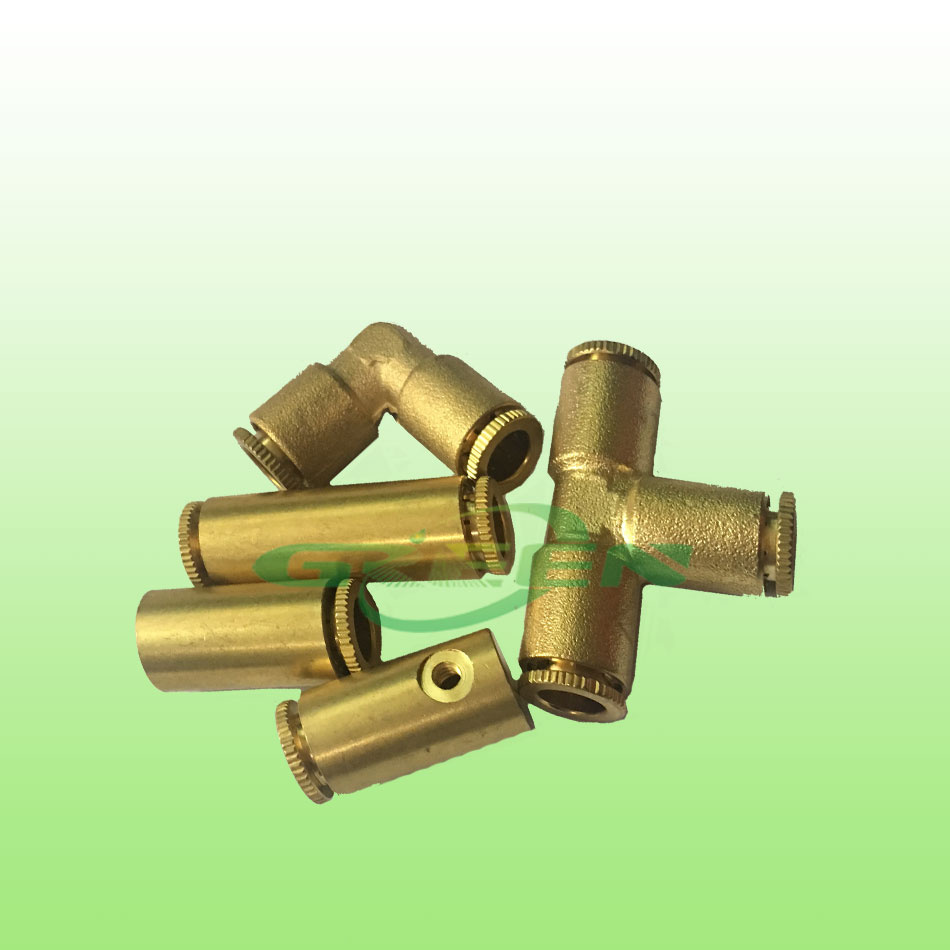

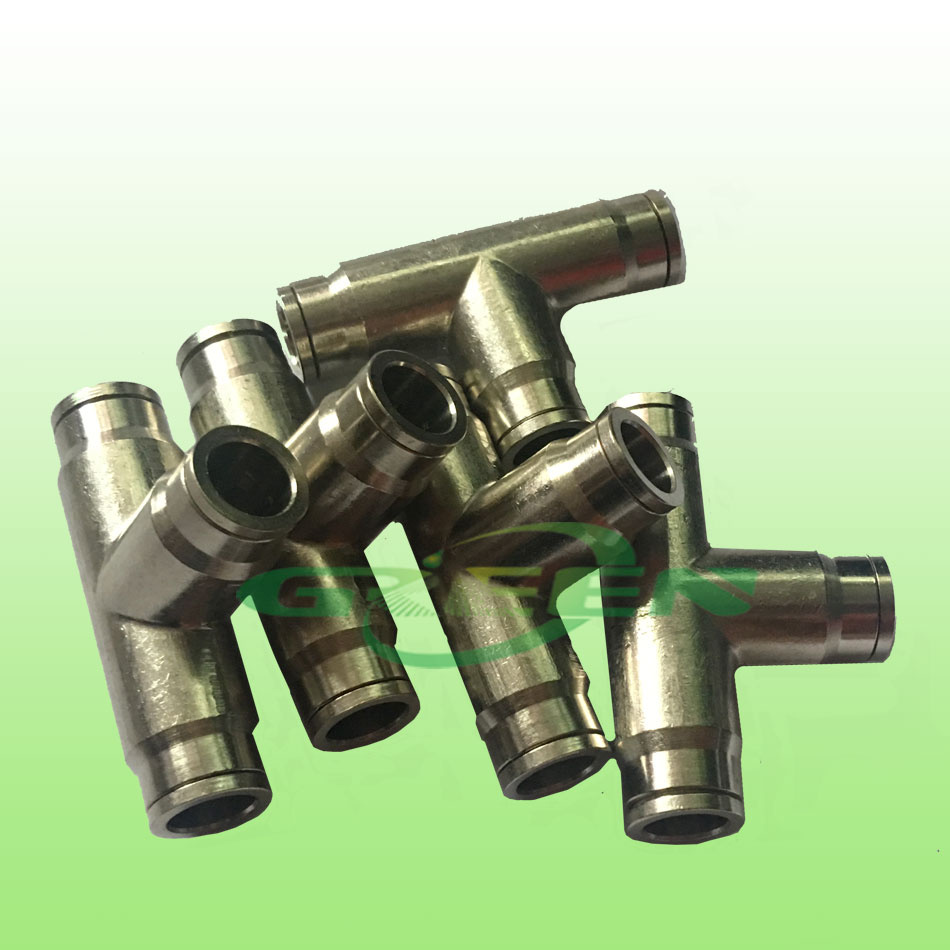

Performance for New Design Quick Coupling Slip Lock Three Way Pipe Fittings:
1. Hydraulic proof pressure test (1.5 times the maximum permissible working pressure):no leakage
2.Dismantling and reassembly test (dismantle ten times): no leakage.
3.Minimum hydrostatic pressure test (four times the maximum permissible ambient pressure rating): no leakage
4.Vacuum test (1*10-4 mbar or greater):the leak rate less than 1*10-8 mbar 1/s
5.Maximum static gas pressure test (with nitrogen gas to 150% of pressure rating):no visible bubbles.
6.Hydraulic impulse and vibration test (the pressure impulses at between 0.5Hz and 1.7Hz and vibration at between 23Hz and 47Hz): no leakage.
7.Thermal cycle test (ambient to +80°C and then to -25°C with a hydrostatic pressure):no evidence of leakage.
8.Pneumatic pressure vibration test (the frequency of vibration shall be set at 45Hz and complete 20*106cycles): without failure.
9.Fire test (in accordance with BS ISO 19921): no leakage.
10.Corrosion resistance test (the duration of exposure at least 168h): no visible evidence of corrosion)
11.Dee water submersion test (equivalent to 3048m sea water): no helium
| 1.Material: | Brass ,Carbon Steel ,SS303,SS304 SS316, 316L etc. |
| 2.Size: | 1/2" NPT/BSPT/BSPP, or as your request. |
| 3.Processing | Precision casting ,Forged,CNC machining ,Surface treatment. |
| 4.Surface treatment: | Polishing ,Zinc plated ,Electrolytic , |
| 5.Sample Time/charge: | (1) 3-5days----For customized. (2) 1day----For existing. as your design |
| 6.OEM ODM Accepted: | Yes |
| 7.Production Capacity: | 30,000pcs Per month. |
| 8.Payment Term: | L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM |
| 9.Standard: | JIC/BSP/NPT/BSPT/SAE/Metric and etc. |
1.You will get competitive factory prices basis on the quality assurance.
Win-win and long time friendly cooperation is our permanent target , customers' win first then we can be win ,so our tenet is: customers is utmost ,we support 100% factory prices and 100% quality assurance .
2.We can design and customize according to customer's actual application,and goods can be customer's brand as requirements.
3.Except competitive prices ,excellent services is our big advantage.Think of all the question stand of customer's point of view. We have strong sales team,have a very quick reply within 6hours.
and our sales person have big pentence and strong responsibility to customers.
4.Samples can be free .Business relationship start from small samples ,so we would like to provide free samples for customer test first .
The problems you will concerned:
1.How to order & How to Pay?
Contact us at any time when you are interesting in our product ,then our sales will advise how to order and how to pay.
2.How Long & How to deliver?
items in stock, after getting your payment,1-2days we can send it out; for the customizing goods ,the delivery time according to production technological process ,timely and fast delivery time is also our advantage as we have highly effecient production ability .
Shipping details : If by express, such as DHL/Fedex/UPS, transportation time about 3-5workdays, if by sea, transportation time about 1month.
3.Good or Money can be returned?
Yes, if the goods be demaged or lost or not your size,or other reasonable reasons,can be returned.
4.Do you have a quality guarantee or warranty?
Yes, all our products have a 12-month warranty basic on normal environment. if you need other guarantees,we can discuss to reach an mutual agreement.
